NONLINEAR ANALYSIS OF PLASMA DYNAMICAL CHAOTIC SYSTEM: HIDDEN MULTISTABILITY WITH CIRCUIT IMPLEMENTATION
-
Abstract
In this article, we introduce hidden multistability in plasma dynamical chaotic system with coexisting hidden and self-excited attractors. Plasma is the branch of physics that is the result of nonlinear oscillation, instability, and turbulence of particle interaction and scattering waves. The multistability in the plasma dynamical chaotic system is due to the radio-frequency oscillation of an electron gas and the excitation of a radioactive oscillation of the ion-acoustic wave. The plasma dynamical chaotic system is constructed by the amplitude of these oscillations, which exhibits chaos for particular values of parameters. Hidden multistability is investigated and confirmed in the plasma dynamical chaotic system with five major analytical tools, such as parameter constraints, basin of attraction, bifurcation diagram, Lyapunov exponents, and Poincaré section. Moreover, by utilizing the Multisim we have done a circuit implementation and subsequently validated the mathematical model. The findings of this study will provide helpful insight into the plasma dynamical chaotic system in targeting multi-stability and chaos.
-
Keywords:
- Hidden multistability /
- chaos /
- bifurcation /
- Poincaré map /
- basin of attraction /
- Lyapunov exponents /
- chaotic circuit
-
-
References
[1] M. Aqeel and S. Ahmad, Analytical and numerical study of Hopf bifurcation scenario for a three-dimensional chaotic system, Nonlinear Dynamics, 2016, 84(2), 755–765. doi: 10.1007/s11071-015-2525-z [2] M. Aqeel, A. Azam and J. Ayub, Control of chaos in krause and roberts geomagnetic chaotic system, Chinese Journal of Physics, 2022, 77, 1331–1341. doi: 10.1016/j.cjph.2022.03.042 [3] J. Ayub, M. Aqeel, J. N. Abbasi, et al., Switching of behavior: From hyperchaotic to controlled magnetoconvection model, AIP Advances, 2019, 9(12). [4] J. Ayub, M. Aqeel, S. Ahmad and Z. Rana, Absolute control of chaotic responses in robbins disc dynamo, The European Physical Journal Plus, 2020, 135, 1–15. [5] J. Ayub, M. Aqeel, S. Ahmad and Z. Rana, Absolute control of chaotic responses in robbins disc dynamo, The European Physical Journal Plus, 2020, 135, 1–15. [6] J. Ayub, M. Aqeel and D. A. Sunny, A new hyperchaotic system with hopf bifurcation and its boundedness: Infinite coexisting hidden and self-excited attractor, Soft Computing, 2023, 27(2), 887–901. doi: 10.1007/s00500-022-07608-5 [7] Ü. Çavuşoǧlu, Y. Uyaroǧlu and İ. Pehlivan, Design of a continuous-time autonomous chaotic circuit and application of signal masking, 2014. [8] C.-Y. Cheng, K.-H. Lin and C.-W. Shih, Multistability in recurrent neural networks, SIAM Journal on Applied Mathematics, 2006, 66(4), 1301–1320. doi: 10.1137/050632440 [9] S. Çiçek, Y. Uyaroǧlu and İ. Pehlivan, Simulation and circuit implementation of Sprott Case H chaotic system and its synchronization application for secure communication systems, Journal of Circuits, Systems and Computers, 2013, 22(04), 1350022. doi: 10.1142/S0218126613500229 [10] H. Abdel-Gawad, B. Abdel-Aziz and M. Tantawy, Extended center manifold, global bifurcation and approximate solutions of chen chaotic dynamical system, Journal of Applied Analysis & Computation, 2024, 14(4), 2125–2139. [11] R. Gholipour, A. Khosravi and H. Mojallali, Multi-objective optimal backstepping controller design for chaos control in a rod-type plasma torch system using Bees algorithm, Applied Mathematical Modelling, 2015, 39(15), 4432–4444. doi: 10.1016/j.apm.2014.12.049 [12] C. Grebogi, E. Ott and J. A. Yorke, Critical exponent of chaotic transients in nonlinear dynamical systems, Physical Review Letters, 1986, 57(11), 1284. doi: 10.1103/PhysRevLett.57.1284 [13] L. Grüne, Attraction rates, robustness, and discretization of attractors, SIAM Journal on Numerical Analysis, 2003, 41(6), 2096–2113. doi: 10.1137/S003614290139411X [14] E. Hairer, C. Lubich and G. Wanner, Geometric numerical integration illustrated by the Störmer–Verlet method, Acta Numerica, 2003, 12, 399–450. doi: 10.1017/S0962492902000144 [15] E. Hairer, C. Lubich and G. Wanner, Geometric Numerical Integration: Structure-Preserving Algorithms for Ordinary Differential Equations, 2nd Edn, Springer, Berlin, Heidelberg, 2006. [16] E. Hairer, S. P. Nørsett and G. Wanner, Solving Ordinary Differential Equations Ⅰ: Nonstiff Problems, 2nd Edn, Springer, Berlin, Heidelberg, 1993. [17] A. T. Hill and E. Süli, Set convergence for discretizations of the attractor, IMA Journal of Numerical Analysis, 1996, 16(2), 289–296. doi: 10.1093/imanum/16.2.289 [18] P. Jin, G. Wang, H. H.-C. Iu and T. Fernando, A locally active memristor and its application in a chaotic circuit, IEEE Transactions on Circuits and Systems II: Express Briefs, 2017, 65(2), 246–250. [19] L. P. Karakatsanis, G. P. Pavlos and M. N. Xenakis, Tsallis non-extensive statistics, intermittent turbulence, soc and chaos in the solar plasma. part two: Solar flares dynamics, Physica A: Statistical Mechanics and its Applications, 2013, 392(18), 3920–3944. doi: 10.1016/j.physa.2013.05.010 [20] A. Karimov, V. Rybin, D. Butusov, et al., Extremely multistable matryoshka systems with hidden attractors, Chaos: An Interdisciplinary Journal of Nonlinear Science, 2025, 35(12). [21] T. Karimov, V. Rybin, G. Kolev, et al., Chaotic communication system with symmetry-based modulation, Applied Sciences, 2021, 11(8), 3698. doi: 10.3390/app11083698 [22] M. A. Khan, J. Ghosh and S. D. Jabeen, Extreme multistability of different order chaotic systems: Discrete and continuous: M. A. Khan et al. , Indian Journal of Physics, 2025, 99(11), 4339–4348. doi: 10.1007/s12648-025-03608-x [23] N. Kuznetsov, T. Mokaev, V. Ponomarenko, et al., Hidden attractors in chua circuit: Mathematical theory meets physical experiments, Nonlinear Dynamics, 2023, 111(6), 5859–5887. doi: 10.1007/s11071-022-08078-y [24] Y. A. Kuznetsov, Elements of Applied Bifurcation Theory, 2nd Edn, Springer, New York, 1998. [25] Y. Li, C. Dong and H. Li, Design, dynamic analysis, and application of a novel four-dimensional memristor-based chaotic system with hidden attractors, Physica Scripta, 2025, 100(4), 045231. doi: 10.1088/1402-4896/adbd8a [26] H. Lin, C. Wang and Y. Tan, Hidden extreme multistability with hyperchaos and transient chaos in a hopfield neural network affected by electromagnetic radiation, Nonlinear Dynamics, 2020, 99(3), 2369–2386. doi: 10.1007/s11071-019-05408-5 [27] J. Lu, F. Min, L. Gan and W. Zhu, Extreme multistability and complex bifurcation routes in a memristive hopfield neural network: J. Lu et al. , Nonlinear Dynamics, 2025, 113(16), 21951–21969. doi: 10.1007/s11071-025-11283-0 [28] B. A. Mezatio, M. T. Motchongom, B. R. W. Tekam, et al., A novel memristive 6d hyperchaotic autonomous system with hidden extreme multistability, Chaos, Solitons & Fractals, 2019, 120, 100–115. [29] L. W. Nagel, Spice2: A computer program to simulate semiconductor circuits, College of Engineering, University of California, Berkeley, 1975. [30] S. Neukirch, Integrals of motion and semipermeable surfaces to bound the amplitude of a plasma instability, Physical Review E, 2001, 63(3), 036202. doi: 10.1103/PhysRevE.63.036202 [31] Z. T. Njitacke, S. D. Isaac, T. Nestor and J. Kengne, Window of multistability and its control in a simple 3D Hopfield neural network: Application to biomedical image encryption, Neural Computing and Applications, 2021, 33, 6733–6752. doi: 10.1007/s00521-020-05451-z [32] V. Y. Ostrovskii, V. G. Rybin, A. I. Karimov and D. N. Butusov, Inducing multistability in discrete chaotic systems using numerical integration with variable symmetry, Chaos, Solitons & Fractals, 2022, 165, 112794. [33] E. Ott, Chaos in Dynamical Systems, 2nd Edn, Cambridge University Press, Cambridge, 2002. [34] A. Pikovskiǐ, M. Rabinovich and V. Y. Trakhtengerts, Onset of stochasticity in decay confinement of parametric instability, Soviet Journal of Experimental and Theoretical Physics, 1978, 47, 715. [35] Z. Rana, M. Aqeel, J. Ayub and M. Shaukat, Control of chaos in thermal convection loop by state space linearization, Chinese Journal of Physics, 2019, 58, 166–178. doi: 10.1016/j.cjph.2019.01.003 [36] V. Rybin, I. Babkin, Y. Bobrova, et al., Variable-step semi-implicit solver with adjustable symmetry and its application for chaos-based communication, Mathematics, 2025, 13(8), 1229. doi: 10.3390/math13081229 [37] V. Rybin, D. Butusov, I. Babkin, et al., Some properties of a discrete lorenz system obtained by variable midpoint method and its application to chaotic signal modulation, International Journal of Bifurcation and Chaos, 2024, 34(01), 2450009. doi: 10.1142/S0218127424500093 [38] P. So, T. B. Luke and E. Barreto, Networks of theta neurons with time-varying excitability: Macroscopic chaos, multistability, and final-state uncertainty, Physica D: Nonlinear Phenomena, 2014, 267, 16–26. doi: 10.1016/j.physd.2013.04.009 [39] S. El-Tantawy, Nonlinear dynamics of soliton collisions in electronegative plasmas: The phase shifts of the planar kdv-and mkdv-soliton collisions, Chaos, Solitons & Fractals, 2016, 93, 162–168. [40] N. Tsafack, J. Kengne, B. Abd-El-Atty, et al., Design and implementation of a simple dynamical 4-D chaotic circuit with applications in image encryption, Information Sciences, 2020, 515, 191–217. doi: 10.1016/j.ins.2019.10.070 [41] P. W. Tuinenga, SPICE: A Guide to Circuit Simulation and Analysis Using PSpice, Prentice Hall PTR, Englewood Cliffs, NJ, 1988. [42] J. Vlach and K. Singhal, Computer Methods for Circuit Analysis and Design, Springer Science & Business Media, New York, 1983. [43] F. Zhang and F. Xu, Dynamical behavior of the generalized complex Lorenz chaotic system, J. Appl. Anal. Comp, 2024, 14(4), 1915–1931. -
-
Figures(15) / Tables(1)
Export File
Citation
Xinwang Liu, Javeria Ayub, Muhammad Aqeel, Umer Farooq. NONLINEAR ANALYSIS OF PLASMA DYNAMICAL CHAOTIC SYSTEM: HIDDEN MULTISTABILITY WITH CIRCUIT IMPLEMENTATION[J]. Journal of Applied Analysis & Computation, 2027, 17(2): 1514-1530. doi: 10.11948/20260025
Format
Content
DownLoad:
-

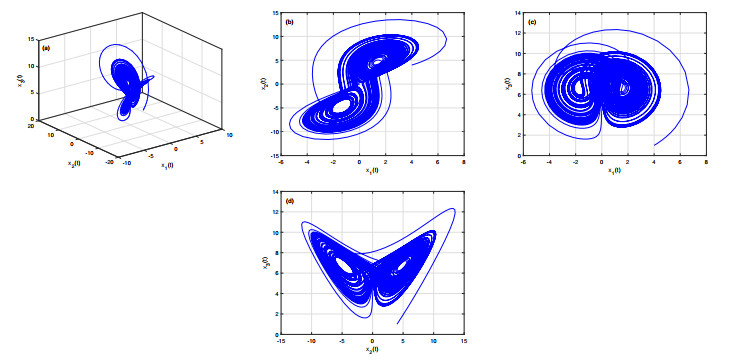

Figure 1.
Plasma chaotic attractor with the initial condition
$ (x_{1}, x_{2}, x_{3}) = (4, 4, 1) $ $ \alpha=7 $ $ \beta = 1 $ $ \gamma = 4 $ $ x_{1}x_{2}x_{3} $ $ x_{1}x_{2} $ $ x_{1}x_{3} $ $ x_{2}x_{3} $ -

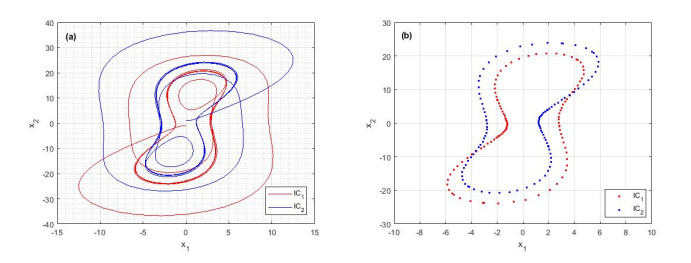

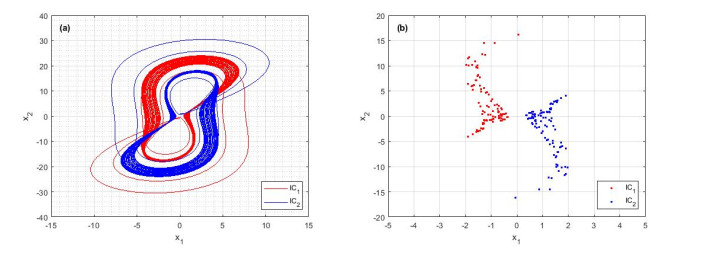

Figure 2.

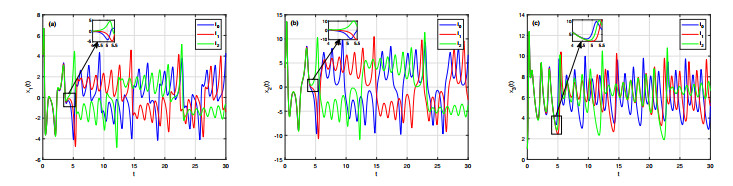

Plasma chaotic attractor with the initial conditions
$ I_{0}(x_{1}, x_{2}, x_{3}) = (4, 4, 1) $ $ I_{1}(x_{1}, x_{2}, x_{3}) = (4.05, 4, 1) $ $ I_{2}(x_{1}, x_{2}, x_{3}) = (4.10, 4, 1) $ $ \alpha=7 $ $ \beta = 1 $ $ \gamma = 4 $ $ x_{1} $ $ x_{2} $ $ x_{3} $ -
Figure 3.

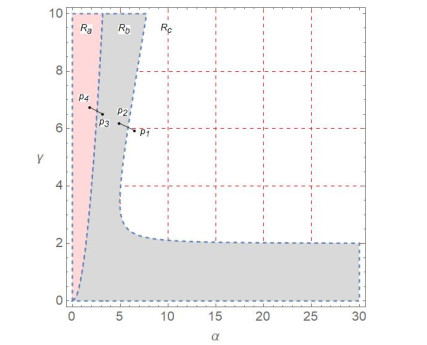

Parametric constraints representation of Plasma chaotic system (2.1),
$ (\alpha, \gamma) $ $ \beta=1 $ $ p_{1} $ $ p_{2} $ $ p_{3} $ $ p_{4} $ -
Figure 4.

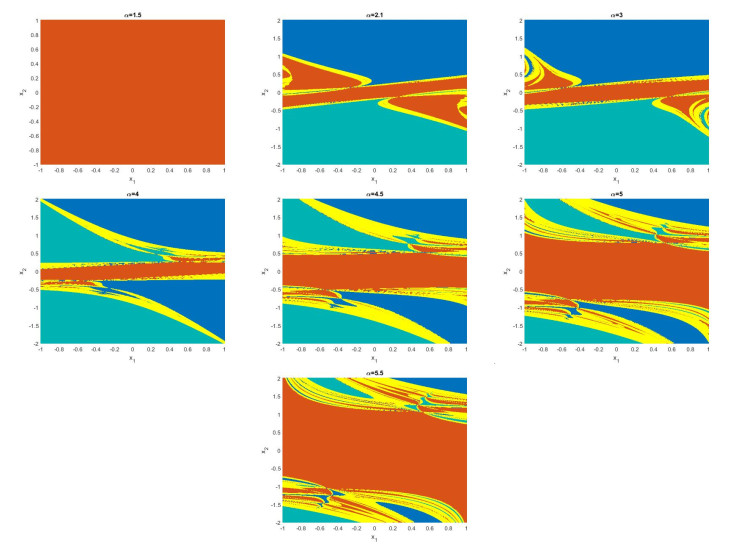

Basin of attraction in two-dimensional cross-section
$ x_{1}x_{2}- $ $ x_{3}=3 $ $ \alpha $ $ \beta=1 $ $ \gamma=4 $ -
Figure 5.

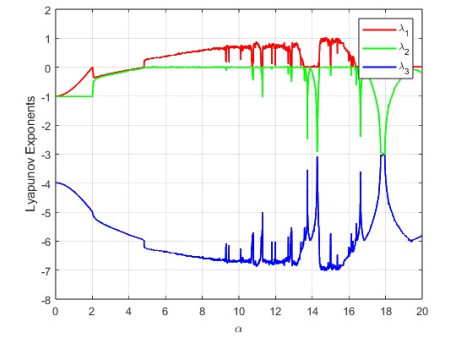

Lyapunov exponents with the initial condition
$ (x_{1}, x_{2}, x_{3}) = (4, 4, 1) $ $ \alpha $ $ \beta=1 $ $ \gamma=4 $ -
Figure 6.

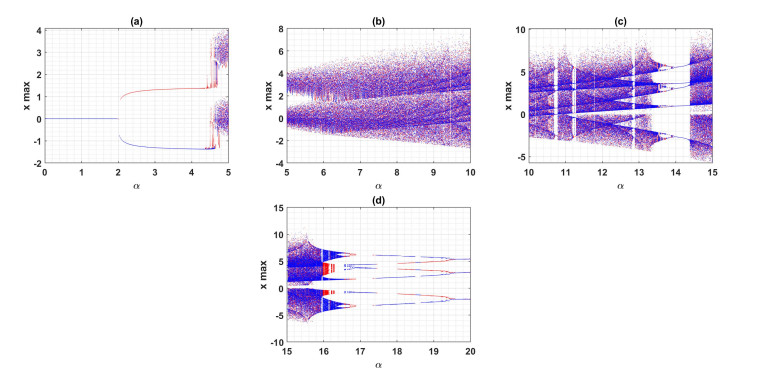

Multi-stability in subfigures of bifurcation diagram with the variation of
$ \alpha $ $ \beta=1 $ $ \gamma=4 $ $ I_{0}(x_{1}, x_{2}, x_{3}) = (0.1, 0.1, 0.1) $ $ I_{1}(x_{1}, x_{2}, x_{3}) = (-1, 0, -1) $ -
Figure 7.

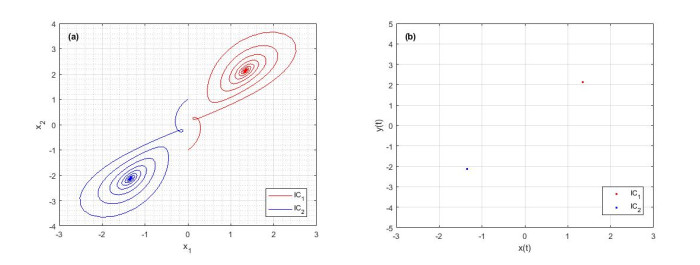

(Case01:
$ 2\leq\alpha\leq4.5 $ $ \alpha=3 $ $ \beta=1 $ $ \gamma=4 $ $ x_{1}x_{2} $ -
Figure 8.
(Case02:
$ 16\leq\alpha\leq17 $ $ \alpha=16.2 $ $ \beta=1 $ $ \gamma=4 $ $ x_{1}x_{2} $ -
Figure 9.
(Case03:
$ 18\leq\alpha\leq19 $ $ \alpha=18.5 $ $ \beta=1 $ $ \gamma=4 $ $ x_{1}x_{2} $ -
Figure 10.

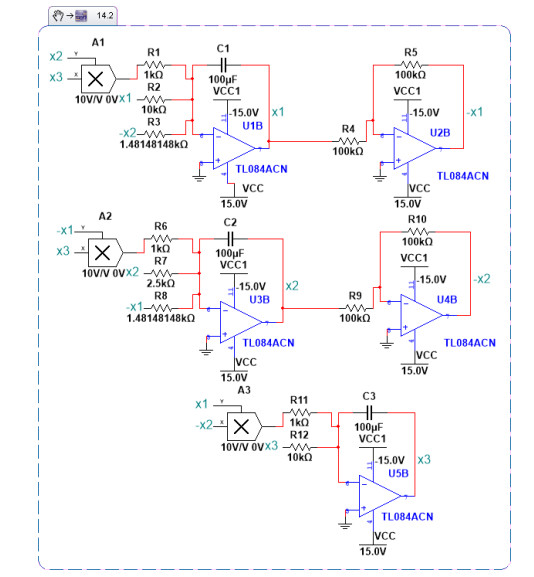

Circuit design of plasma dynamical chaotic system on Multisim 14.2, for
$ \beta=1 $ $ \gamma=4 $ $ \alpha=6.75 $ -
Figure 11.

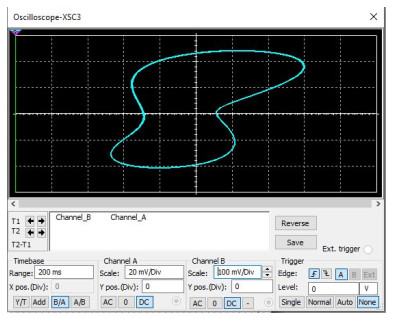

Simulation results of circuit design in Figure 10, in
$ x_{1}x_{2}- $ $ \beta=1 $ $ \gamma=4 $ $ \alpha=6.75 $ -
Figure 12.

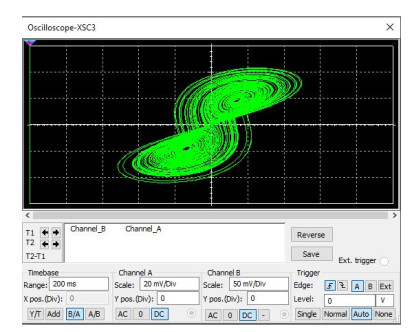

Simulation results of circuit design in Figure 10, in
$ x_{2}x_{3}- $ $ \beta=1 $ $ \gamma=4 $ $ \alpha=6.75 $ -
Figure 13.
Simulation results of circuit design in Figure 10, in
$ x_{1}x_{3}- $ $ \beta=1 $ $ \gamma=4 $ $ \alpha=6.75 $ -

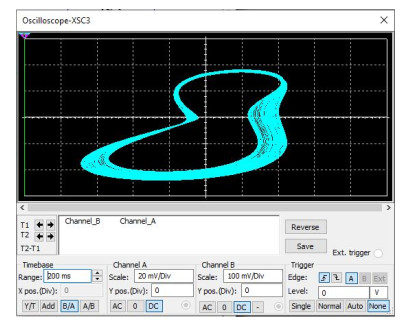

Figure 14.

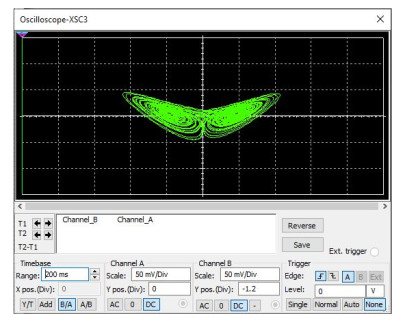

Simulation results of circuit design in Figure 10, in
$ x_{1}x_{2}- $ $ \beta=1 $ $ \gamma=4 $ $ \alpha=16.2 $ -
Figure 15.

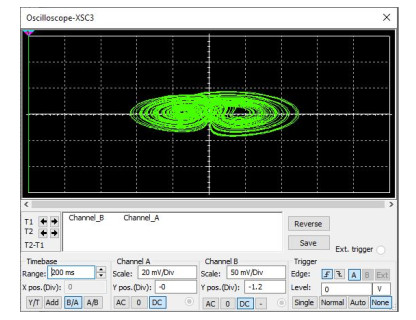

Simulation results of circuit design in Figure 10, in
$ x_{1}x_{2}- $ $ \beta=1 $ $ \gamma=4 $ $ \alpha=18.5 $
