| Citation: |
E. Takoutsing, S. Bowong, D. Yemele, A. Temgoua. DYNAMICS OF AN INTRA-HOST MODEL OF MALARIA WITH A CONSTANT DRUG EFFICIENCY[J]. Journal of Applied Analysis & Computation, 2019, 9(6): 2037-2069. doi: 10.11948/20160266
|
DYNAMICS OF AN INTRA-HOST MODEL OF MALARIA WITH A CONSTANT DRUG EFFICIENCY
-
Abstract
In this paper, we investigate the dynamics of an intra-host model of malaria with logistic red blood growth, treatment and immune response. We provide a theoretical study of the model. We derive the basic reproduction number $\mathcal R_f$ which determines the extinction and the persistence of malaria within the body of a host. We compute equilibria and study their stability. More precisely, we show that there exists a threshold parameter $\zeta$ such that if $\mathcal R_f\leq\zeta\leq1$, the disease-free equilibrium is globally asymptotically stable. However, if $\mathcal R_f>1$, there exist two malaria infection equilibria which are locally asymptotically stable: one malaria infection equilibrium without immune response and one malaria infection equilibrium with immune response. The sensitivity analysis of the model has been performed in order to determine the impact of related parameters on outbreak severity. The theory is supported by numerical simulations. We also derive a spatio-temporal model, using Diffusion-Reaction equations to model parasites dispersal. Finally, we provide numerical simulations for parasites spreading, and test different treatment scenarios.-
Keywords:
- Malaria /
- intra-host models /
- drug efficiency /
- stability /
- sensitivity analysis
-
-
References
[1] Z. Agur, D. Abiri, L. H. Van der Ploeg, Ordered appearance of antigenic variants of African trypanosomes explained in a mathematical model based on a stochastic switch process and immune-selection against putative switch intermediates, Proceedings of the Nat. Acad. of Sci., 1989, 86(23), 9626-9630. doi: 10.1073/pnas.86.23.9626 [2] R. M. Anderson, R. M. May, S. Gupta, Non-linear phenomena in host parasite interactions, Parasitology, 1989, 99(S1), S59-S79. doi: 10.1017/S0031182000083426 [3] A. Bertoletti, A. J. Gehring, The immune response during hepatitis B virus infection, J. of Gen. Virol., 2006, 1439-1449. [4] C. Boudin, V. Robert, Plasmodium falciparum: epidemiometrie de la transmission homme-moustique et de l'infection chez le vecteur, Bull Soc Pathol Exot, 2003, 96(4), 335-340. [5] G. Birkhoff, G. Rota, Ordinary differential equations, Wiley, 1989, 4th ed. [6] C. Castillo-Chavez, B. Song, Dynamical models of tuberculosis and their applications, Math. biosc. and engineering, 2004, 1(2), 361-404. doi: 10.3934/mbe.2004.1.361 [7] F. V. Chisari, M. Isogawa, S. F. Wieland, Pathogenesis of hepatitis B virus infection, Pathologie Biologie, 2010, 58(4), 258-266. doi: 10.1016/j.patbio.2009.11.001 [8] C. Chiyaka, W. Garira, S. Dube, Modelling immune response and drug therapy in human malaria infection, Comput. and Math. Methods in Medicine, 2008, 9(2), 143-163. doi: 10.1080/17486700701865661 [9] R. J. De Boer, A. S. Perelson, Towards a general function describing T cell proliferation, J of theo. biology, 1995, 175(4), 567-576. doi: 10.1006/jtbi.1995.0165 [10] H. Diebner, M. Eichner, L. Molineaux, W. E. Collins, G. M. Jeffery, K. Dietz, Modelling the transition of asexual blood stages of Plasmodium falciparum to gametocytes, J. of Theo. Biology, 2000, 202(2), 113-127. doi: 10.1006/jtbi.1999.1041 [11] C. F. Huang, S. S. Lin, Y. C. Ho, F. L. Chen, C. C. Yang, The immune response induced by hepatitis B virus principal antigens, Cell Mol Immunol, 2006, 97-106. [12] J. A. P. Heesterbeek, Mathematical epidemiology of infectious diseases: model building, analysis and interpretation, John Wiley & Sons, 2000, Vol. 5. [13] M. B. Hoshen, R. Heinrich, W. D. Stein, H. Ginsburg, Mathematical modelling of the within-host dynamics of Plasmodium falciparum, Parasitology, 2000, 121(03), 227-235. doi: 10.1017/S0031182099006368 [14] B. Kamangira, P. Nyamugure, G. Magombedze, A theoretical mathematical assessment of the effectiveness of coartemether in the treatment of Plasmodium falciparum malaria infection, Math. biosci., 2014, 256, 28-41. doi: 10.1016/j.mbs.2014.07.010 [15] J. C. Kamgang, G. Sallet, Computation of threshold conditions for epidemiological models and global stability of the disease-free equilibrium (DFE), Mathematical biosciences, 2008, 213(1), 1-12. doi: 10.1016/j.mbs.2008.02.005 [16] L. Malaguarnera, S. Musumeci, The immune response to Plasmodium falciparum malaria, The Lancet infectious diseases, 2002, 2(8), 472-478. doi: 10.1016/S1473-3099(02)00344-4 [17] S. Marino, I. B. Hogue, C. J. Ray, D. E. Kirschner, A methodology for performing global uncertainty and sensitivity analysis in systems biology, . J. of theo. biology, 2008, 254(1), 178-196. doi: 10.1016/j.jtbi.2008.04.011 [18] F. E. McKenzie, W. H. Bossert, The Dynamics of Plasmodium falciparumBlood-stage Infection, J. of Theo. Biology, 1997, 188(1), 127-140. doi: 10.1006/jtbi.1997.0478 [19] F. E. McKenzie, W. H. Bossert, The Optimal Production of Gametocytes by Plasmodium falciparum, Journal of Theoretical Biology, 1998, 193(3), 419-428. doi: 10.1006/jtbi.1998.0710 [20] P. G. McQueen, F. E. McKenzie, Age-structured red blood cell susceptibility and the dynamics of malaria infections. Proceedings of the Nat. Acad. of Sci. of USA, 2004, 24, 9161-9166. [21] L. Molineaux, H. H. Diebner, M. Eichner, W. E Collins, G. M. Jeffery, K. Dietz, Plasmodium falciparum parasitaemia described by a new mathematical model, Parasitology, 2001, 122(04), 379-391. doi: 10.1017/S0031182001007533 [22] S. S. Pilyugin, R. Antia, Modeling immune responses with handling time, Bulletin of mathematical biology, 2000, 62(5), 869-890. doi: 10.1006/bulm.2000.0181 [23] C. Pramoolsinsup, Management of viral hepatitis B, Journal of gastroenterology and hepatology, 2002, 17, S125-S145. doi: 10.1046/j.1440-1746.17.s1.3.x [24] M. A. Sanchez, S. M. Blower, Uncertainty and sensitivity analysis of the basic reproductive rate: tuberculosis as an example, American Journal of Epidemiology, 1997, 145(12), 1127-1137. doi: 10.1093/oxfordjournals.aje.a009076 [25] J. A. Simpson, E. R. Watkins, R. N. Price, L. Aarons, D. E. Kyle, N. J. White, Mefloquine pharmacokinetic-pharmacodynamic models: implications for dosing and resistance, Antimicrobial agents and chemotherapy, 2000, 44(12), 3414-3424. doi: 10.1128/AAC.44.12.3414-3424.2000 [26] E. Takoutsing, S. Bowong, D. Yemele, J. Kurths, Effects of Catastrophic Anemia in an Intra-Host Model of Malaria Internat. J. of Bifur. Chaos, 2014, 24, 1450105. doi: 10.1142/S0218127414501053 [27] P. Van den Driessche, J. Watmough, Reproduction numbers and sub-threshold endemic equilibria for compartmental models of disease transmission, Math. biosc., 2002, 180(1), 29-48. [28] L. Wang, Z. Teng, T. Zhang, Threshold dynamics of a malaria transmission model in periodic environment, Communicat. in Nonl. Sci. and Numerical Simulation, 2013, 18(5), 1288-1303. doi: 10.1016/j.cnsns.2012.09.007 [29] N. White, Antimalarial drug resistance and combination chemotherapy, Philosophical Transactions of the Royal Society of London B: Biol. Sci., 1999, 739-749. [30] World Health Organisation, World Malaria Report, 2015, http://www.who.int/malaria/world-malariareport-2015/en/. -
-
Figures(9) / Tables(2)
Export File
Citation
E. Takoutsing, S. Bowong, D. Yemele, A. Temgoua. DYNAMICS OF AN INTRA-HOST MODEL OF MALARIA WITH A CONSTANT DRUG EFFICIENCY[J]. Journal of Applied Analysis & Computation, 2019, 9(6): 2037-2069. doi: 10.11948/20160266
Format
Content
DownLoad:
-

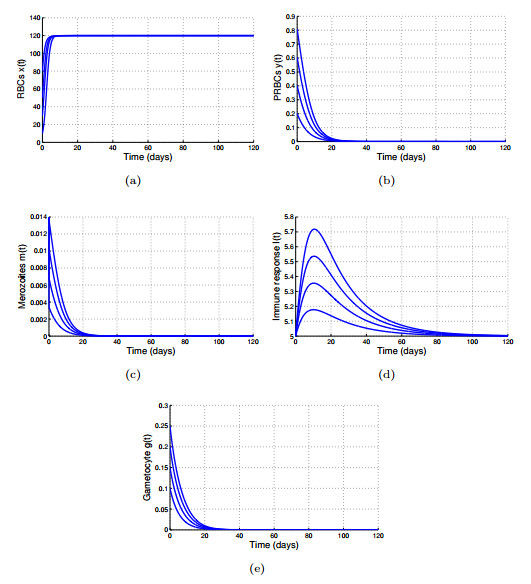

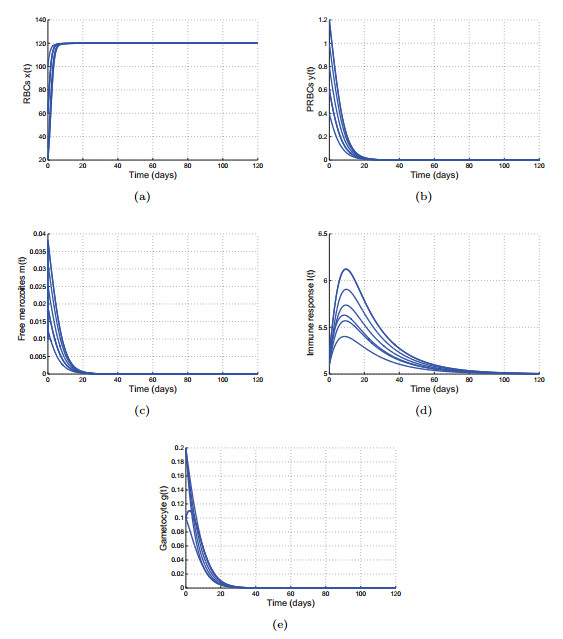

Figure 1. Time plot of densities of (a) RBCs
$ x(t) $ , (b) PRBCs$ y(t) $ , (c) free merozoites$ m(t) $ , (d) immune effectors$ I(t) $ and (e) gametocytes$ g(t) $ using various initial conditions when$ \beta = 10 $ and$ f = 0.6 $ (so that$ \zeta = 0.4295 $ ,$ \mathcal R_f = 0.3818<\zeta $ ). All other parameter values are given in Table 1. -
Figure 2. Time plot of densities of (a) RBCs
$ x(t) $ , (b) PRBCs$ y(t) $ , (c) free merozoites$ m(t) $ , (d) immune effectors$ I(t) $ and (e) gametocytes$ g(t) $ using various initial conditions when$ \beta = 16 $ ,$ f_c = 0.7188 $ and$ f = 0.8 $ (so that$ \zeta = 0.4227 $ ,$ \mathcal R_0 = 1.5030>1 $ ,$ \mathcal R_f = 0.3006<\zeta $ and$ f>f_c $ ). All other parameter values are given in Table 1. -

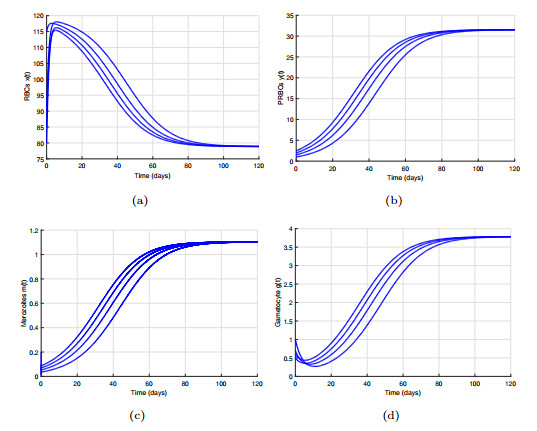

Figure 3. Time plot of densities of (a) RBCs
$ x(t) $ , (b) PRBCs$ y(t) $ , (c) free merozoites$ m(t) $ , (d) gametocytes$ g(t) $ using various initial conditions when$ \beta = 8 $ and$ f = 0.2 $ (so that$ \tau_0 = 0.2362<1 $ ,$ \tilde{\mathcal R}_{0} = 1.3913>1 $ ). All other parameter values are given in Table 1. -

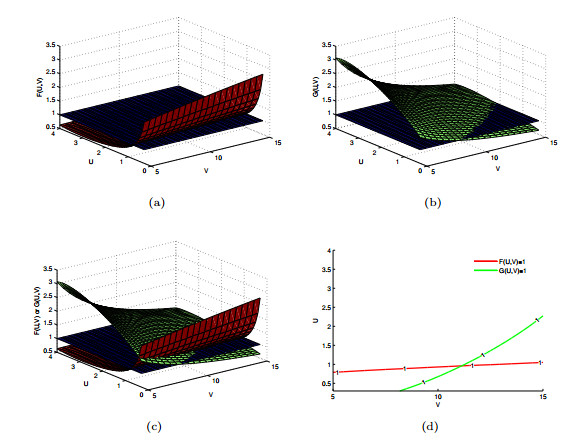

Figure 4. In (a) and (b) we see that there is a curve in the
$ (U, V) $ which plane along with$ F(U, V) = 1 $ and$ G(U, V) = 1 $ , respectively. (c) illustrates that there is a unique point at which$ F(U, V) = G(U, V) = 1 $ . This point determines an endemic equilibrium$ E^* $ . (d) shows the contour curves$ F(U, V) = 1 $ and$ G(U, V) = 1 $ , and there is a unique intersection point. We choose$ \beta = 16 $ ,$ u = 0.5 $ and$ f = 0.2 $ (so that$ \mathcal R_f = 1.1307>1 $ ). All other parameter values are as in Table 1. -

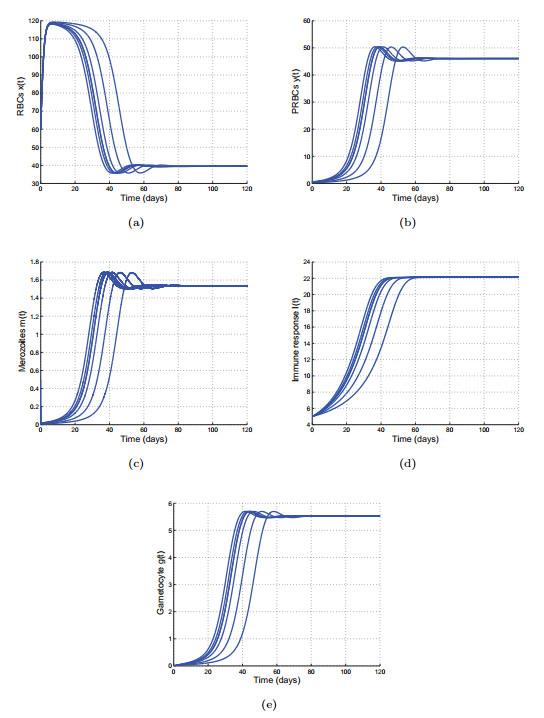

Figure 5. Time plot of densities of (a) RBCs

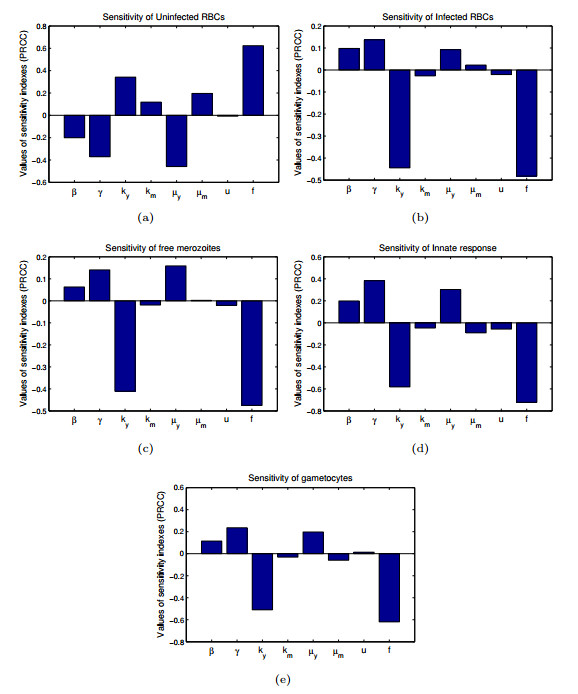

$ x(t) $ , (b) PRBCs$ y(t) $ , (c) free merozoites$ m(t) $ , (d) immune effectors$ I(t) $ and (e) gametocytes$ g(t) $ using various initial conditions when$ \beta = 16 $ and$ f = 0.2 $ (so that$ \mathcal R_f = 1.12024>1 $ ). All other parameter values are given in Table 1. - Figure 6. Values of sensitivity indexes (PRCC) of uninfected RBCs, PRBCs, free merozoites, immune effectors and gametocytes.
-

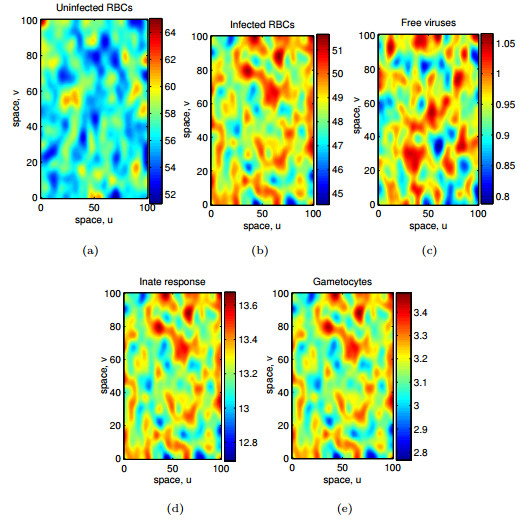

Figure 7. Spatio-temporal evolution of model system (3.1) after 10 days without any treatment, that is
$ f = 0 $ (so that$ \mathcal R_f = \mathcal R_0 = 1.5030 $ and$ f_c = 0.7188 $ ) All other parameter values as in Table 1. -

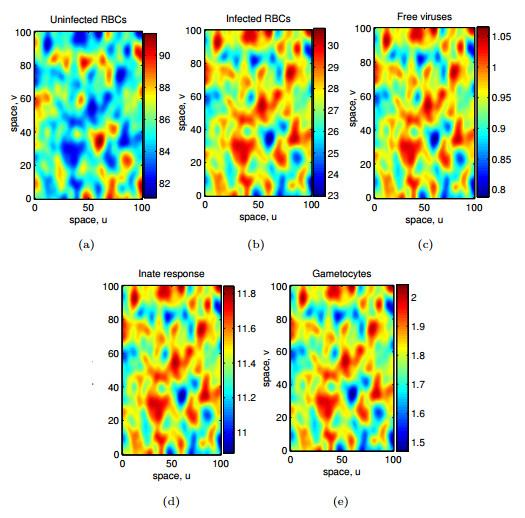

Figure 8. Spatio-temporal evolution of model system (3.1) after 10 days with insufficient drug efficiency when
$ f = 0.20 $ and$ f_c = 0.7188 $ (so that$ \mathcal R_f = 1.2024 $ and$ f<f_c $ ). All other parameter values as in Table 1. -

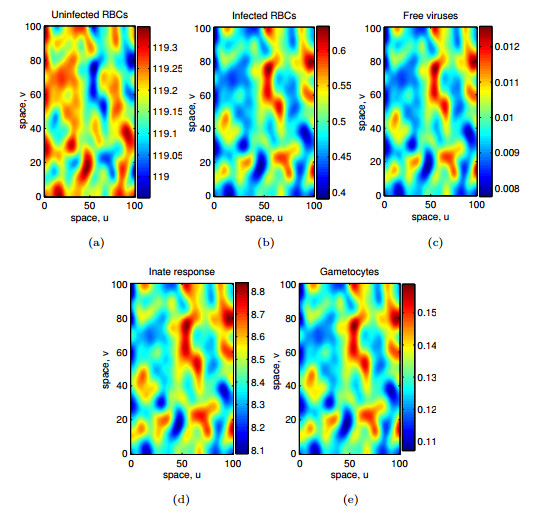

Figure 9. Spatio-temporal evolution of model system (3.1) after 10 days with a sufficient drug efficiency when
$ f = 0.8 $ and$ f_c = 0.7188 $ (so that$ \mathcal R_0 = 1.4134 $ ,$ \mathcal R_f = 0.3006 $ and$ f>f_c $ ). All other parameter values as in Table 1.
