$H_{\infty}$ FEEDBACK CONTROLS BASED ON DISCRETE-TIME STATE OBSERVATIONS FOR SINGULAR HYBRID SYSTEMS WITH NONHOMOGENEOUS MARKOVIAN JUMP

Zhiyong Ye; Suying Pan; Jin Zhou

doi:10.11948/20180315

2019 Volume 9 Issue 5

Article Contents

Article navigation > Journal of Applied Analysis & Computation > 2019 > 9(5): 1750-1768

Next Article Previous Article

Zhiyong Ye, Suying Pan, Jin Zhou. $H_{\infty}$ FEEDBACK CONTROLS BASED ON DISCRETE-TIME STATE OBSERVATIONS FOR SINGULAR HYBRID SYSTEMS WITH NONHOMOGENEOUS MARKOVIAN JUMP[J]. Journal of Applied Analysis & Computation, 2019, 9(5): 1750-1768. doi: 10.11948/20180315

Citation:

Zhiyong Ye, Suying Pan, Jin Zhou. $H_{\infty}$ FEEDBACK CONTROLS BASED ON DISCRETE-TIME STATE OBSERVATIONS FOR SINGULAR HYBRID SYSTEMS WITH NONHOMOGENEOUS MARKOVIAN JUMP[J]. Journal of Applied Analysis & Computation, 2019, 9(5): 1750-1768. doi: 10.11948/20180315

$H_{\infty}$ FEEDBACK CONTROLS BASED ON DISCRETE-TIME STATE OBSERVATIONS FOR SINGULAR HYBRID SYSTEMS WITH NONHOMOGENEOUS MARKOVIAN JUMP

1.
Institute of Applied Mathematics and Mechanics and Shanghai Key Laboratory of Mechanics in Energy Engineering, Shanghai University, 200072 Shanghai, China
2.
School of Science, Chongqing University of Technology, 400054 Chongqing, China

Corresponding author: Email address: yezhiyong1966@163.com(Z. Ye)

Abstract

Abstract

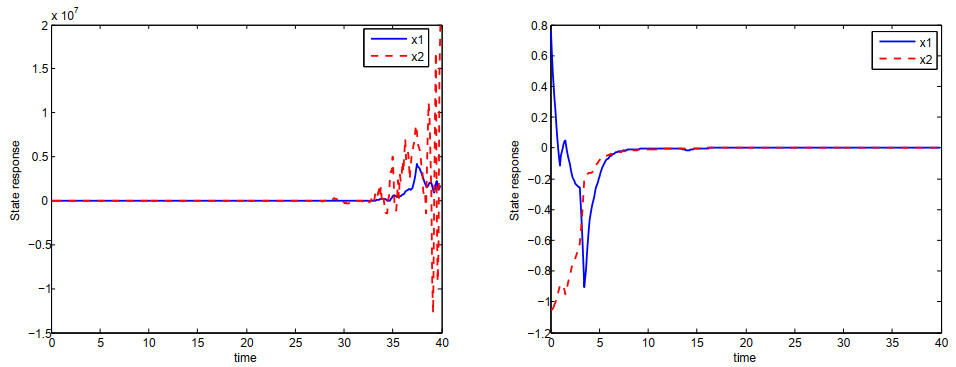

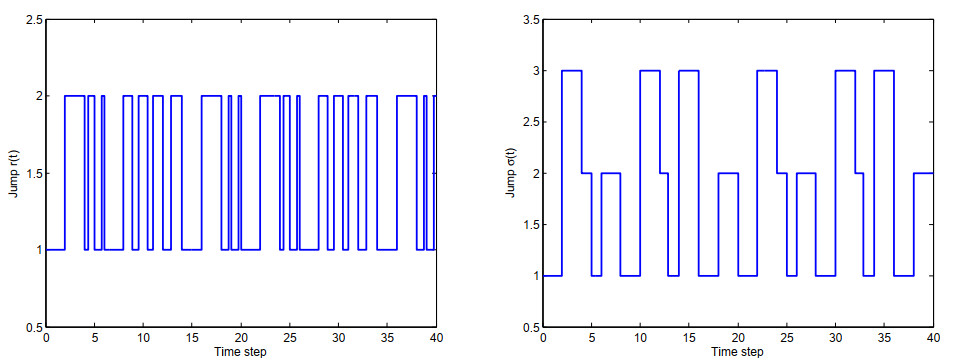

In this paper, the $H_{\infty}$-control problem for singular Markovian jump systems (SMJSs) with variable transition rates by feedback controls based on discrete-time state observations is studied. The mode-dependent time-varying character of transition rates is supposed to be piecewise-constant. By designing a feedback controller based on discrete-time state observations, employing a stochastic Lyapunov-Krasovskii functional, and combining with the linear matrix inequalities (LMIs) technologies, sufficient conditions under the case of nonhomogeneous transition rates are developed such that the controlled system is regular, impulse free, and stochastically stable. Subsequently, the upper bound on the duration $\tau$ between two consecutive state observations and prescribed $H_{\infty}$ performance $\gamma$ are derived. Moreover, the achieved results can be easily checked by the Matlab LMI Tool Box. Finally, two numerical examples are presented to show the effectiveness of the proposed methods.
- Discrete-time state observation /
- stochastically stable /
- $H_{\infty}$feedback control /
- nonhomogeneous Markovian jump /
- singular system
MSC: 34D20, 34F05, 93D15

FullText(HTML)

References

[1]	E. K. Boukas, Static output feedback control for stochastic hybrid systems: LMI approach, Automatica, 2006, 42(1), 183–188. Google Scholar
[2]	E. K. Boukas, Communications and control engineering, Control of singular systems with random abrupt changes, Springer, 2008. Google Scholar
[3]	Y. K. Cui, J. Shen and Y. Chen, Stability analysis for positive singular systems with distributed delays, Automatica, 2018, 94, 170–177. Google Scholar
[4]	L. Y. Dai, Lectures notes in control and information sciences: Vol. 118. Singular control systems, Springer, New York, 1989. Google Scholar
[5]	J. C. Geromel and P. Colaneri, Stability and stabilization of continuous-time switched linear systems, Siam J. Control Optim., 2006, 45(5), 1915–1930. Google Scholar
[6]	M. A. Han and L. J. Sheng, Bifurcation of limit cycles in piecewise smooth systems via Melnikov function, J. Appl. Anal. Comput., 2015, 5(4), 809–815. Google Scholar
[7]	M. A. Han, On the maximum number of periodic solutions of piecewise smooth periodic equations by average method, J. Appl. Anal. Comput., 2017, 7(2), 788–794. Google Scholar
[8]	Y. He, M. Wu, J. H. She and G. P. Liu, Delay-dependent robust stability criteria for uncertain neutral systems with mixed delays, Syst. Control Lett., 2004, 51(1), 57–65. Google Scholar
[9]	M. G. Hua, D. D. Zheng and F. Q. Deng, Partially mode-dependent $l_{2}-l_{\infty}$ filtering for discrete-time nonhomogeneous Markov jump systems with repeated scalar nonlinearities, Inform. Sciences, 2018, 451-452, 223-239. Google Scholar
[10]	I. Y. Kats and A. A. Martynyuk, Stability and stabilization of nonlinear systems with random structure, Taylor & Francis, 2002. Google Scholar
[11]	Y. G. Kao, J. Xie and C. H. Wang, An anti-windup design to robust $H_{\infty}$ control for singular Markovian jump systems with actuator saturation and general unknown transition rates, J. Franklin Inst., 2015, 352(12), 5708–5734. Google Scholar
[12]	N. N. Krasovskii and E. A. Lidskii, Analysis design of controller in systems with random attributes-Part 2, Automat. Rem. Contr., 1961, 22, 1141–1146. Google Scholar
[13]	C. M. Lee and I. K. Fong, $H_{\infty}$ optimal singular and normal filter design for uncertain singular systems, IET Control Theory A., 2007, 1(1), 119–126. Google Scholar
[14]	F. B. Li, P. Shi, C. C. Lim and L. G. Wu, Fault detection filtering for nonhomogeneous Markovian jump systems via fuzzy approach, IEEE Trans. Fuzzy Syst., 2018, 26(1), 131–141. Google Scholar
[15]	M. Li, M. Liu, Y. C. Zhang and Y. H. Geng, Fault tolerant sliding mode control for T-S fuzzy stochastic time-delay system via a novel sliding mode observer approach, Int. J. Syst. Sci., 2018, 49(7), 1353–1367. Google Scholar
[16]	Y. K. Li, M. Chen, L. Cai, and Q. X. Wu, Resilient control based on disturbance observer for nonlinear singular stochastic hybrid system with partly unknown Markovian jump parameters, J. Franklin Inst., 2018, 355(5), 2243–2265. Google Scholar
[17]	M. Z. Luo, S. M. Zhong and J. Cheng, Finite-time event-triggered control and fault detection for singular Markovian jump mixed delay systems under asynchronous switching, Adv. Differ. Equ., 2018. DOI: 10.1186/s13662-018-1533-y. Google Scholar
[18]	Y. C. Ma, N. N. Ma and L. Chen, Synchronization criteria for singular complex networks with Markovian jump and time-varying delays via pinning control, Nonlinear Anal.-Hybri., 2018, 29, 85–99. Google Scholar
[19]	X. R. Mao, Stability of stochastic differential equations with Markovian switching, Stoch. Proc. Appl., 1999, 79, 45–67. Google Scholar
[20]	X. R. Mao Exponential stability of stochastic delay interval systems with Markovian switching, IEEE Trans. Automat. Contr., 2002, 47(10), 1604–1612. Google Scholar
[21]	X. R. Mao and C. G. Yuan, Stochastic differential equations with Markovian switching, Imperial College Press, 2006. Google Scholar
[22]	X. R. Mao, Stabilization of continuous-time hybrid stochastic differential equations by discrete-time feedback control, Automatics, 2013, 49(12), 3677–3681. Google Scholar
[23]	X. R. Mao, W. Liu, L. J, Hu, Q. Luo and J. Q. Lu, Stabilization of hybrid stochastic differential equations by feedback control based on discrete-time state observations, Syst. Control Lett., 2014, 73, 88–95. Google Scholar
[24]	S. Y. Pan, Z. Y. Ye and J. Zhou, $H_{\infty}$ robust control based on event-triggered sampling for hybrid systems with singular Markovian jump, Math. Mett. Appl. Sci., 2019, 42, 790–805. Google Scholar
[25]	B. Pang and Q. L. Zhang, Sliding mode control for polynomial fuzzy singular systems with time delay, IET Control Theory A., 2018, 12(10), 1483–1490. Google Scholar
[26]	W. H. Qi, G. D. Zong and H. R. Karim, Observer-based adaptive SMC for nonlinear uncertain singular semi-Markov jump systems with applications to DC motor, IEEE Trans. Circuits Syst. I. Reg. Papers, 2018, 65(9), 2951–2960. Google Scholar
[27]	R. Shorthen, F.Wirth, O. Mason, K. Wulff and C. King, Stability criteria for switched and hybrid systems, Siam Rev., 2007, 49(4), 545–592. Google Scholar
[28]	M. H. Sun, J. Lam, S. Y. Xu and Y. Zou, Robust exponential stabilization for Markovian jump systems with mode-dependent input delay, Automatica, 2007, 43, 1799–1807. Google Scholar
[29]	H. J. Wang, A. K. Xue and R. Q. Lu, New stability criteria for singular systems with time-varying delay and nonlinear perturbations, Int. J. Syst. Sci., 2014, 45(12), 2576–2589. Google Scholar
[30]	G. L. Wang, Q. L. Zhang and C. Y. Yang, Exponential stability of stochastic singular delay systems with general Markovian switchings, Int. J. Robust Nonlin., 2014, 25(17), 3478–3494. Google Scholar
[31]	J. M. Wang, S. P. Ma, C. H. Zhang and M. Y. Fu, Finite-time $H_{\infty}$ filtering for nonlinear singular systems with nonhomogeneous Markov jumps, IEEE T. Cybernetics, 2018, 49(6), 2133–2143. Google Scholar
[32]	Z. G. Wu, H. Y. Su and J. Chu, Robust exponential stability of uncertain singular Markovian jump time-delay systems, Acta Automatica Sinica, 2010, 36(4), 558–563. Google Scholar
[33]	Z. G. Wu, H. Y. Su and J. Chu, $\text{H}_{\infty}$ filtering for singular Markovian jump systems with time delay, Int. J. Robust Nonlin., 2010, 20(8), 939–957. Google Scholar
[34]	Y. F. Xie, W. H. Gui, Y. L. Wang and Z. H. Jiang, Memory state feedback controller design for singular systems with multiple internal constant point delays, IET Control Theory A., 2009, 3(6), 631–641. Google Scholar
[35]	J. Xie, Y. G. Kao, C. H. Zhang and H. R. Karimi, Quantized control for uncertain singular Markovian jump linear systems with general incomplete transition rates, Int. J. Control Autom. Syst., 2017, 15(3), 1107–1116. Google Scholar
[36]	S. Y. Xing, F. Q. Deng and D. Hou, Delay-dependent $H_{\infty}$ filtering for singular Markov jump systems with wiener process and generally uncertain transition rates, Int. J. Syst. Sci., 2018, 49(8), 1685–1702. Google Scholar
[37]	S. Y. Xu, T. Chen and J. Lam, Robust H$_{\infty}$ filtering for uncertain Markovian jump systems with mode-dependent time delays, IEEE Trans. Automat. Contr., 2003, 48(5), 900–907. Google Scholar
[38]	S. Y. Xu and J. Lam, Reduced-order $H_{\infty}$ filter for singular systems, Syst. Control Lett., 2007, 56(1), 48–57. Google Scholar
[39]	P. Yu, M. A. Han and Y. Z. Bai, Dynamics and bifurcation stidy on an extended lorenz system, J. nonlinear model. anal., 2019, 1(1), 107–128. Google Scholar
[40]	L. X. Zhang, B. Cai and Y. Shi, Stabilization of hidden semi-Markov jump systems: Emission probability approach, Automatica, 2019, 101, 87–95. Google Scholar
[41]	J. Zuo, G. B. Liu, Y. L. Wei, Z. D. Wei and J. W. Feng, Mixed filter design for nonlinear singular Markovian jump systems with time-varying delays based on a dissipativity performance index, T. I. Meas. Control, 2018, 40(9), 2779–2788. Google Scholar
