| Citation: |
Xianyi Li, Haijun Wang. A THREE-DIMENSIONAL NONLINEAR SYSTEM WITH A SINGLE HETEROCLINIC TRAJECTORY[J]. Journal of Applied Analysis & Computation, 2020, 10(1): 249-266. doi: 10.11948/20190135
|
A THREE-DIMENSIONAL NONLINEAR SYSTEM WITH A SINGLE HETEROCLINIC TRAJECTORY
-
Abstract
The study for singular trajectories of three-dimensional (3D) nonlinear systems is one of recent main interests. To the best of our knowledge, among the study for most of Lorenz or Lorenz-like systems, a pair of symmetric heteroclinic trajectories is always found due to the symmetry of those systems. Whether or not does there exist a 3D system that possesses a single heteroclinic trajectory? In the present note, based on a known Lorenz-type system, we introduce such a 3D nonlinear system with two cubic terms and one quadratic term to possess a single heteroclinic trajectory. To show its characters, we respectively use the center manifold theory, bifurcation theory, Lyapunov function and so on, to systematically analyse its complex dynamics, mainly for the distribution of its equilibrium points, the local stability, the expression of locally unstable manifold, the Hopf bifurcation, the invariant algebraic surface, and its homoclinic and heteroclinic trajectories, etc. One of the major results of this work is to rigorously prove that the proposed system has a single heteroclinic trajectory under some certain parameters. This kind of interesting phenomenon has not been previously reported in the Lorenz system family (because the huge amount of related research work always presents a pair of heteroclinic trajectories due to the symmetry of studied systems). What's more key, not like most of Lorenz-type or Lorenz-like systems with singularly degenerate heteroclinic cycles and chaotic attractors, the new proposed system has neither singularly degenerate heteroclinic cycles nor chaotic attractors observed. Thus, this work represents an enriching contribution to the understanding of the dynamics of Lorenz attractor. -
-
References
[1] Y. Bai, X. Mu, Global asymptotic stability of a generalized SIRS epidemic model with transfer from infectious to susceptible, J. Appl. Anal. Comput., 2018, 8(2), 402-412. [2] Y. Chen, Q. Yang, Dynamics of a hyperchaotic Lorenz-type system, Nonlinear Dyn., 2014, 73, 569-581. [3] E. Freire, A. J. Rodriguez-Luis, E. Gamero, et al., A case study for homoclinic chaos in an autonomous electronic circuit: A trip from Takens-Bogdanov to Hopf-Šil'nikov, Phys. D., 1993, 62, 230-253. doi: 10.1016/0167-2789(93)90284-8 [4] P. Glendinning, C. Sparrow, Local and Global Behaviour Near Homoclinic Orbit, J. Stat. Phys., 1984, 35, 645-696. doi: 10.1007/BF01010828 [5] J. K. Hale, Ordinary Diferential Equations, Wiley, New York, 1969. [6] M. Han, B. Xu, H. Tian, Y. Bai, On the Number of Periodic Solutions of Delay Differential Equations, Int. J. Bifurcation and Chaos, 2018, 28(4), 1850051. doi: 10.1142/S0218127418500517 [7] M. Han, L. Sheng, X. Zhang, Bifurcation theory for finitely smooth planar autonomous differential systems, J. Differential Equations, 2018, 264, 3596-3618. doi: 10.1016/j.jde.2017.11.025 [8] M. Han, L. Zhang, Y. Wang, C. Khalique, The effects of the singular lines on the traveling wave solutions of modified dispersive water wave equations, Nonlinear Anal.: RWA, 2019, 47, 236-250. doi: 10.1016/j.nonrwa.2018.10.012 [9] G. W. Hunt, M. A. Peletier, A. R. Champneys, et al., Cellular buckling in long structures, Nonlinear Dyn., 2000, 21, 3-29. doi: 10.1023/A:1008398006403 [10] W. S. Koon, M. W. Lo, J. E. Marsden, S. D. Ross, Heteroclinic Connections between Periodic Orbits and Resonance Transitions in Celestial Mechanics, Chaos, 2000, 10, 427-469. doi: 10.1063/1.166509 [11] Y. A. Kuzenetsov, Elements of Applied Bifurcation Theory, Third ed., Springer-Verlag, New York, 2004. [12] G. A. Leonov, Fishing principle for homoclinic and heteroclinic trajectories, Nonlinear Dyn., 2014, 78, 2751-2758. doi: 10.1007/s11071-014-1622-8 [13] T. Li, J. A. Yorke, Period three implies chaos, Amer. Math. Monthly, 1975, 82, 985-992. doi: 10.1080/00029890.1975.11994008 [14] T. Li, G. Chen, and G. Chen, On homoclinic and heteroclinic orbits of the Chen's system, Int. J. Bifurcation and Chaos, 2006, 16, 3035-3041. doi: 10.1142/S021812740601663X [15] X. Li, H. Wang, Homoclinic and heteroclinic orbits and bifurcations of a new Lorenz-type system, Int. J. Bifurcation and Chaos, 2011, 21, 2695-2712. doi: 10.1142/S0218127411030039 [16] X. Li, Q. Ou, Dynamical properties and simulation of a new Lorenz-like chaotic system, Nonlinear Dyn., 2011, 65, 255-270. doi: 10.1007/s11071-010-9887-z [17] X. Li, P. Wang, Hopf bifurcation and heteroclinic orbit in a 3D autonomous chaotic system, Nonlinear Dyn., 2013, 73, 621-632. doi: 10.1007/s11071-013-0815-x [18] Y. Liu, Q. Yang, Dynamics of a new Lorenz-like chaotic system, Nonl. Anal.: RWA, 2010, 11, 2563-2572. doi: 10.1016/j.nonrwa.2009.09.001 [19] Y. Liu, W. Pang, Dynamics of the general Lorenz family, Nonlinear Dyn., 2012, 67, 1595-1611. doi: 10.1007/s11071-011-0090-7 [20] X. Liu, Bifurcations near the weak type heterodimensional cycle, Int. J. Bifurcation and Chaos, 2014, 9, 1450112. [21] X. Liu, Homoclinic Flip Bifurcations Accompanied by Transcritical Bifurcation, Chinese Annals of Mathematics, Series B, 2011, 32(6), 905-916. [22] X. Liu, X. Fu, D. Zhu, Homoclinic bifurcation with nonhyperbolic equilibria, Nonlinear Anal.: RWA, 2007, 66(12), 2931-2939. doi: 10.1016/j.na.2006.04.014 [23] I. M. Ovsyannikov, L. P. Shil'nikov, On systems with a saddle-focus homoclinic curve, Mathematics of the USSR-Sbornik, 1987, 58, 557-574. [24] L. S. Pontryagin, Ordinary Differential Equations, Addison-Wesley Publishing Company Inc., Reading, 1962, 58. [25] L. P. Shilnikov, A. L. Shilnikov, D. V.Turaev, L. O. Chua, Methods of qualitative theory in nonlinear dynamics. Part Ⅰ, Ⅱ, World Scientific, Singapore, 2001. [26] L. P. Shil'nikov, A contribution to the problem of the structure of an extended neighborhood of a rough equilibrium state of saddle-focus type, Mathematics of the USSR-Sbornik, 1970, 10, 91-102. doi: 10.1070/SM1970v010n01ABEH001588 [27] A. L. Shil'nikov, L. P.Shil'nikov, D. V.Turaev, Normal forms and Lorenz attractors, Int. J. Bifurcation and Chaos, 1993, 3, 1123-1139. doi: 10.1142/S0218127493000933 [28] G. Tigan, D. Turaev, Analytical search for homoclinic bifurcations in the Shimizu-Morioka model, Phys. D., 2011, 240, 985-989. doi: 10.1016/j.physd.2011.02.013 [29] G. Tigan, D. Constantinescu, Heteroclinic orbits in the T and the Lü system, Chaos Solitons Fractals, 2009, 42, 20-23. doi: 10.1016/j.chaos.2008.10.024 [30] G. Tigan, J. Llibre, Heteroclinic, homoclinic and closed orbits in the Chen system, Int. J. Bifurcation and Chaos, 2016, 26, 1650072(6 pages). [31] H. Wang, X. Li, More dynamical properties revealed from a 3D Lorenz-like system, Int. J. Bifurcation and Chaos, 2014, 24, 1450133(29 pages). [32] H. Wang, X. Li, On singular orbits and a given conjecture for a 3D Lorenz-like system, Nonlinear Dyn., 2015, 80, 969-981. doi: 10.1007/s11071-015-1921-8 [33] H. Wang, C. Li, X. Li, New heteroclinic orbits coined, Int. J. Bifurcation and Chaos, 2016, 26, 1650194(13 pages). [34] H. Wang, X. Li, Infinitely many heteroclinic orbits of a complex Lorenz system, Int. J. Bifurcation and Chaos, 2017, 27, 1750110(14 pages). [35] H. Wang, X. Li, A novel hyperchaotic system with infinitely many heteroclinic orbits coined, Chaos, Solitons and Fractals, 2018, 106, 5-15. doi: 10.1016/j.chaos.2017.10.029 [36] S. Wiggins, Introduction to Applied Nonlinear Dynamical System and Chaos, Springer, New York, 2003. [37] S. Wiggins, Global Bifurcations and Chaos: Analytical Methods, Springer, New York, 1988. [38] D. Wilczak, P. Zgliczyński, Heteroclinic Connections between Periodic Orbits in Planar Restricted Circular Three Body Problem-A Computer Assisted Proof, Commun. Math. Phys., 2003, 234, 37-75. doi: 10.1007/s00220-002-0709-0 [39] D. Wilczak, P. Zgliczyński, Heteroclinic connections between periodic orbits in planar restricted circular three body problem. part II, Commun. Math. Phys., 2005, 259, 561-576. doi: 10.1007/s00220-005-1374-x [40] Q. Yang, G. Chen, A chaotic system with one saddle and two stable node-foci, Int. J. Bifurcation and Chaos, 2008, 18, 1393-1414. doi: 10.1142/S0218127408021063 [41] Q. Yang, Z. Wei, G. Chen, An unusual 3D autonomous quadratic chaotic system with two stable node-foci. Int. J. Bifurcation and Chaos, 2010, 20, 1061-1083. doi: 10.1142/S0218127410026320 [42] Q. Yang, Y. Chen, Complex dynamics in the unified Lorenz-type system, Int. J. Bifurcation and Chaos, 2014, 24, 1450055 (30 pages). [43] Q. Yang, T. Yang, Complex dynamics in a generalized Langford system, Nonlinear Dyn., 2018, 91(4), 2241-2270. [44] L. Zhang, Y. Wang, C. Khalique, Y. Bai, Peakon and cuspon solutions of a generalized Camassa-Holm-Novikov equation, J. Appl. Anal. Compu., 2018, 8(6), 1938-1958. [45] L. Zhang, C. Khalique, Classification and bifurcation of a class of second-order ODEs and its application to nonlinear PDEs, Discrete and Continuous Dynamical Systems-Series S, 2018, 11(4), 777-790. -
-
Figures(8) / Tables(1)
Export File
Citation
Xianyi Li, Haijun Wang. A THREE-DIMENSIONAL NONLINEAR SYSTEM WITH A SINGLE HETEROCLINIC TRAJECTORY[J]. Journal of Applied Analysis & Computation, 2020, 10(1): 249-266. doi: 10.11948/20190135
Format
Content
DownLoad:
-

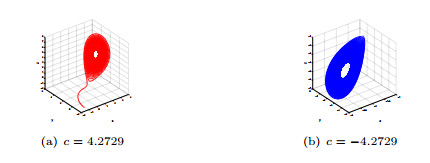

Figure 1. Phase portraits of system (2.2) with
$ (a, b) = (2, 3) $ and different values of parameter$ c $ -
Figure 2. The graph of
$ N_{1}(a, b) $ for$ (a, b) = (0, 3)\times (0, 6) $ -

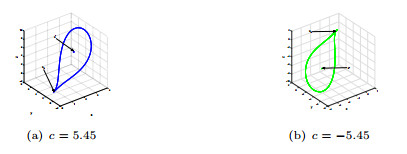

Figure 3. Phase portraits of system (2.2) with
$ (a, b) = (2, 3) $ , (a)$ c = 5.45 $ ,$ (x_{0}, y_{0}, z_{0}) = (1.3, 1.6, 1.6)\times1e-4 $ , (b)$ c = -5.45 $ and$ (x_{0}, y_{0}, z_{0}) = -(1.3, 1.6, 1.6)\times1e-4 $ . The figures illustrate that system (2.2) has a homoclinic trajectory to$ S_{0} $ when$ (a, b, c)\in W_{212}^{3} $ -

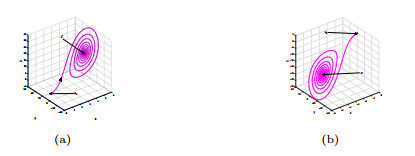

Figure 4. Phase portraits of system (2.2) with (a)
$ (a, c, b) = (2, 19, 6) $ ,$ (x_{0}, y_{0}, z_{0}) = (1.3, 1.6, 1.6)\times1e-4 $ , (b)$ (a, c, b) = (2, -19, 6) $ ,$ (x_{0}, y_{0}, z_{0}) = -(1.3, 1.6, 1.6)\times1e-4 $ . These figures illustrate that system (2.2) has one and only one heteroclinic trajectory to$ S_{0} $ and$ S^{'} $ when$ (a, b, c)\in W_{211} $ -

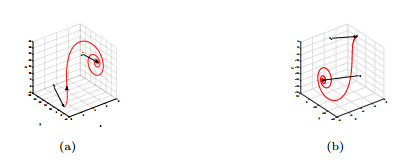

Figure 5. Phase portraits of system (2.2) with (a)
$ (a, c, b) = (2, 19, 18) $ ,$ (x_{0}, y_{0}, z_{0}) = (1.3, 1.6, 1.6)\times1e-4 $ , (b)$ (a, c, b) = (2, -19, 18) $ ,$ (x_{0}, y_{0}, z_{0}) = -(1.3, 1.6, 1.6)\times1e-4 $ . These figures illustrate that system (2.2) has one and only one heteroclinic trajectory to$ S_{0} $ and$ S^{'} $ when$ (a, b, c)\in W_{211} $ -

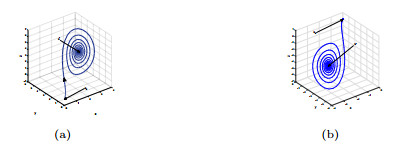

Figure 6. Phase portraits of system (2.2) with (a)
$ (a, c, b) = (2, 4, 4) $ ,$ (x_{0}, y_{0}, z_{0}) = (1.3, 1.6, 1.6)\times1e-4 $ , (b)$ (a, c, b) = (2, -4, 4) $ ,$ (x_{0}, y_{0}, z_{0}) = -(1.3, 1.6, 1.6)\times1e-4 $ . These figures illustrate that system (2.2) has one and only one heteroclinic trajectory to$ S_{0} $ and$ S^{'} $ when$ (a, b, c)\in W_{211} $ -

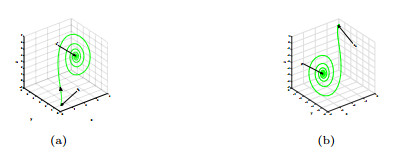

Figure 7. Phase portraits of system (2.2) with (a)
$ (a, c, b) = (2, 4, 5) $ ,$ (x_{0}, y_{0}, z_{0})=(1.3, 1.6, 1.6)\times1e-4 $ , (b)$ (a, c, b) = (2, -4, 5) $ ,$ (x_{0}, y_{0}, z_{0})=-(1.3, 1.6, 1.6)\times1e-4 $ . These figures illustrate that system (2.2) has one and only one heteroclinic trajectory to$ S_{0} $ and$ S^{'} $ when$ (a, b, c)\in W_{211} $ -

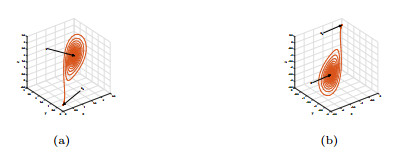

Figure 8. Phase portraits of system (2.2) with (a)
$ (a, c, b) = (2, 4, 5) $ ,$ (x_{0}, y_{0}, z_{0}) = (1.3, 1.6, 1.6)\times1e-4 $ , (b)$ (a, c, b) = (2, -4, 5) $ ,$ (x_{0}, y_{0}, z_{0}) = -(1.3, 1.6, 1.6)\times1e-4 $ . These figures illustrate that system (2.2) has one and only one heteroclinic trajectory to$ S_{0} $ and$ S^{'} $ when$ (a, b, c)\in W_{212}^{1} $
