Xinxin Wang, Xiaoyun Wang, Fengqin Zhang. DYNAMIC ANALYSIS OF A DRUG TRANSMISSION MODEL WITH ANTI-DRUG EDUCATION AND MEDIA COVERAGE[J]. Journal of Applied Analysis & Computation, 2023, 13(4): 2184-2202. doi: 10.11948/20220430
|
DYNAMIC ANALYSIS OF A DRUG TRANSMISSION MODEL WITH ANTI-DRUG EDUCATION AND MEDIA COVERAGE
-
Abstract
This paper is devoted to studying the dynamic behavior of drug transmission and the optimal strategy for controlling drug transmission. We constructed a six-dimensional drug transmission model with media coverage, family and public education, dividing the total population into six categories: high-risk susceptible individuals $(S)$, low-risk susceptible individuals with protection awareness $(P)$, psychological addicts $(I_{PC})$, physiological addicts $(I_{PS})$, drug addicts in community treatment $(R_{C})$, drug addicts in compulsory detoxification treatment $(R_{I})$. We first calculated the basic regeneration number and analyzed the existence and stability of the equilibrium point of the model. Then, sensitivity analysis and numerical simulations of the parameters are performed. Finally, we gained new insights that when $R_0<1$, controlling the contact between susceptible individuals and drug addicts is more effective than treatment; when $R_0>1$, anti-drug education and media coverage play a greater role, at which point prevention and treatment go hand in hand to control the drug epidemic in a more cost-effective and rapid manner.
-
-
References
[1] K. Bansal, T. Mathur, N. S. S. Singh and S. Agarwal, Analysis of illegal drug transmission model using fractional delay differential equations, AIMS Mathematics, 2022, 7(10), 18173–18193. doi: 10.3934/math.20221000 [2] C. C. Carlos and B. Song, Dynamical Models of Tuberculosis and Their Applications, Mathematical Biosciences, 2004, 1(2), 361–404. doi: 10.3934/mbe.2004.1.361 [3] D. Debruyne and R. L. Boisselier, Emerging drugs of abuse: current perspectives on synthetic cannabinoids, Substance abuse and rehabilitation, 2015, 6, 113–129. [4] P. Driessche and J. Watmough, Reproduction numbers and sub-threshold endemic equilibria for compartmental models of disease transmission, Mathmatical Biosciences, 2002, 180(1–2), 29–48. [5] A. Ghasemi, A. R. Foroshani, N. Kheibar and M. Latifi, Effects of family-centered empowerment model based education program on quality of life in methamphetamine users and their families, Iranian Red Crescent Medical Journal, 2014, 16(3), 1–8. [6] Y. I. H. Hser, L. Fu, F. Wu, J. Du and M. Zhao, Pilot trial of a recovery management intervention for heroin addicts released from compulsory rehabilitation in China, Journal of Substance Abuse Treatment, 2013, 44(1), 78–83. doi: 10.1016/j.jsat.2012.03.009 [7] I. Ivanov, L. Xun, K. Shulz, F. Jin and J. H. Newcorn, Parental substance abuse and function of the motivation and behavioral inhibition systems in drug-naive youth, Psychiatry Research, 2012, 201(2), 128–135. doi: 10.1016/j.pscychresns.2011.08.004 [8] Z. Jia, Z. Liu, P. Chu, J. M. Mc Googan, M. Cong, J. Shi and L. Lu, Tracking the evolution of drug abuse in China, 2003-2010: A retrospective, Self-Controlled study, Addiction, 2015, 110(S1), 4–10. [9] A. Khan, G. Zaman, R. Ullah and N. Naveed, Optimal control strategies for a heroin epidemic model with age-dependent susceptibility and recovery-age, AIMS Mathematics, 2021, 6(1), 1377–1394. [10] P. Liu, L. Zhang and Y. Xing, Modelling and stability of a synthetic drugs transmission model with relapse and treatment, Journal of Applied Mathematics and Computing, 2019, 60(1), 465–484. [11] M. Li, Z. Jin, G. Sun and J. Zhang, Modeling direct and indirect disease transmission using multi-group model, Journal of Mathematical Analysis and Applications, 2017, 446(2), 1292–1309. doi: 10.1016/j.jmaa.2016.09.043 [12] J. Li and M. Ma, The analysis of a drug transmission model with family education and public health education, Infectious Disease Modelling, 2018, 3, 74–84. doi: 10.1016/j.idm.2018.03.007 [13] D. R. Mackintosh and G. T. Stewart, A mathematical model of a heroin epidemic: Implications for control policies, Journal of Epidemiology and Community Health, 1979, 33(4), 299–304. doi: 10.1136/jech.33.4.299 [14] J. Mounteney, P. Griffiths and R. Sedefov, The drug situation in Europe: an overview of data available on illicit drugs and new psychoactive substances from European monitoring in 2015, Addiction, 2016, 111(1), 34–48. doi: 10.1111/add.13056 [15] R. Memarbashi and E. Sorouri, Modeling the effect of information transmission on the drug dynamic, The European Physical Journal Plus, 2020, 135(1), 1–20. doi: 10.1140/epjp/s13360-019-00059-2 [16] M. Ma, S. Liu, H. Xiang and J. Li, Dynamics of synthetic drugs transmission model with psychological addicts and general incidence rate, Physica A: Statistical Mechanics and Its Applications, 2018, 491, 641–649. doi: 10.1016/j.physa.2017.08.128 [17] S. A. Matintu, Smoking as Epedemic: Modeling and Simulation study, American Journal of Applied Mathematics, 2017, 5, 31–38. doi: 10.11648/j.ajam.20170501.14 [18] J. Mushanyu and F. Nyabadza, A Risk-Structured Model for Understanding the Spread of Drug Abuse, International Journal of Applied and Computational Mathematics, 2018, 4(2), 1–19. [19] J. Mushanyu, F. Nyabadza and G. Muchatibaya, Modelling drug abuse epidemics in the presence of limited rehabilitation capacity, Bulletin of mathematical biology, 2016, 78(12), 2364–2389. doi: 10.1007/s11538-016-0218-5 [20] J. Mushanyu, F. Nyabadza and A. Stewart, Modelling the trends of inpatient and outpatient rehabilitation for methamphetamine in the Western Cape province of South Africa, BMC Research Notes, 2015, 8(1), 1–13. doi: 10.1186/1756-0500-8-1 [21] C. Marienfeld, P. Liu, X. Wang, R. Schottenfeld, W. Zhou and M. Chawarski, Evaluation of an implementation of methadone maintenance treatment in China, Drug & Alcohol Depend, 2015, 157, 60–67. [22] H. J. B. Njagarah and F. Nyabadza, Modeling the impact of rehabilitation, amelioration and relapse on the prevalence of drug epidemics, Journal of Biological Systems, 2013. DOI: 10.1142/S0218339013500010. [23] National Bureau of Statistics, China Statistical Yearbook, 2021, http://www.stats.gov.cn/tjsj/ndsj/2021/indexch.htm .[24] National Narcotics Control Committee. Drug Situation in China (2019), Beijing, 2020, http://www.nncc626.com/2020-06/25/c_1210675877.htm [25] H. Sun, Y. Bao, S. Zhou, S. Meng and L. Lu, The new pattern of drug abuse in China, Current Opinion in Psychiatry, 2014, 27(4), 251–255. doi: 10.1097/YCO.0000000000000073 [26] P. T. Sowndarrajan, L. Shangerganesh, A. Debbouche and D. F. Torres, Optimal control of a heroin epidemic mathematical model, Optimization, 2021, DOI: 10.1080/02331934.2021.2009823. [27] H. Tang, M. Li, X. Yan, Z. Lu and Z. Jia, Modeling the dynamics of drug spreading in China, International Journal of Environmental Research and Public Health, 2021, 18(1), 1–25. [28] UNODC, World Drug Report 2022, United Nations Publication, New York, https://www.unodc.org/unodc/en/data-and-analysis/world-drug-report-2022.html [29] E. White and C. Comiskey, Heroin epidemics, treatment and ODE modelling, Mathematical biosciences, 2007, 208(1), 312–324. -
-
Figures(5) / Tables(2)
Export File
Citation
Xinxin Wang, Xiaoyun Wang, Fengqin Zhang. DYNAMIC ANALYSIS OF A DRUG TRANSMISSION MODEL WITH ANTI-DRUG EDUCATION AND MEDIA COVERAGE[J]. Journal of Applied Analysis & Computation, 2023, 13(4): 2184-2202. doi: 10.11948/20220430
Format
Content
DownLoad:
-

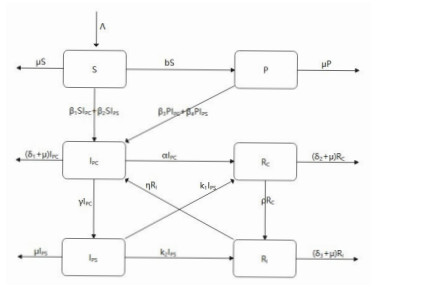

Figure 1.
Compartmental diagram of drug transmission model with media coverage and anti-drug education
-

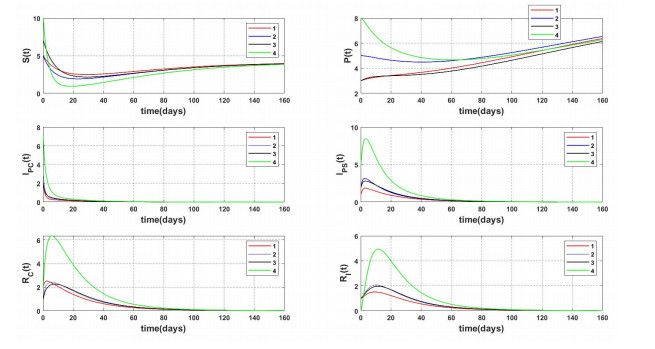

Figure 2.
Numerical simulation of drug-free equilibrium under four different initial values
-

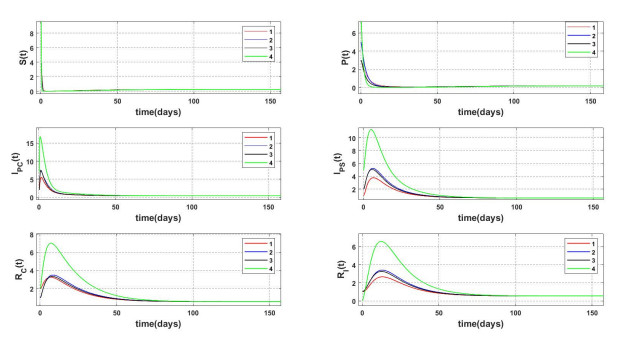

Figure 3.
Numerical simulation of drug-persistent equilibrium under four different initial values
-

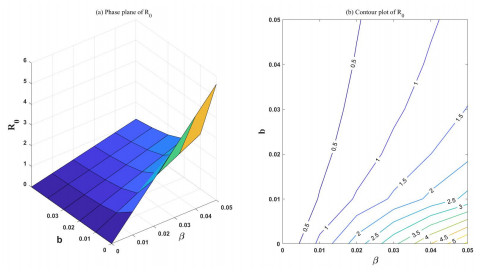

Figure 4.
Sensitivity simulation of
$ \beta $ $ b $ -
Figure 5.
Sensitivity simulation of
$ b $ $ \alpha $
