STRANGE NONCHAOTIC ATTRACTORS AND COMPLICATED QUASI-PERIODIC CASCADES INDUCED BY BIFURCATIONS IN A DRY-FRICTION OSCILLATOR UNDER QUASI-PERIODIC EXCITATION
-
Abstract
This paper explores the crossing bifurcation, switching-sliding and grazing-sliding bifurcations in a dry-friction oscillator on a moving belt under quasi-periodic excitation with two frequencies. We present a concrete method to approximate the largest Lyapunov exponent. By applying the method of some numerical experiments, we find that as bifurcation parameter varies, the system shows quite rich dynamical behaviors, including: (1) For crossing and switching-sliding bifurcations, there exists an alternating sequence of chaotic attractors, quasi-periodic toruses and strange nonchaotic attractors (SNAs), in which SNA exists between chaotic attractor and quasi-periodic torus via an evolution route of torus → SNA → chaos. (2) Grazing-sliding bifurcation triggers a direct transition from a pre-grazing three-torus quasi-periodic orbit to an SNA. Furthermore, we also observe torus-adding cascades and weak torus-adding cascades in quasi-periodic attractors. The unique properties of the observed SNAs are comprehensively validated by the largest Lyapunov exponent, rational approximation, phase sensitivity property, singular continuous spectrum analysis and separation of nearby trajectories.
-
-
References
[1] A. Arulgnanam, A. Prasad, K. Thamilmaran and M. Daniel, Multilayered bubbling route to SNA in a quasiperiodically forced electronic circuit with experimental and analytical confirmation, Chaos Solitons Fractals, 2015, 75, 96–110. doi: 10.1016/j.chaos.2015.02.006 [2] S. Aubry, C. Godrèche and J. M. Luck, A structure intermediate between quasi-periodic and random, Europhysics Letters, 1987, 4(6), 639–643. doi: 10.1209/0295-5075/4/6/001 [3] M. di Bernardo, C. J. Budd, A. R. Champneys and P. Kowalczyk, Piecewise-Smooth Dynamical Systems: Theory and Applications, Springer, London, 2008. [4] M. di Bernardo, P. S. Kowalczyk and A. Nordmark, Sliding bifurcations: A novel mechanism for the sudden onset of chaos in dry-friction oscillators, International Journal of Bifurcation and Chaos, 2003, 13(10), 2935–2948. doi: 10.1142/S021812740300834X [5] Q. Cao, A. Léger and M. Wiercigroch, A Smooth and Discontinuous Oscillator: Theory, Methodology and Applications, Springer, Germany, 2017. [6] Y. Chen, J. Duan, D. Li and G. Li, Stability and bifurcation in an ecological system under time-dependent environmental influences, Nonlinear Dynamics, 2025,113, 28601–28616. doi: 10.1007/s11071-025-11587-1 [7] Y. Chen and Y. Lin, A calculation method for friction coefficient and meshing efficiency of plastic line gear pair under dry friction conditions, Friction, 2021, 9, 1420–1435. [8] G. Dongye, Y. Shen and Y. Zhang, Strange nonchaotic attractors in a quasi-periodically forced piecewise-smooth system, International Journal of Bifurcation and Chaos, 2026, 36(4), 2650041. doi: 10.1142/S0218127426500410 [9] P. Durairaj, S. Kanagaraj, T. Kathamuthu and K. Rajagopal, Strange nonchaotic attractors in memristor-based shimizu-morioka oscillator, International Journal of Bifurcation and Chaos, 2022, 32(9), 2230022. doi: 10.1142/S0218127422300221 [10] U. Feudel, S. Kuznetsov and A. Pikovsky, Strange Nonchaotic Attractors: Dynamics Between Order and Chaos in Quasiperiodically Forced Systems, World Scientific, Singapore, 2006. [11] G. A. Gottwald and I. Melbourne, A new test for chaos in deterministic systems, Proceedings of the Royal Society A, 2004,460(2042), 603–611. doi: 10.1098/rspa.2003.1183 [12] C. Grebogi, E. Ott, S. Pelikan and J. Yorke, Strange attractors that are not chaotic, Physica D: Nonlinear Phenomena, 1984, 13(1–2), 261–268. doi: 10.1016/0167-2789(84)90282-3 [13] Y. Guo and J. Xie, Neimark-Sacker (N-S) bifurcation of oscillator with dry friction in 1:4 strong resonance, Applied Mathematics and Mechanics, 2013, 34, 27–36. doi: 10.1007/s10483-013-1650-9 [14] J. Heagy and W. L. Ditto, Dynamics of a two-frequency parametrically driven duffing oscillator, Journal of Nonlinear Science, 1991, 1,423–455. doi: 10.1007/BF02429848 [15] J. Jiang and Z. Du, Heteroclinic bifurcation in a quasi-periodically excited rigid rocking block with two frequencies, Soil Dynamics and Earthquake Engineering, 2023,165, 107677. doi: 10.1016/j.soildyn.2022.107677 [16] J. Jiang and Z. Du, Strange nonchaotic attractors in a quasiperiodically excited slender rigid rocking block with two frequencies, Acta Mechanica Solida Sinica, 2024, 37(5), 750–761. doi: 10.1007/s10338-024-00464-w [17] J. Jiang and Z. Du, Chaotic and strange nonchaotic attractors induced by homoclinic bifurcations in a Duffing-type inverted pendulum under periodic and quasi-periodic excitations, Nonlinear Dynamics, 2025,113, 7691–7716. doi: 10.1007/s11071-024-10747-z [18] L. Jin, Q. S. Lu and E. H. Twizell, A method for calculating the spectrum of Lyapunov exponents by local maps in non-smooth impact-vibrating systems, Journal of Sound and Vibration, 2006,298(4–5), 1019–1033. doi: 10.1016/j.jsv.2006.06.035 [19] J. W. Kim, S. Y. Kim, B. Hunt and E. Ott, Fractal properties of robust strange nonchaotic attractors in maps of two or more dimensions, Physical Review E, 2003, 67, 036211. doi: 10.1103/PhysRevE.67.036211 [20] R. Liu, C. Grebogi and Y. Yue, Double grazing bifurcation route in a quasiperiodically driven piecewise linear oscillator, Chaos, 2023, 33(6), 063150. doi: 10.1063/5.0146285 [21] F. Luo, J. Jiang and Z. Du, Grazing bifurcations in a quasiperiodically excited impact oscillator with two frequencies, Applied Mathematical Modelling, 2026,152, 116601. [22] H. Ma and Z. Du, Grazing-sliding bifurcation in a dry-friction oscillator on a moving belt under periodic excitation, Chaos, 2024, 34(10), 103128. doi: 10.1063/5.0233501 [23] H. M. Osinga and U. Feudel, Boundary crisis in quasiperiodically forced systems, Physica D: Nonlinear Phenomena, 2000,141(1–2), 54–64. [24] A. Pikovsky and U. Feudel, Characterizing strange nonchaotic attractors, Chaos, 1995, 5(1), 253–260. [25] A. S. Pikovsky and U. Feudel, Correlations and spectra of strange non-chaotic attractors, Journal of Physics A: Mathematical and General, 1994, 27(15), 5209–5219. [26] A. Prasad, V. Mehra and R. Ramaswamy, Intermittency route to strange nonchaotic attractors, Physical Review Letters, 1997, 79(21), 4127–4130. [27] A. Prasad, R. Ramaswamy, I. I. Satija and N. Shah, Collision and symmetry breaking in the transition to strange nonchaotic attractors, Physical Review Letters, 1999, 83(22), 4530–4533. [28] Y. Shen and Y. Zhang, Mechanisms of strange nonchaotic attractors in a nonsmooth system with border-collision bifurcations, Nonlinear Dynamics, 2019, 96(2), 1405–1428. [29] Y. Shen, Y. Zhang and Y. Zhang, Hidden strange nonchaotic attractors in a piecewise-smooth system without equilibrium points, Chaos Solitons Fractals, 2026,205, 117837. [30] J. Stoer and R. Bulirsch, Introduction to Numerical Analysis, Springer, New York, 2002. [31] K. Suresh, A. Prasad and K. Thamilmaran, Birth of strange nonchaotic attractors through formation and merging of bubbles in a quasiperiodically forced Chua's oscillator, Physics Letters A, 2013,377(8), 612–621. [32] S. Wang, L. Hong and J. Jiang, Analytical prediction on stick-slip whirling oscillations induced by dry friction between a rotating imbalanced rotor and a flexibly supported stator, Journal of Sound and Vibration, 2021,511, 116333. [33] W. Wang, S. Wang, F. Shi, Y. Wang, H. Chen, H. Wang and Y. Hu, Simulations and measurements of sliding friction between rough surfaces in point contacts: From EHL to boundary lubrication, Journal of Tribology, 2007,129(3), 495–501. [34] T. Yalçınkaya and Y. Lai, Blowout bifurcation route to strange nonchaotic attractors, Physical Review Letters, 1996, 77(25), 5039–5042. [35] Y. Yue, P. Miao and J. Xie, Coexistence of strange nonchaotic attractors and a special mixed attractor caused by a new intermittency in a periodically driven vibro-impact system, Nonlinear Dynamics, 2017, 87, 1187–1207. [36] Y. Zhang and G. Luo, Torus-doubling bifurcations and strange nonchaotic attractors in a vibro-impact system, Journal of Sound and Vibration, 2013,332(21), 5462–5475. [37] Y. Zhang and Y. Shen, A new route to strange nonchaotic attractors in an interval map, International Journal of Bifurcation and Chaos, 2020, 30(4), 2050063. [38] Y. Zhao and Y. Zhang, Border-collision bifurcation route to strange nonchaotic attractors in the piecewise linear normal form map, Chaos Solitons Fractals, 2023,171, 113491 -
-
Figures(39) / Tables(5)
Export File
Citation
Jiaojiao Zhou, Fei Luo, Jinkai Jiang, Yundong Li. STRANGE NONCHAOTIC ATTRACTORS AND COMPLICATED QUASI-PERIODIC CASCADES INDUCED BY BIFURCATIONS IN A DRY-FRICTION OSCILLATOR UNDER QUASI-PERIODIC EXCITATION[J]. Journal of Applied Analysis & Computation, 2027, 17(2): 963-997. doi: 10.11948/20260165
Format
Content
DownLoad:
-
Figure 1.

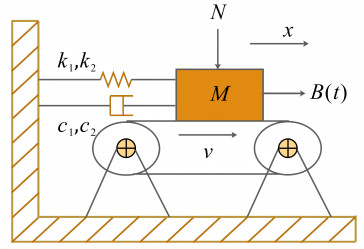

A quasi-periodically excited nonlinear dry-friction oscillator
-
Figure 2.

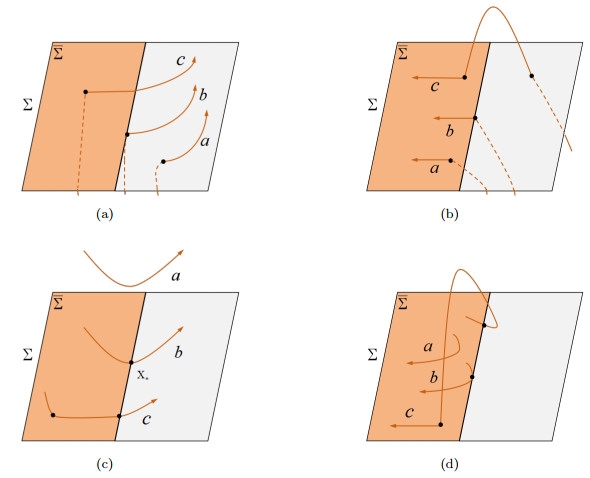

Four cases of sliding bifurcation: (a): Crossing-sliding. (b): Switching-sliding. (c): Grazing-sliding. (d): Adding-sliding. In all cases,
$ \Sigma $ $ F_1 $ $ F_2 $ $ \bar{\Sigma} $ $ F_1 $ $ F_2 $ -
Figure 3.

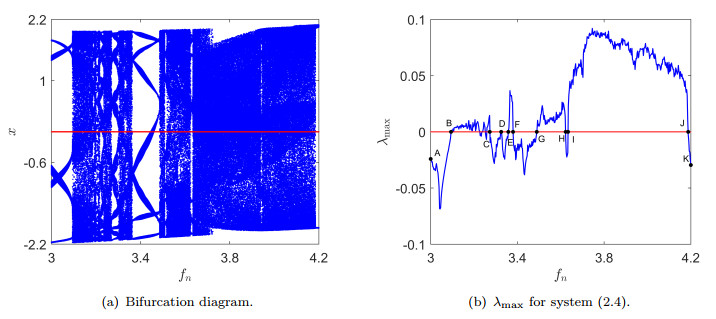

Bifurcation diagram in the
$ (f_{n}, x) $ $ \lambda_{\max} $ $ a_1=3.6, a_2=0.1, d_1=2.2, d_2=0.1, v=1, e_1=0.1, e_2=2, \omega_1=6, \omega_2=\sqrt{10} $ $ f_n\in[3, 4.2] $ -
Figure 4.

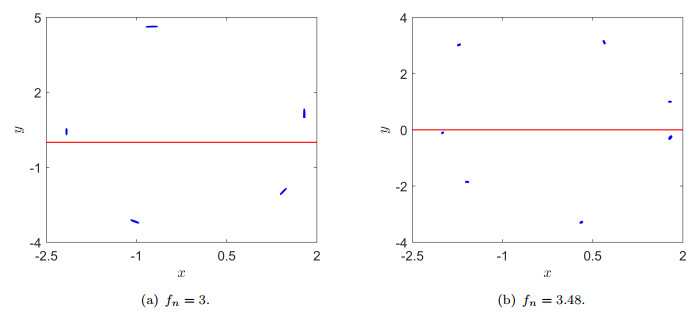

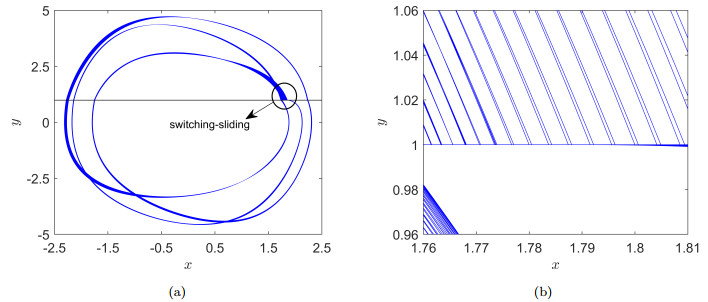

The phase diagram of system (2.4) with
$ a_1=3.6, a_2=0.1, d_1=2.2, d_2=0.1, v=1, e_1=0.1, e_2=2, \omega_1=6, \omega_2=\sqrt{10} $ $ f_{n}=3 $ $ (x,y)\in (-2.5, 2.5)\times(-5, 5) $ -
Figure 5.

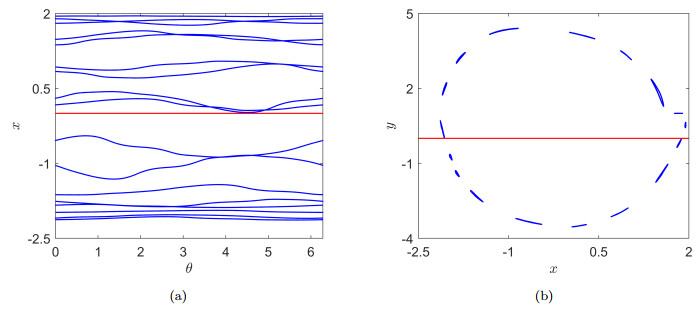

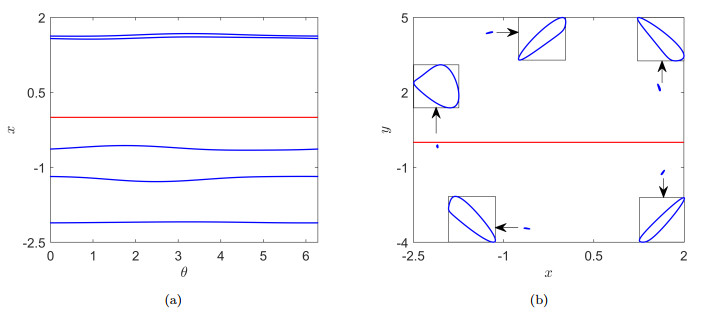

The five-torus (
$ 5T $ $ f_{n}=3.081 $ $ (\theta, x) $ $ (x, y) $ -
Figure 6.

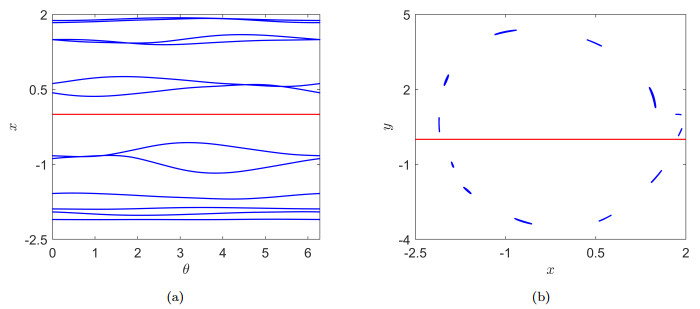

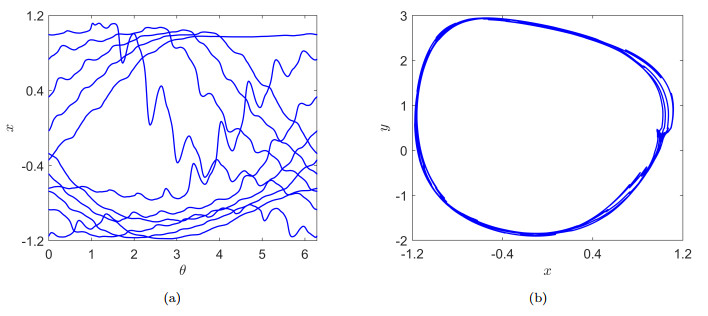

The seventeen-torus (
$ 17T $ $ f_{n}=3.2264 $ $ (\theta, x) $ $ (x, y) $ -
Figure 7.
The twelve-torus (
$ 12T $ $ f_{n}=3.27956 $ $ (\theta, x) $ $ (x, y) $ -
Figure 8.

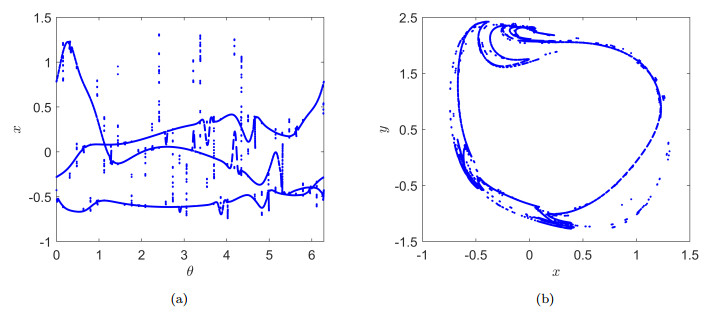

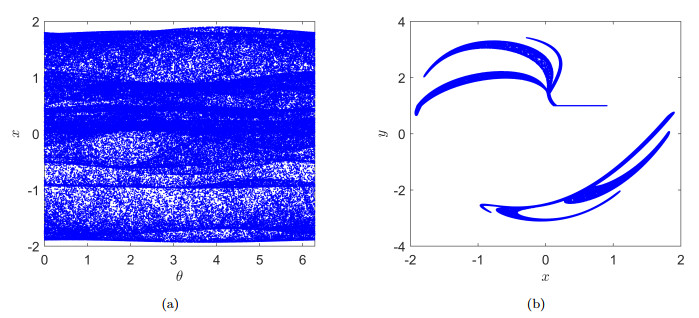

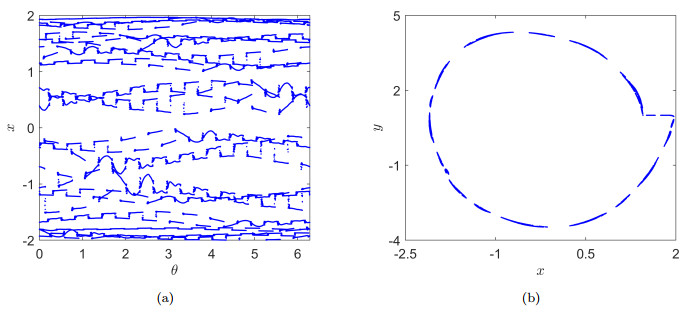

SNA attractor at
$ f_{n}=3.333 $ $ (\theta, x) $ $ (x, y) $ -
Figure 9.

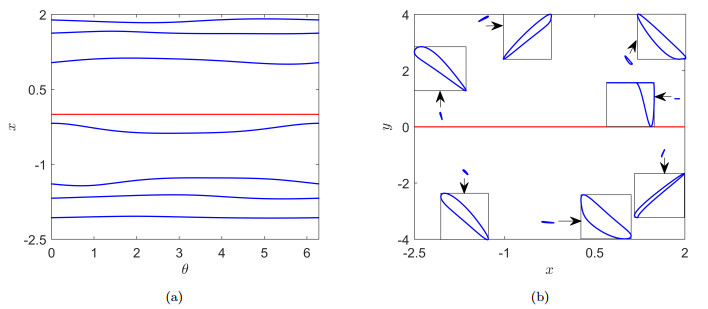

The seven-torus (
$ 7T $ $ f_{n}=3.421 $ $ (\theta, x) $ $ (x, y) $ -
Figure 10.
Chaotic attractor at
$ f_{n}=3.8507 $ $ (\theta, x) $ $ (x, y) $ -
Figure 11.
The nine-torus (
$ 9T $ $ f_{n}=3.634 $ $ (\theta, x) $ $ (x, y) $ -
Figure 12.

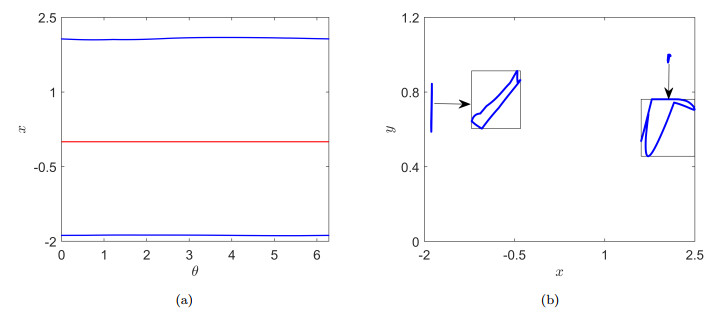

The two-torus (
$ 2T $ $ f_{n}=4.2 $ $ (\theta, x) $ $ (x, y) $ -
Figure 13.

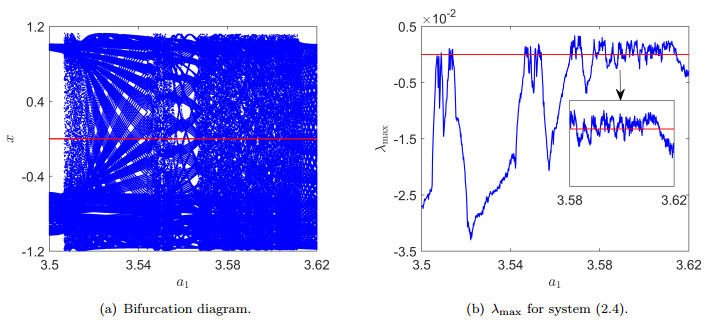

Bifurcation diagram in the
$ (a_1, x) $ $ \lambda_{\max} $ $ a_2=1.23, d_1=2.5, d_2=0.4, f_{n}=1.2, v=0.5, e_1=0.1, e_2=1.9, \omega_1=2, \omega_2=\sqrt{10} $ $ a_{1}\in[3.5, 3.62] $ -
Figure 14.

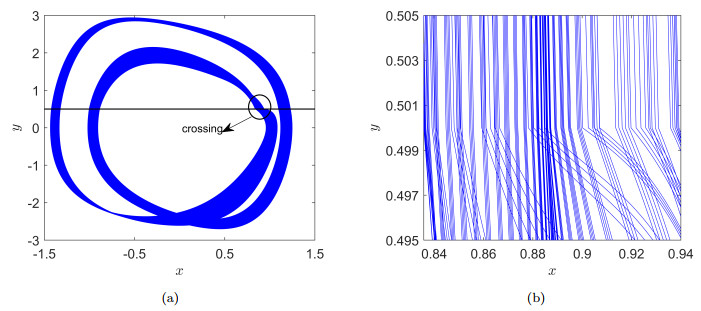

The phase diagram of system (2.4) with
$ a_2=1.23, d_1=2.5, d_2=0.4, f_{n}=1.2, v=0.5, e_1=0.1, e_2=1.9, \omega_1=2, \omega_2=\sqrt{10} $ $ a_{1}=3.5 $ $ (x,y)\in (-1.5, 1.5)\times(-3, 3) $ -
Figure 15.

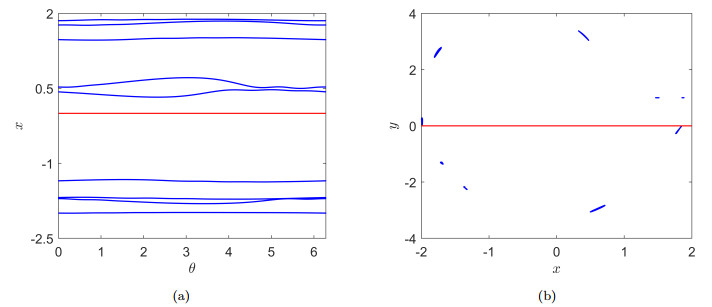

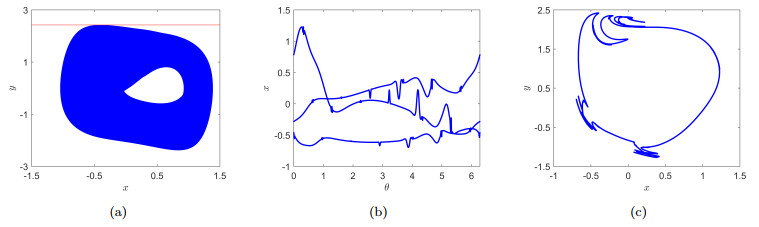

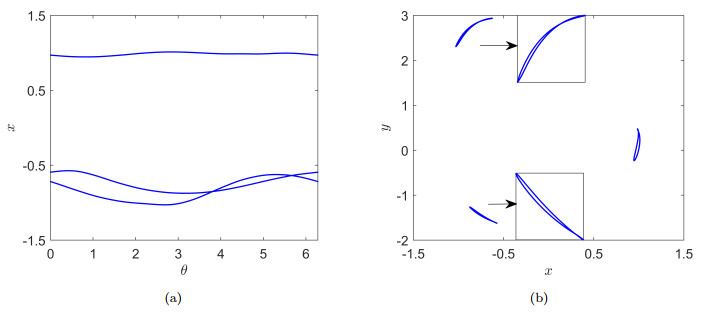

The three-torus (
$ 3T $ $ a_{1}=3.5 $ $ (\theta, x) $ $ (x, y) $ -
Figure 16.

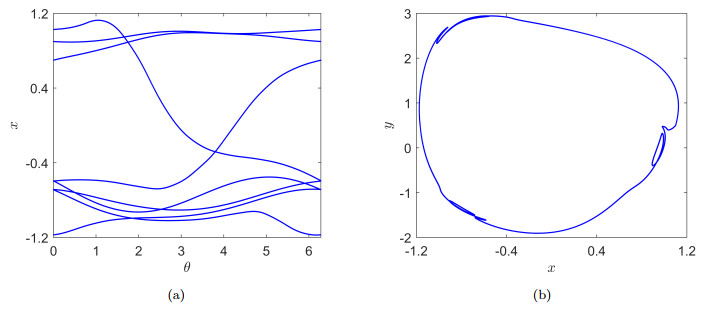

The eight-torus (
$ 8T $ $ a_{1}=3.51 $ $ (\theta, x) $ $ (x, y) $ -
Figure 17.

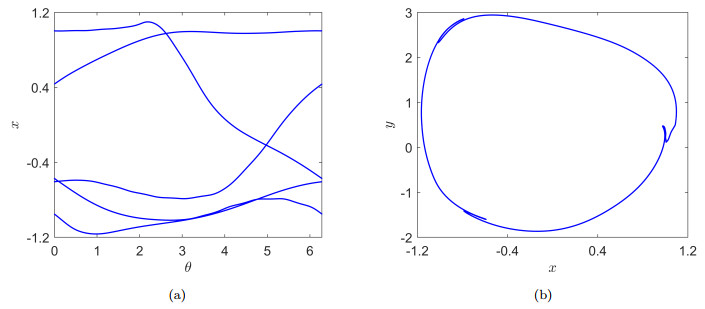

The five-torus (
$ 5T $ $ a_{1}=3.54 $ $ (\theta, x) $ $ (x, y) $ -
Figure 18.

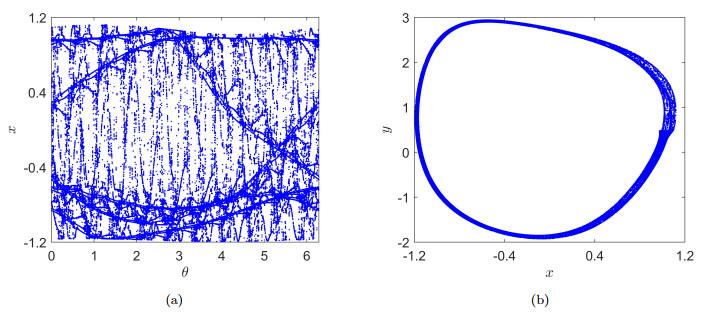

SNA attractor at
$ a_{1}=3.548 $ $ (\theta, x) $ $ (x, y) $ -
Figure 19.

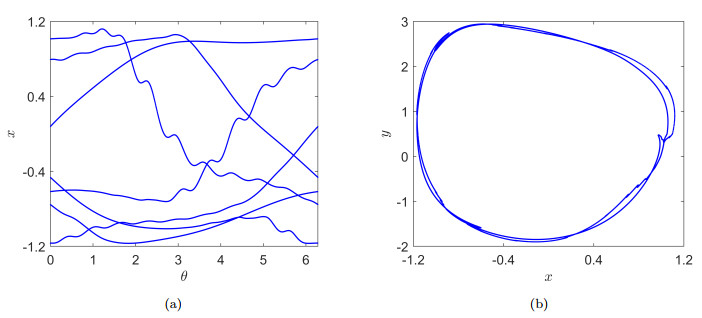

The seven-torus (
$ 7T $ $ a_{1}=3.56 $ $ (\theta, x) $ $ (x, y) $ -
Figure 20.

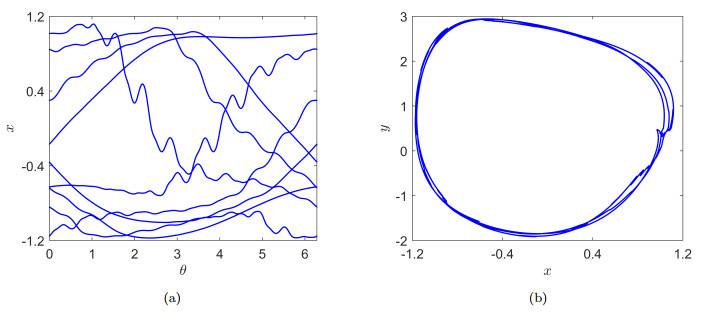

The nine-torus (
$ 9T $ $ a_{1}=3.575 $ $ (\theta, x) $ $ (x, y) $ -
Figure 21.
The eleven-torus (
$ 11T $ $ a_{1}=3.585 $ $ (\theta, x) $ $ (x, y) $ -
Figure 22.

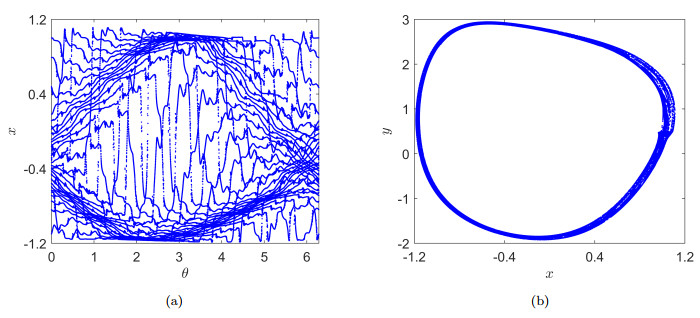

Chaotic attractor at
$ a_{1}=3.61 $ $ (\theta, x) $ $ (x, y) $ -
Figure 23.

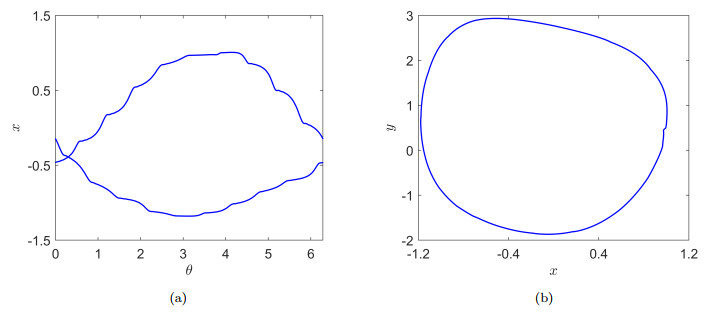

The two-torus (
$ 2T $ $ a_{1}=3.62 $ $ (\theta, x) $ $ (x, y) $ -
Figure 24.
The three-torus (
$ 3T $ $ a_{1}=2.1, a_{2}=3.5, d_{1}=2.5, d_{2}=0.8, f_{n}=1.5, e_{1}=0.285323, e_{2}=2.5, \omega_{1}=3, \omega_{2}=\sqrt{10} $ $ v\approx 2.42228001 $ $ (x, y) $ $ P_{s} $ $ (\theta, x) $ $ P_{s} $ $ (x, y) $ -
Figure 25.

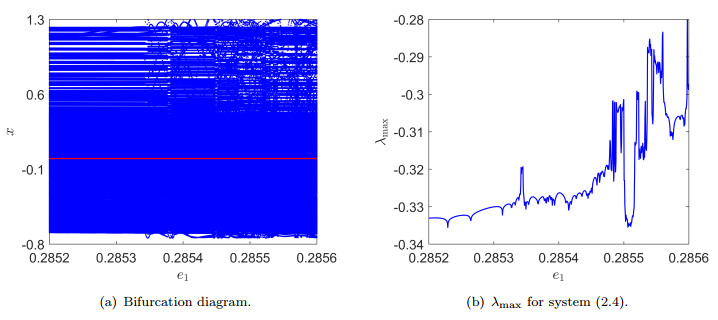

Bifurcation diagram in the
$ (e_1, x) $ $ \lambda_{\max} $ $ a_{1}=2.1, a_{2}=3.5, d_{1}=2.5, d_{2}=0.8, f_{n}=1.5, v\approx 2.42228001,e_{2}=2.5, \omega_{1}=3, \omega_{2}=\sqrt{10} $ $ e_{1}\in[0.2852, 0.2856] $ -
Figure 26.
SNA attractor at
$ e_{1}=0.28535 $ $ (\theta, x) $ $ (x, y) $ -
Figure 27.
The phase diagram of map
$ P_{s} $ $ (x, y) $ -
Figure 28.

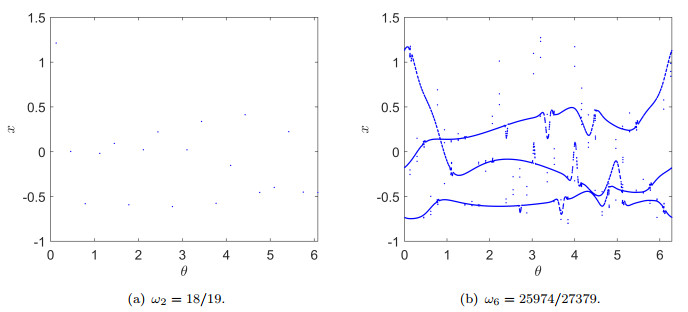

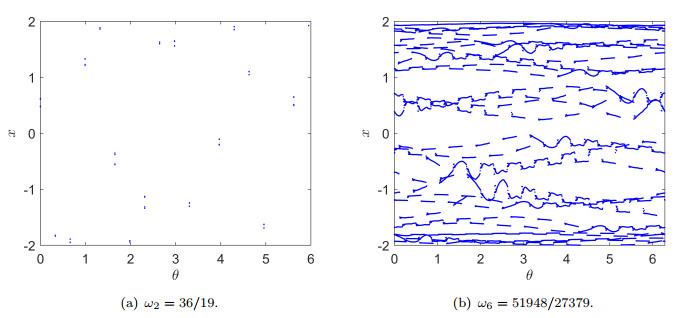

Rational approximation of the SNA for
$ \mathcal{P}=\mathcal{P}_{1} $ $ f_{n}=3.333 $ -

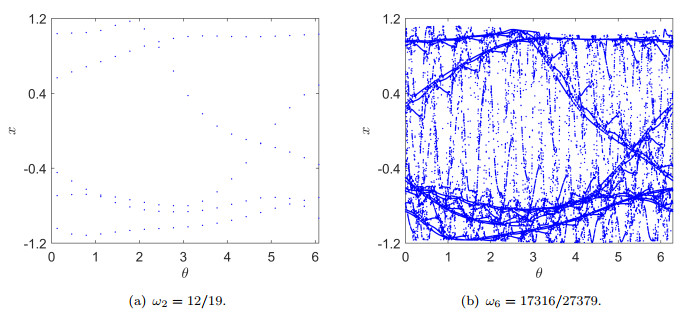

Figure 29.
Rational approximation of the SNA for
$ \mathcal{P}=\mathcal{P}_{2} $ $ a_1=3.548 $ -
Figure 30.
Rational approximation of the SNA for
$ \mathcal{P}=\mathcal{P}_{3} $ $ e_1=0.28535 $ -
Figure 31.

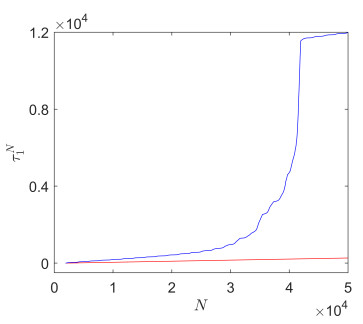

Phase sensitivity of attractors of system (2.4) at
$ \mathcal{P}=\mathcal{P}_{1} $ $ f_{n}=3.081 $ $ f_{n}=3.333 $ -
Figure 32.

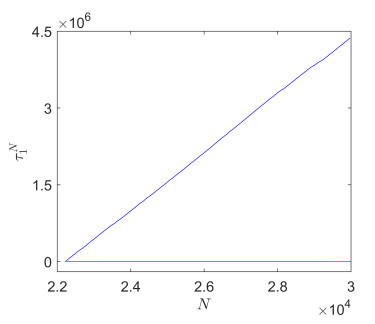

Phase sensitivity of attractors of system (2.4) at
$ \mathcal{P}=\mathcal{P}_{2} $ $ a_{1}=3.5 $ $ a_{1}=3.548 $ -
Figure 33.

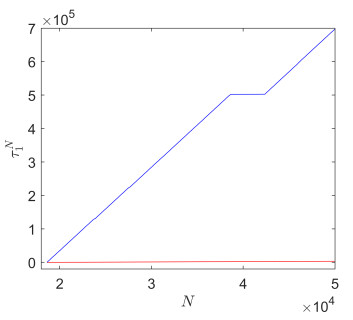

Phase sensitivity of attractors of system (2.4) at
$ \mathcal{P}=\mathcal{P}_{3} $ $ e_{1}=0.285323 $ $ e_{1}=0.28535 $ -
Figure 34.

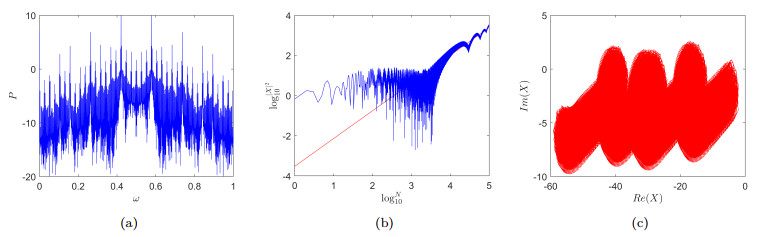

SNA for

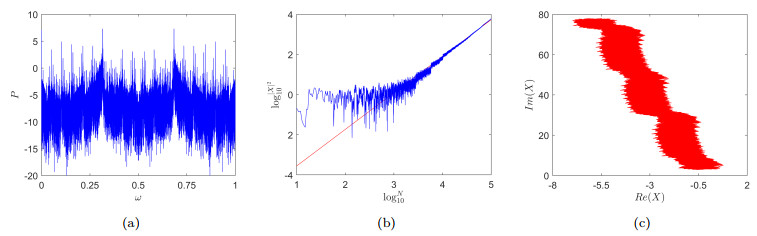

$ \mathcal{P}=\mathcal{P}_{1} $ $ f_{n}=3.333 $ $ P:=P(\omega) $ $ \log_{10} |X|^2:=\log_{10} |X(\omega,N)|^2 $ $ \log_{10} N $ $ ({\rm Re}(X),{\rm Im}(X)) $ -
Figure 35.

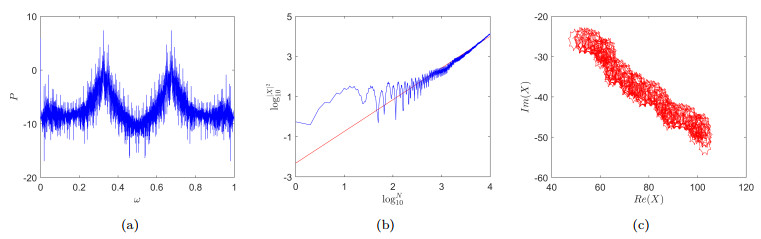

SNA for
$ \mathcal{P}=\mathcal{P}_{2} $ $ a_{1}=3.548 $ $ P:=P(\omega) $ $ \log_{10} |X|^2:=\log_{10} |X(\omega,N)|^2 $ $ \log_{10} N $ $ ({\rm Re}(X),{\rm Im}(X)) $ -
Figure 36.
SNA for
$ \mathcal{P}=\mathcal{P}_{3} $ $ e_{1}=0.28535 $ $ P:=P(\omega) $ $ \log_{10} |X|^2:=\log_{10} |X(\omega,N)|^2 $ $ \log_{10} N $ $ ({\rm Re}(X),{\rm Im}(X)) $ -
Figure 37.

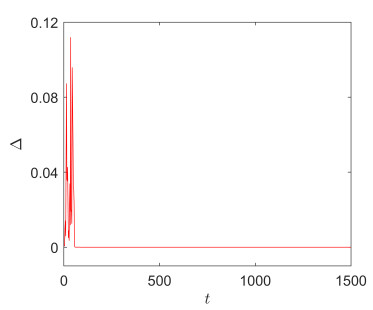

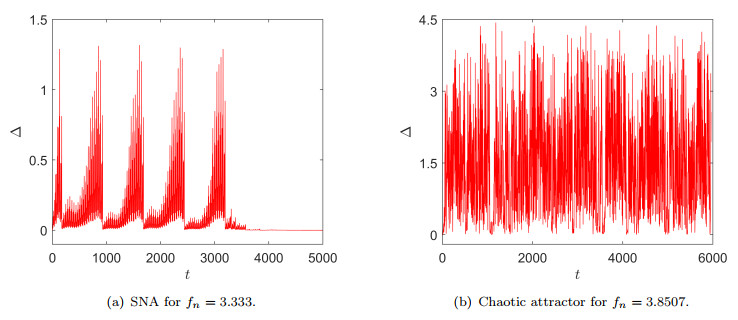

Separation of two nearby trajectories
$ (x_i(t), y_i(t)) $ $ (x_j(t), y_j(t)) $ $ \Delta:=\Delta(t)=\sqrt{(x_i-x_j)^2+(y_i-y_j)^2} $ $ \mathcal{P}=\mathcal{P}_1 $ -
Figure 38.

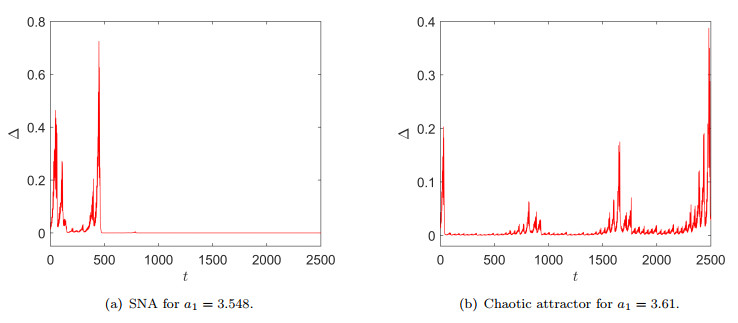

Separation of two nearby trajectories
