| Citation: |
Mati ur Rahman, Sonia Akram. HYBRID ANALYTICAL AND DYNAMICAL ANALYSIS OF A FRACTIONAL GENERALIZED DUFFING MODEL WITH ATANGANA'S CONFORMABLE DERIVATIVE[J]. Journal of Applied Analysis & Computation, 2026, 16(4): 1668-1694. doi: 10.11948/20250233
|
HYBRID ANALYTICAL AND DYNAMICAL ANALYSIS OF A FRACTIONAL GENERALIZED DUFFING MODEL WITH ATANGANA'S CONFORMABLE DERIVATIVE
-
Abstract
In this research, we analyze the fractional generalized reaction Duffing model (FGRDM) within the framework of Atangana’s conformable derivative, providing a novel approach to modeling memory and hereditary characteristics in nonlinear dynamical systems. To determine exact analytical solutions, we utlize a hybrid methodology combining the Riccati sub-equation method and the Riccati–Bernoulli sub-ODE method. This integrated approach successfully yields a wide variety of soliton solutions, such as dark, bright, M-shape, combo, periodic, singular, and mixed hyperbolic wave structures. Beyond the analytical construction of solutions, we present a detailed qualitative analysis of the governed model, both in its perturbed and unperturbed forms, through bifurcation and chaos investigations. To explore the nonlinear behavior and chaotic dynamics, we employ a suite of diagnostic tools, such as Poincaré sections, return maps, Lyapunov exponents, time series analysis, power spectra, strange attractors, recurrence plots, and fractal dimension estimation. These tools help uncover the rich and sensitive dependency of the system on initial conditions and parameter variations, suggesting transitions between periodic, quasi-periodic, and chaotic regimes. The importance of this work lies in its comprehensive analytical and numerical analysis of the FGRDM using fractional calculus. It offers insights into the interplay between memory effects, nonlinearity, and chaos, thereby enhancing the comprehending of complex dynamical systems. Our research have potential applications in nonlinear science, particularly in fields where fractional-order models are used to explain physical phenomena with inherent damping and memory characteristics.
-
-
References
[1] S. Akram, S. Taoufik and M. ur Rahman, Unraveling symmetry, bifurcation dynamics, and exotic attractors analysis to the (3+1)-D modified KdV–Zakharov–Kuznetsov model, Math. Methods Appl. Sci., 2025. DOI: 10.1002/mma.70270. [2] G. Ali, M. Marwan, U. U. Rahman and M. Hleili, Investigation of fractional-ordered tumor–immune interaction model via fractional-order derivative, Fractals, 2024, 32(6), 1–10. [3] R. Ali, Z. Zhang and H. Ahmad, Exploring soliton solutions in nonlinear spatiotemporal fractional quantum mechanics equations: An analytical study, Opt. Quantum Electron., 2024, 56(5), 838. doi: 10.1007/s11082-024-06370-2 [4] F. Badshah, K. U. Tariq, M. Inc and R. Javed, On soliton solutions of Fokas dynamical model via analytical approaches, Opt. Quantum Electron., 2024, 56(5), 743. doi: 10.1007/s11082-023-06198-2 [5] S. Behera, Analysis of traveling wave solutions of two space–time nonlinear fractional differential equations by the first-integral method, Mod. Phys. Lett. B, 2024, 38(4), 2350247. doi: 10.1142/S0217984923502470 [6] S. Behera, Multiple soliton solutions of some conformable fractional nonlinear models using Sine–Cosine method, Opt. Quantum Electron., 2024, 56(7), 1235. doi: 10.1007/s11082-024-06403-w [7] J. Chen, W. Sun and S. Zheng, Encrypting images using multiple fractional-order drive–response systems with practical finite-time synchronization, Math. Comput. Simul., 2025,240,423–437. [8] J. Chen, W. Sun and S. Zheng, New predefined-time stability theorem and synchronization of fractional-order memristive delayed BAM neural networks, Commun. Nonlinear Sci. Numer. Simul., 2025, 108850. [9] Z. Eskandari, Z. Avazzadeh, R. K. Ghaziani and B. Li, Dynamics and bifurcations of a discrete-time Lotka–Volterra model using nonstandard finite difference discretization method, Math. Methods Appl. Sci., 2025, 48(7), 7197–7212. doi: 10.1002/mma.8859 [10] W. A. Faridi, M. A. Bakar, M. B. Riaz, Z. Myrzakulova, R. Myrzakulov and A. M. Mostafa, Exploring the optical soliton solutions of Heisenberg ferromagnet-type of Akbota equation arising in surface geometry by explicit approach, Opt. Quantum Electron., 2024, 56(6), 1046. doi: 10.1007/s11082-024-06904-8 [11] W. A. Faridi, M. Iqbal, M. B. Riaz, S. A. AlQahtani and A.-M. Wazwaz, The fractional soliton solutions of dynamical system arising in plasma physics: The comparative analysis, Alexandria Eng. J., 2024, 95,247–261. doi: 10.1016/j.aej.2024.03.061 [12] A. K. S. Hossain, M. A. Akbar and Md. I. Hossain, Modified simple equation technique for first-extended fifth-order nonlinear equation, medium equal width equation and Caudrey–Dodd–Gibbon equation, J. Umm Al-Qura Univ. Appl. Sci., 2024, 1–10. [13] A. K. S. Hossain, H. Akter and M. A. Akbar, Soliton solutions of DSW and Burgers equations by generalized (G'/G)-expansion method, Opt. Quantum Electron., 2024, 56(4), 653. doi: 10.1007/s11082-024-06319-5 [14] Md. N. Hossain, F. Alsharif, M. M. Miah and M. Kanan, Abundant new optical soliton solutions to the Biswas–Milovic equation with sensitivity analysis for optimization, Mathematics, 2024, 12(10), 1585. doi: 10.3390/math12101585 [15] Md. N. Hossain, M. M. Miah, M. Alosaimi, F. Alsharif and M. Kanan, Exploring novel soliton solutions to the time-fractional coupled Drinfel’d–Sokolov–Wilson equation in industrial engineering using two efficient techniques, Fractal Fract., 2024, 8(6), 352. doi: 10.3390/fractalfract8060352 [16] K. Hosseini, E. Hinçal, F. Alizadeh, D. Baleanu and M. S. Osman, Bifurcation analysis, sensitivity analysis, and Jacobi elliptic function structures to a generalized nonlinear Schrödinger equation, Int. J. Theor. Phys., 2024, 63(12), 306. doi: 10.1007/s10773-024-05829-y [17] Md. A. Iqbal, A. H. Ganie, Md. M. Miah and M. S. Osman, Extracting the ultimate new soliton solutions of some nonlinear time fractional PDEs via the conformable fractional derivative, Fractal Fract., 2024, 8(4), 210. doi: 10.3390/fractalfract8040210 [18] R. Islam, M. A. Kawser, M. S. Rana and M. N. Islam, Mathematical analysis of soliton solutions in space–time fractional Klein–Gordon model with generalized exponential rational function method, PDEs Appl. Math., 2024, 12, 100942. [19] Z. P. Izgi, M. O. Koprulu and H. Koçak, Symbolic computations for exact solutions of fractional partial differential equations with reaction term, in Computation and Modeling for Fractional Order Systems, Academic Press, 2024,199–212. [20] Y. Jazaa, M. Iqbal, A. R. Seadawy, S. Alqahtani, A. A. Rajhi, S. M. Boulaaras and E. A. Az-Zo’bi, On the exploration of solitary wave structures to the nonlinear Landau–Ginsberg–Higgs equation under improved F-expansion method, Opt. Quantum Electron., 2024, 56(7), 1181. doi: 10.1007/s11082-024-06458-9 [21] B. Li, H. Liang and Q. He, Multiple and generic bifurcation analysis of a discrete Hindmarsh–Rose model, Chaos Solitons Fractals, 2021,146, 110856. doi: 10.1016/j.chaos.2021.110856 [22] P. Li, R. Gao, C. Xu, Y. Li, A. Akgül and D. Baleanu, Dynamics exploration for a fractional-order delayed zooplankton–phytoplankton system, Chaos Solitons Fractals, 2023,166, 112975. doi: 10.1016/j.chaos.2022.112975 [23] T. Mahmood, G. Alhawael, S. Akram and M. ur Rahman, Exploring the Lie symmetries, conservation laws, bifurcation analysis and dynamical waveform patterns of diverse exact solution to the Klein–Gordon equation, Opt. Quantum Electron., 2024, 56(12), 1978. doi: 10.1007/s11082-024-07814-5 [24] M. A. S. Murad, W. A. Faridi, M. Iqbal, A. H. Arnous, N. A. Shah and J. D. Chung, Analysis of Kudryashov’s equation with conformable derivative via the modified Sardar sub-equation algorithm, Results Phys., 2024, 60, 107678. doi: 10.1016/j.rinp.2024.107678 [25] M. Nadeem, F. Liu and Y. Alsayaad, Analyzing the dynamical sensitivity and soliton solutions of time-fractional Schrödinger model with beta derivative, Sci. Rep., 2024, 14(1), 8301. doi: 10.1038/s41598-024-58796-z [26] Md. M. Roshid, M. M. Rahman, H.-O. Roshid and Md. H. Bashar, A variety of soliton solutions of time M-fractional nonlinear models via a unified technique, PLoS One, 2024, 19(4), e0300321. doi: 10.1371/journal.pone.0300321 [27] A. Said, A. Bakkar, H. Khan, C. Cattani and F. Tchier, Construction of mechanically preserved optical travelling wave solution for fractional generalized reaction Duffing model, J. Appl. Comput. Mech., 2025. [28] I. Samir and H. M. Ahmed, Retrieval of solitons and other wave solutions for stochastic nonlinear Schrödinger equation with non-local nonlinearity using the improved modified extended tanh-function method, J. Opt., 2024, 1–10. [29] I. Samir, H. M. Ahmed, W. Rabie, W. Abbas and O. Mostafa, Construction optical solitons of generalized nonlinear Schrödinger equation with quintuple power-law nonlinearity using Exp-function, projective Riccati, and new generalized methods, AIMS Math., 2025, 10(2), 3392–3407. doi: 10.3934/math.2025157 [30] M. Shakeel, A. Bibi, A. Zafar and M. Sohail, Solitary wave solutions of Camassa–Holm and Degasperis–Procesi equations with Atangana’s conformable derivative, Comput. Appl. Math., 2023, 42(2), 101. doi: 10.1007/s40314-023-02238-5 [31] M. A. El-Shorbagy, S. Akram and M. ur Rahman, Propagation of solitary wave solutions to (4+1)-dimensional Davey–Stewartson–Kadomtsev–Petviashvili equation arise in mathematical physics and stability analysis, PDEs Appl. Math., 2024, 10, 100669. [32] M. A. El-Shorbagy, S. Akram, M. ur Rahman and H. A. Nabwey, Analysis of bifurcation, chaotic structures, lump and M–W-shape soliton solutions to (2+1) complex modified Korteweg–de Vries system, AIMS Math., 2024, 9(6), 16116–16145. doi: 10.3934/math.2024780 [33] K. U. Tariq, M. Inc and M. S. Hashemi, On the soliton structures to the space–time fractional generalized reaction Duffing model and its applications, Opt. Quantum Electron., 2024, 56(4), 708. doi: 10.1007/s11082-024-06348-0 [34] C. Xu, M. Liao, M. Farman and A. Shehzade, Hydrogenolysis of glycerol by heterogeneous catalysis: A fractional order kinetic model with analysis, MATCH Commun. Math. Comput. Chem., 2024, 91(3), 635–664. doi: 10.46793/match.91-3.635X [35] S. Akram and M. ur Rahman, Multiscale soliton structures and dynamical analysis of nonlinear discrete electrical lattices modeled by the Salerno equation, Nonlinear Dyn., 2025, 113, 32723–32744. doi: 10.1007/s11071-025-11780-2 [36] S. Akram and Mati ur Rahman, Exploring Nonlinear dynamics and soliton structures in the spin reduced Hirota-Maxwell-Bloch system via Atangana’s conformable operator, Chin. J. Phys., 2025, 97, 1514–1538. doi: 10.1016/j.cjph.2025.08.016 [37] S. Akram, M. ur Rahman and L. A. AL-Essa, A comprehensive dynamical analysis of (2+1)-dimensional nonlinear electrical transmission line model with Atangana–Baleanu derivative, Phys. Lett. A, 2025, 130762. [38] Y. Yasmin, H. Humaira, A. S. Alshehry, A. H. Ganie, A. M. Mahnashi and R. Shah, Perturbed Gerdjikov–Ivanov equation: Soliton solutions via Bäcklund transformation, Optik, 2024,298, 171576. doi: 10.1016/j.ijleo.2023.171576 [39] X. Zhang, X. Yang and Q. He, Multi-scale systemic risk and spillover networks of commodity markets in the bullish and bearish regimes, North Am. J. Econ. Finance, 2022, 62, 101766. doi: 10.1016/j.najef.2022.101766 [40] X. Zhu, P. Xia, Q. He, Z. Ni and L. Ni, Coke price prediction approach based on dense GRU and opposition-based learning salp swarm algorithm, Int. J. Bio-Inspired Comput., 2023, 21(2), 106–121. doi: 10.1504/IJBIC.2023.130549 -
-
Figures(18) / Tables(2)
Export File
Citation
Mati ur Rahman, Sonia Akram. HYBRID ANALYTICAL AND DYNAMICAL ANALYSIS OF A FRACTIONAL GENERALIZED DUFFING MODEL WITH ATANGANA'S CONFORMABLE DERIVATIVE[J]. Journal of Applied Analysis & Computation, 2026, 16(4): 1668-1694. doi: 10.11948/20250233
Format
Content
DownLoad:
-

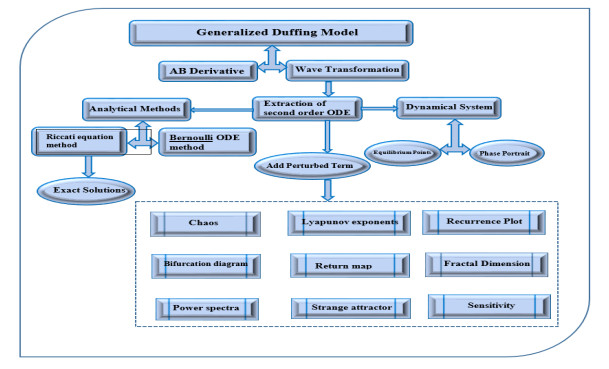

Figure 1.
Graphical abstract.
-

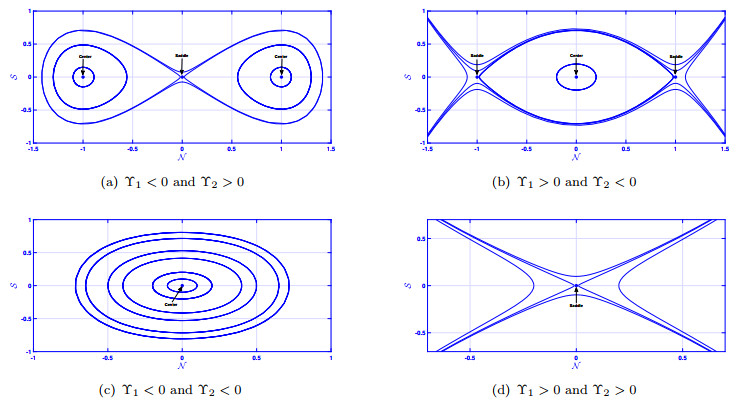

Figure 2.
Phase portraits corresponding to distinct cases of parameter values representing the nature of EPs.
-

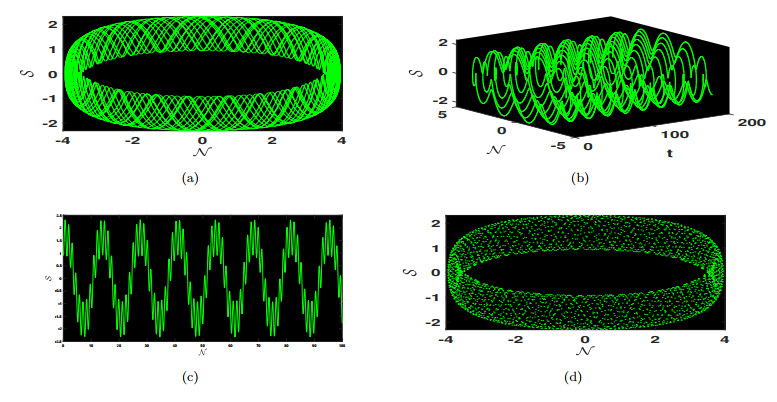

Figure 3.
Physical dynamics of chaos are illustrated using 2D and 3D, time series and poincare phase portraits for system (4.4) obtained by varying the values of
$ \Upsilon_1, \; \Upsilon_2 $ -

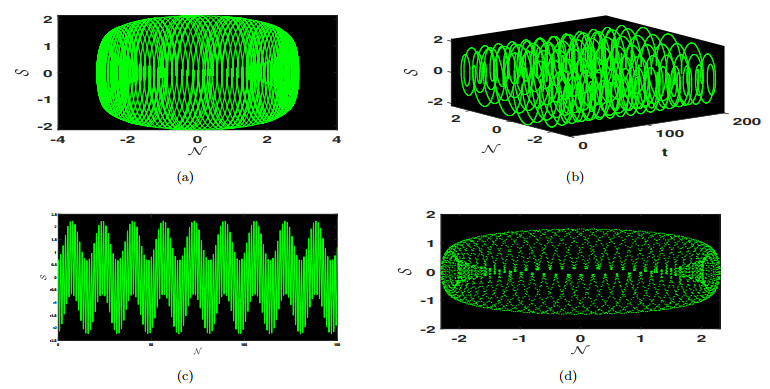

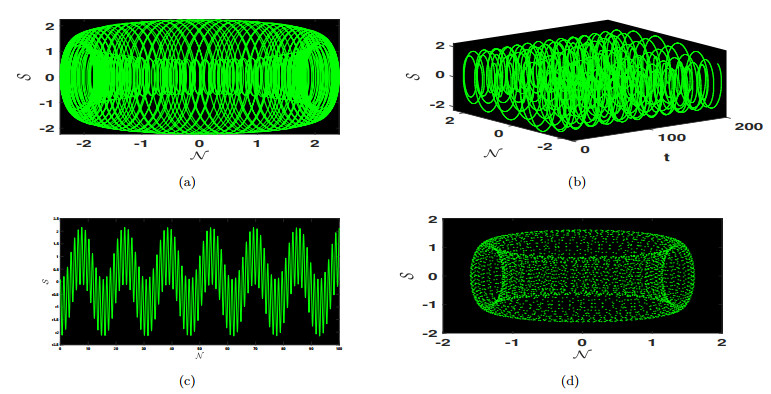

Figure 4.
Physical dynamics of chaos are illustrated using 2D and 3D, time series and poincare phase portraits for system (4.4) obtained by varying the values of
$ \Upsilon_1, \; \Upsilon_2 $ -
Figure 5.
Physical dynamics of chaos are illustrated using 2D and 3D, time series and poincare phase portraits for system (4.4) obtained by varying the values of
$ \Upsilon_1, \; \Upsilon_2 $ -

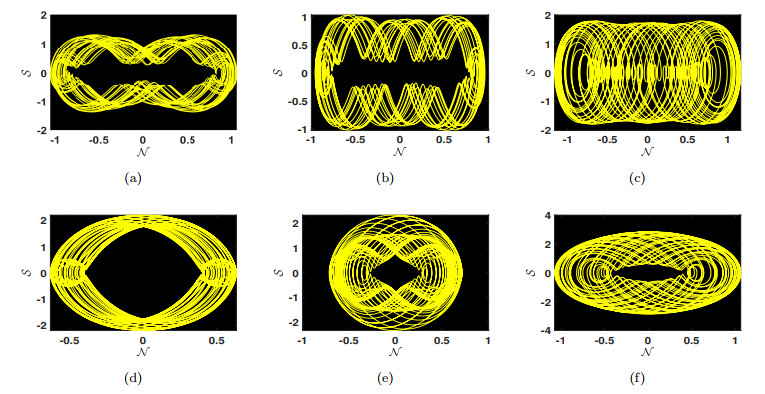

Figure 6.
Physical dynamics of chaos are shown using 2D phase portraits for system (4.4) obtained by varying the values of
$ \Upsilon_1, \; \Upsilon_2 $ -

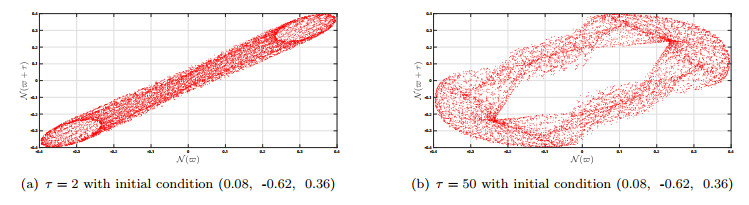

Figure 7.
Physical dynamics of return map analysis of the system described by Eq. (4.1) achieved with the values of parameters as
$ \gamma = -7.73, \; \mu = -2.4, \; \kappa = 4.19, \; \beta=-3.9, \; \delta = 3.9, \; \Upsilon_1= 7.91, \; \Upsilon_2= 9.9 $ -

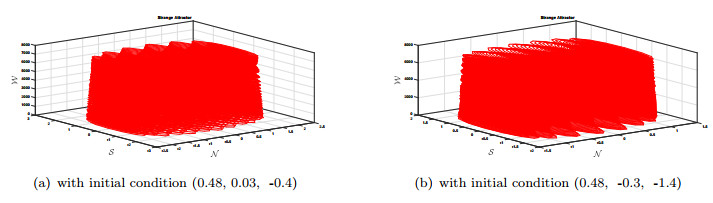

Figure 8.
Physical dynamics of strange attractor analysis of the system described by Eq. (4.1) achieved with the values of parameters as
$ \gamma = -7.73, \; \mu = -2.4, \; \kappa = 4.19, \; \beta=-3.9, \; \delta = 3.9, \; \Upsilon_1= 7.91, \; \Upsilon_2= 9.9 $ -

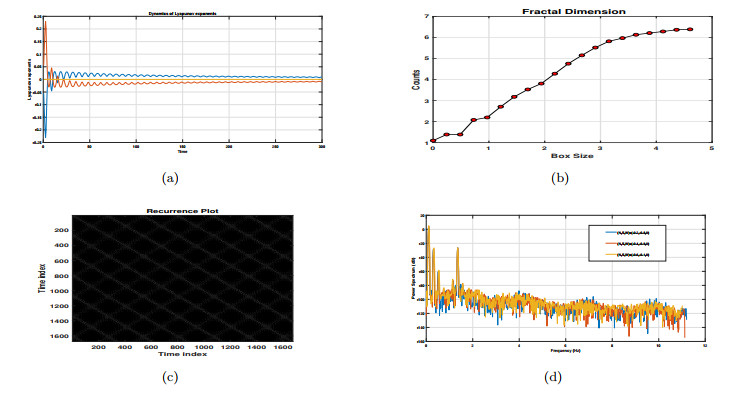

Figure 9.
Physical dynamics of various dynamical characteristics of the system described by Eq. (4.1) achieved with the values of parameters as
$ \gamma = -7.73, \; \mu = -2.4, \; \kappa = 4.19, \; \beta=-3.9, \; \delta = 3.9, \; \Upsilon_1= 2.91, \; \Upsilon_2= 7.21 $ -

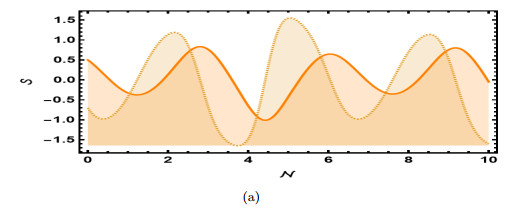

Figure 10.
The system described by Eq. (4.1) was subjected to a sensitivity analysis by choosing two different initial conditions:
$ (0.5, \, 0, \, 0) $ $ (0, \, 0.7, \, 0) $ -

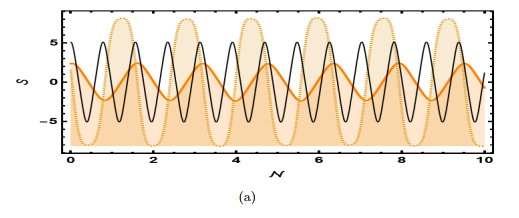

Figure 11.
The system described by Eq. (4.4) was subjected to a sensitivity analysis by choosing three different initial conditions:
$ (2.35, \, 0, \, 0) $ $ (0, \, 1.58, \, 0) $ $ (5.1, \, 0.1, \, 0) $ -

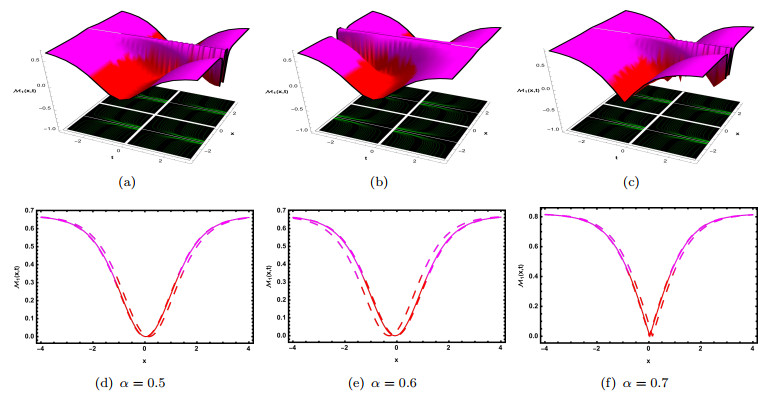

Figure 12.
Physical depiction of dark type solution (3.5) under certain parameter
$ \sigma =-0.5, \; \beta =0.9, \; \kappa =0.7, \; \mu =0.8, \; \delta =0.23 $ -

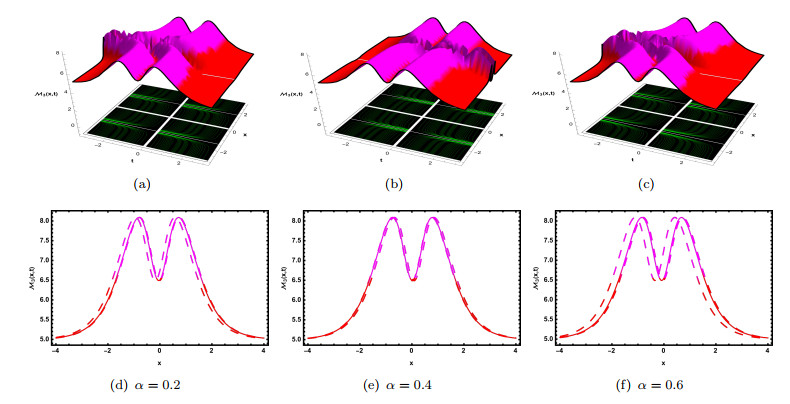

Figure 13.
Physical depiction of
$ M- $ $ \sigma =-1.3, \; \beta =0.6, \; \kappa =0.3, \; \mu =0.2, \; \delta =0.7 $ -
Figure 14.
Physical depiction of periodic solution (3.11) under certain parameter
$ \sigma =2.8, \; \delta =0.7, \; \kappa =0.3, \; Q=0.2, \; R=0.4, \; \mu =0.2 $ -

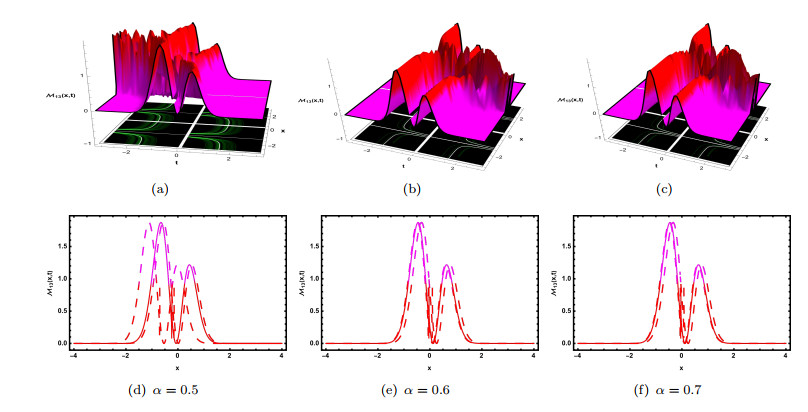

Figure 15.
Physical depiction of hyperbolic type solution (3.17) under certain parameter
$ \sigma =1.8, \; \delta =0.3, \; \kappa =0.8, \; \mu =0.32, \; R=0.2, \; Q=0.9 $ -
Figure 16.
Physical depiction of combo type solution (3.22) under certain parameter
$ \mathfrak{F} =-0.8, \; a=0.9, \; b=0.3, \; \kappa =0.62, \; \mu =0.7, \; c_1=0.3 $ -

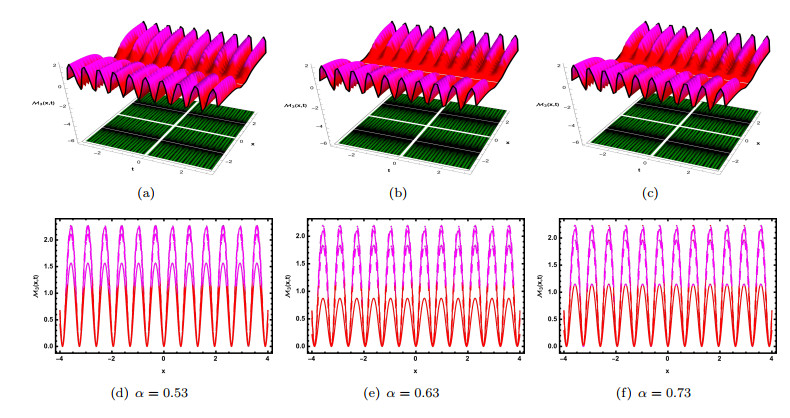

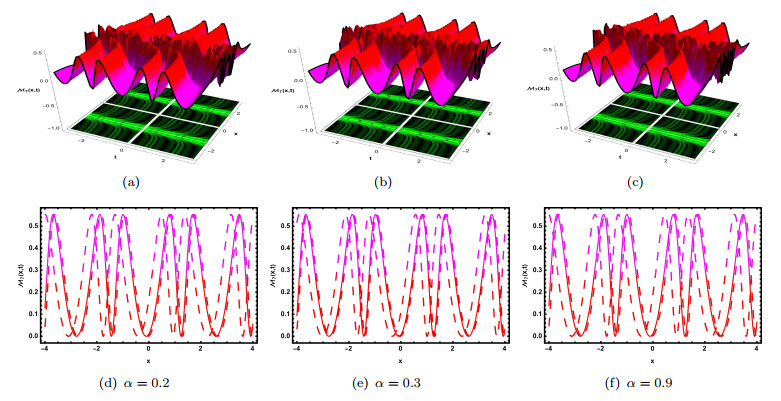

Figure 17.
Physical depiction of periodic solution (3.24) under certain parameter
$ \mathfrak{F} =3.4, \; a=0.8, \; b=0.7, \; \kappa =0.62, \; \mu =0.7, \; c_1=-0.93, \; \beta =0.4 $ -

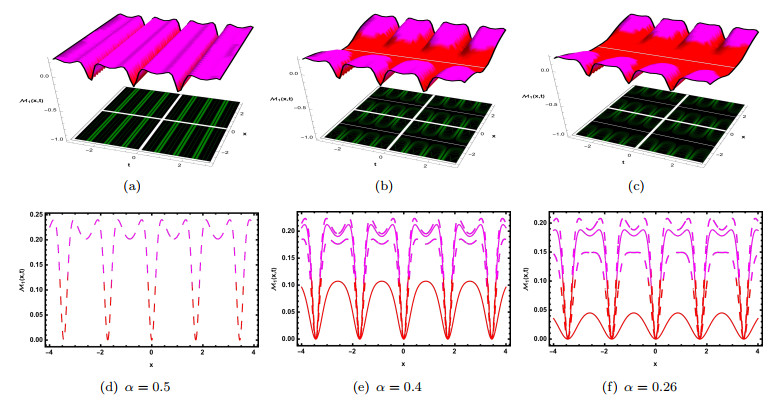

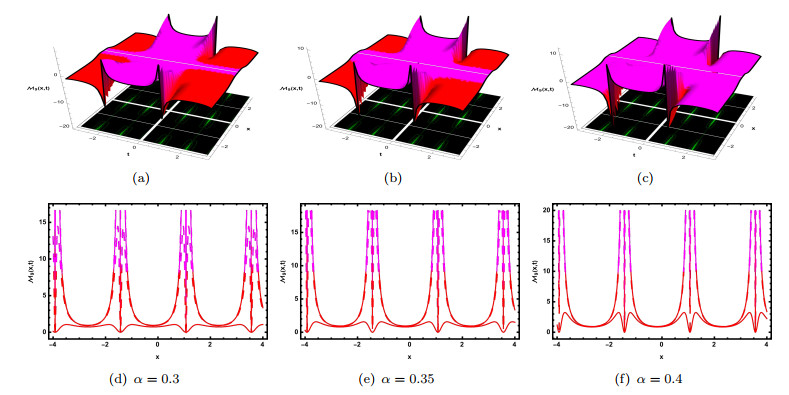

Figure 18.
Physical depiction of mixed trigonometric solution (3.30) under certain parameter
$ \mathfrak{F} =4.4, \; a=0.5, \; b=0.3, \; \gamma =0.2, \; \mu =0.43, \; \delta =0.3, \; \beta =0.4 $
