| Citation: |
Hongyan Sun, Shuhuan Tian, Jianzhi Cao, Pengmiao Hao. STABILITY AND BIFURCATION OF A NEUTRAL-TYPE DELAY DIFFERENTIAL GAME SYSTEM IN GREEN SUPPLY CHAINS: A GLOBAL SENSITIVITY ANALYSIS[J]. Journal of Applied Analysis & Computation, 2026, 16(5): 2668-2704. doi: 10.11948/20250326
|
STABILITY AND BIFURCATION OF A NEUTRAL-TYPE DELAY DIFFERENTIAL GAME SYSTEM IN GREEN SUPPLY CHAINS: A GLOBAL SENSITIVITY ANALYSIS
-
Abstract
This paper investigates a two-echelon dual-channel green supply chain via a neutral delay differential game model, focusing on supply chain coordination and system stability analysis. We compare equilibrium outcomes under centralized and decentralized decision-making, propose a transfer payment mechanism for coordination, and explore stability properties using eigenvalue methods, Sobol global sensitivity analysis, and numerical simulations. Results show that centralized decision-making outperforms decentralized decision-making in green technology level and total supply chain profit, while the transfer payment mechanism achieves Pareto improvements within a specific parameter range. Stability analysis identifies the discount rate, consumer green sensitivity, and price weight coefficient as dominant stability determinants: The price weight coefficient acts as a critical stability switch inducing Hopf bifurcation, and the discount rate extended to the real number domain directly determines equilibrium stability type. Simulations visualize stability regions and oscillation behaviors, while global sensitivity analysis quantifies parameter influences, confirming the discount rate and consumer green sensitivity as the most impactful factors. Numerical simulations further verify the theoretical findings and establish a clear link between parameter sensitivity and system stability.
-
-
References
[1] S. İ. Araz, Analysis of a covid-19 model: Optimal control, stability and simulations, Alex. Eng. J., 2021, 60(1), 647–658. doi: 10.1016/j.aej.2020.09.058 [2] İ. A. Arık and S. İ. Araz, Delay differential equations with fractional differential operators: Existence, uniqueness and applications to chaos, Commun. Anal. Mech., 2024, 16(1), 169–192. doi: 10.3934/cam.2024008 [3] C. Arteta, A. Kose, M. Stocker and T. Taskin, Negative Interest Rate Policies: Sources and Implications (English), Policy Research Working Paper No. WPS7791, Washington, D.C., World Bank Group, 2016. [4] L. Bo, M. Zhu, Y. Jiang and Z. Li, Pricing policies of a competitive dual-channel green supply chain, J. Clean. Prod., 2016, 112(3), 2029–2042. [5] S. Cecchetti, The case of the negative nominal interest rates: New estimates of the term structure of interest rates during the great depression, J. Polit. Econ., 1988, 96(6), 1111–1141. doi: 10.1086/261580 [6] J. Chen, H. Zhang and Y. Sun, Implementing coordination contracts in a manufacturer stackelberg dual-channel supply chain, Omega, 2012, 40(5), 571–583. doi: 10.1016/j.omega.2011.11.005 [7] J. Dai, D. Cantor and F. Montabon, How environmental management competitive pressure affects a focal firm's environmental innovation activities: A green supply chain perspective, J. Bus. Logist., 2015, 36(3), 242–259. doi: 10.1111/jbl.12094 [8] Y. Dou, Q. Zhu and J. Sarkis, Green multi-tier supply chain management: An enabler investigation, J. Purch. Supply Manag., 2018, 24(2), 95–107. doi: 10.1016/j.pursup.2017.07.001 [9] Y. Du and C. Zhang, The effects of delays on stability and spatiotemporal dynamics in a diffusive nutrient-phytoplankton model, Chaos Solitons Fractals, 2025, 199, 116809. doi: 10.1016/j.chaos.2025.116809 [10] C. Ghisetti and F. Quatraro, Green technologies and environmental productivity: A cross-sectoral analysis of direct and indirect effects in italian regions, Ecol. Econ., 2017, 132, 1–13. [11] M. Guo, J. Nowakowska-Grunt, V. Gorbanyov and M. Egorova, Green technology and sustainable development: Assessment and green growth frameworks, Sustainability, 2020, 12(16), 6571. doi: 10.3390/su12166571 [12] Z. Guo, J. Liu, B. Li and T. Zhang, Stability analysis of a delayed predator-prey model with generalist predator and fear effect, Chaos Solitons Fractals, 2026, 202, 117448. doi: 10.1016/j.chaos.2025.117448 [13] M. Johari, S. -M. Hosseini-Motlagh and M. Rasti-Barzoki, An evolutionary game theoretic model for analyzing pricing strategy and socially concerned behavior of manufacturers, Transport. Res. E. -Log., 2019, 128, 506–525. doi: 10.1016/j.tre.2019.07.006 [14] Y. kuang, Delay Differential Equations: With Applications in Population Dynamics, Academic Press, Boston, 1993. [15] C. -L. Li, Quantifying supply chain ineffectiveness under uncoordinated pricing decisions, Oper. Res. Lett., 2008, 36(1), 83–88. doi: 10.1016/j.orl.2007.04.005 [16] S. Li, S. Yuan, Z. Jin and H. Wang, Bifurcation analysis in a diffusive predator-prey model with spatial memory of prey, Allee effect and maturation delay of predator, J. Differ. Equ., 2023, 357, 32–63. doi: 10.1016/j.jde.2023.02.009 [17] T. Li and J. Ma, Complexity analysis of the dual-channel supply chain model with delay decision, Nonlinear Dyn., 2014, 78(1), 2617–2626. [18] L. Liu, Research on the management system of enterprises using modern logistics supply chain theory, Procedia Eng., 2021, 24, 721–725. [19] P. Liu and Z. Ali, Hamacher interaction aggregation operators for complex intuitionistic fuzzy sets and their applications in green supply chain management, Complex Intell. Syst., 2024, 10(3), 3853–3871. doi: 10.1007/s40747-023-01329-4 [20] Y. Lv, The spatially homogeneous Hopf bifurcation induced jointly by memory and general delays in a diffusive system, Chaos Solitons Fractals, 2022, 156, 111826. doi: 10.1016/j.chaos.2022.111826 [21] Y. Lv, Global boundedness and spatially inhomogeneous hopf bifurcation in a delayed predatoršcprey model with dual taxis, Chaos Solitons Fractals, 2025, 201, 117369. doi: 10.1016/j.chaos.2025.117369 [22] M. D. McKay, R. J. Beckman and W. J. Conover, A comparison of three methods for selecting values of input variables in the analysis of output from a computer code, Technometrics, 1979, 21(2), 239–245. [23] A. Mohsin, S. Far Abid Hossain, H. Tushar, et al., Differential game model and coordination model for green supply chain based on green technology research and development, Heilyon, 2021, 7(8), e07811. doi: 10.1016/j.heliyon.2021.e07811 [24] A. Mohsin, H. Lei and S. Far Abid Hossain, Impact of covid-19 pandemic on consumer economy: Countermeasures analysis, SAGE Open, 2021, 11(2), 1–10. [25] A. Mohsin, H. Lei, S. Far Abid Hossain, et al., Operation and coordination mechanism of closed-loop supply chain considering corporate social responsibility behavior consciousness, Cogent Bus. Manag., 2020, 7(1), 1845937. doi: 10.1080/23311975.2020.1845937 [26] Q. Qi, J. Wang and Q. Bai, Pricing decision of a two-echelon supply chain with one supplier and two retailers under a carbon cap regulation, J. Clean. Prod., 2017, 151, 286–302. doi: 10.1016/j.jclepro.2017.03.011 [27] K. Rahmani and M. Yavari, Pricing policies for a dual-channel green supply chain under demand disruptions, Comput. Ind. Eng., 2019, 127, 493–510. doi: 10.1016/j.cie.2018.10.039 [28] L. Redding, Negative nominal interest rates and the liquidity premium, Econ. Lett., 1999, 62(2), 213–216. doi: 10.1016/S0165-1765(98)00225-0 [29] K. N. Salam, D. P. Ar and M. Rifai, Member card and social media promotion strategies on customer loyalty, J. Manaj. Bisnis, 2026, 13(1), 402–417. doi: 10.33096/jmb.v13i1.1621 [30] A. Saltelli, P. Annoni, I. Azzini, et al., Variance based sensitivity analysis of model output. design and estimator for the total sensitivity index, Comput. Phys. Commun., 2010, 181(2), 259–270. doi: 10.1016/j.cpc.2009.09.018 [31] F. Si, J. Wang and X. Zou, Stability analysis of price game model with delay in dual-channel supply chain, J. Wuhan Univ. Technol., 2018, 40(4), 413–418. [32] I. M. Sobol, Global sensitivity indices for nonlinear mathematical models and their monte carlo estimates, Math. Comput. Simul., 2001, 55(1–3), 271–280. [33] H. Song and X. Gao, Green supply chain game model and analysis under revenue-sharing contract, J. Clean. Prod., 2018, 170, 183–192. doi: 10.1016/j.jclepro.2017.09.138 [34] J. Song, Y. He and Y. Duan, Loss leader strategy in the live streaming considering cross-product and cross-channel spillover effects, Int. J. Prod. Econ., 2026, 294, 109512. [35] Q. Song and F. Yi, Spatiotemporal patterns and bifurcations of a delayed diffusive predator-prey system with fear effects, J. Differ. Equ., 2024, 388, 151–187. doi: 10.1016/j.jde.2024.01.003 [36] M. Subaşi and S. İ. Araz, Numerical regularization of optimal control for the coefficient function in a wave equation, Iran. J. Sci. Technol. Trans. Sci., 2019, 43(1), 2325–2333. [37] E. Tirkolaee, A. Goli, M. Bakhsi and I. Mahdavi, A robust multi-trip vehicle routing problem of perishable products with intermediate depots and time windows, Numer. Algebra Control Optim., 2017, 7(4), 417–433. doi: 10.3934/naco.2017026 [38] J. G. Vargas-Hernández, Strategic transformational transition of green economy, green growth and sustainable development: An institutional approach, Int. J. Environ. Sustain. Green Technol., 2020, 11(1), 34–56. [39] A. Wan and X. Zou, Hopf bifurcation analysis for a model of genetic regulatory system with delay, J. Math. Anal. Appl., 2009, 356(2), 464–476. doi: 10.1016/j.jmaa.2009.03.037 [40] N. Wang, L. Qi, M. Bessane and M. Hao, Global hopf bifurcation of a two-delay epidemic model with media coverage and asymptomatic infection, J. Differ. Equ., 2023, 369, 1–40. [41] W. Wang, L. Fan, P. Ma, et al., Reward-penalty mechanism in a closed-loop supply chain with sequential manufacturers' price competition, J. Clean. Prod., 2017, 168(1), 118–130. [42] L. Xu, K. Mathiyazhagan, K. Govindan, et al., Multiple comparative studies of green supply chain management: Pressures analysis, Resour. Conserv. Recycl., 2013, 78(1), 26–35. [43] X. Yu, Y. Lan and R. Zhao, Strategic green technology innovation in a two-stage alliance: Vertical collaboration or co-development?, Omega, 2021, 98, 102116. doi: 10.1016/j.omega.2019.102116 [44] J. Zeng and B. Li, Research on cooperation strategy between government and green supply chain based on differential game, Open Math., 2019, 17(1), 828–855. doi: 10.1515/math-2019-0066 [45] J. Zhao and N. Sun, Government subsidies-based profits distribution pattern analysis in closed-loop supply chain using game theory, Neural. Comput. Appl., 2020, 32, 1715–1724. doi: 10.1007/s00521-019-04245-2 [46] G. Zhou and C. Ju, Effect analysis of service supply chain with dynamic game under the condition of sensitive demand, Math. Probl. Eng., 2015, 2015, 278094. [47] Y. Zhou and X. Ye, Differential game model of joint emission reduction strategies and contract design in a dual-channel supply chain, J. Clean. Prod., 2018, 190(20), 592–607. [48] Q. Zhu, J. Sarkis and K. -H. Lai, Institutional-based antecedents and performance outcomes of internal and external green supply chain management practices, J. Purch. Supply Manag., 2013, 19(2), 106–117. doi: 10.1016/j.pursup.2012.12.001 [49] Y. Zu, L. Chen and Y. Fan, Research on low-carbon strategies in supply chain with environmental regulations based on differential game, J. Clean. Prod., 2018, 177(10), 527–546. [50] R. M. Zulqarnain, W. X. Ma, I. Siddique, H. Ahmad and S. Askar, An intelligent MCGDM model in green suppliers selection using interactional aggregation operators for interval-valued pythagorean fuzzy soft sets, Comput. Model. Eng. Sci., 2024, 139(2), 1829–1862. -
-
Figures(7) / Tables(13)
Export File
Citation
Hongyan Sun, Shuhuan Tian, Jianzhi Cao, Pengmiao Hao. STABILITY AND BIFURCATION OF A NEUTRAL-TYPE DELAY DIFFERENTIAL GAME SYSTEM IN GREEN SUPPLY CHAINS: A GLOBAL SENSITIVITY ANALYSIS[J]. Journal of Applied Analysis & Computation, 2026, 16(5): 2668-2704. doi: 10.11948/20250326
Format
Content
DownLoad:
-

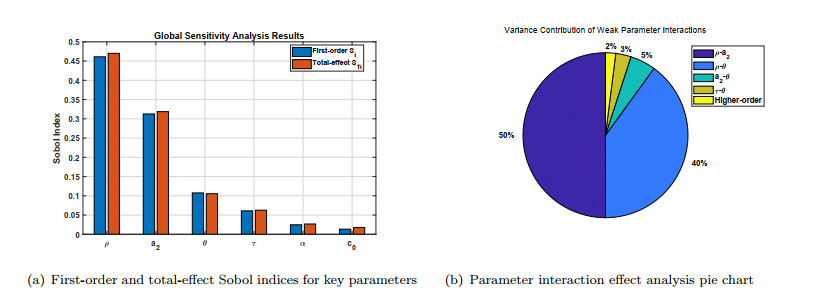

Figure 1.
Global sensitivity analysis of key parameters in the dual channel green supply chain.
-

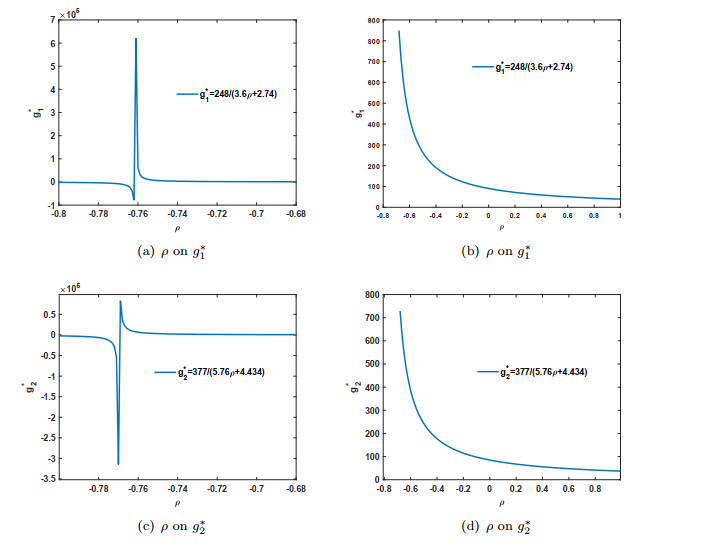

Figure 2.
The influence of
$ \rho $ $ g_{1}^{*} $ $ \rho $ $ g_{2}^{*} $ -

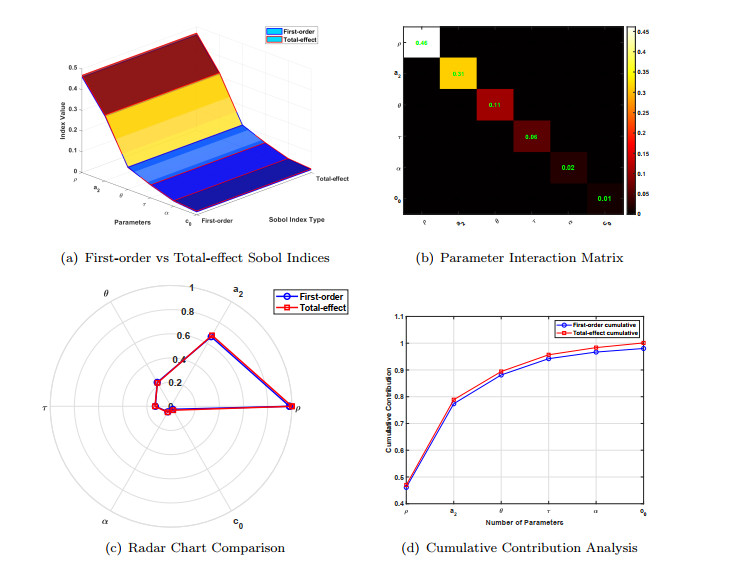

Figure 3.
The 3D visual graphs of the global sensitivity analysis results.
-

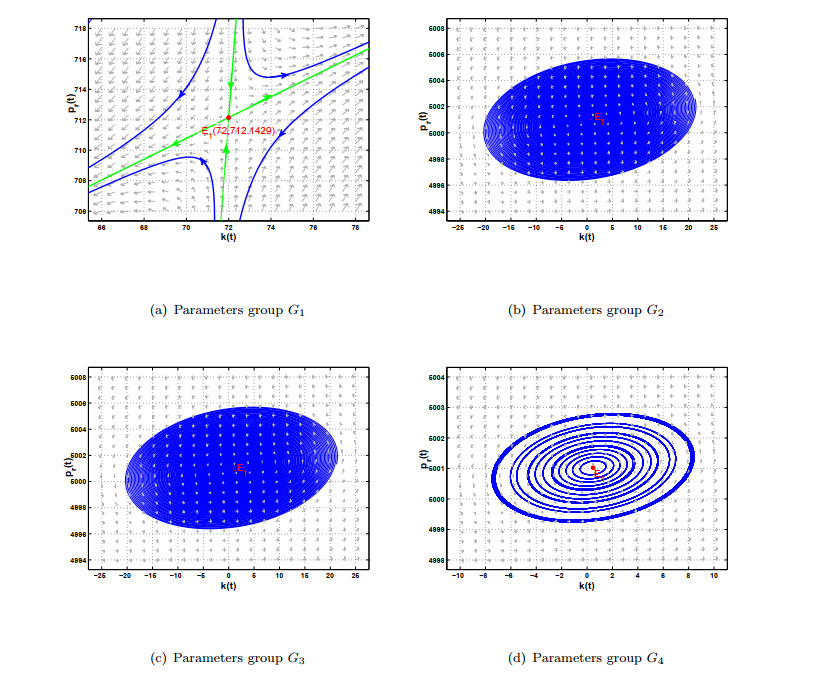

Figure 4.
Local stability of the equilibrium
$ E_{1} $ -

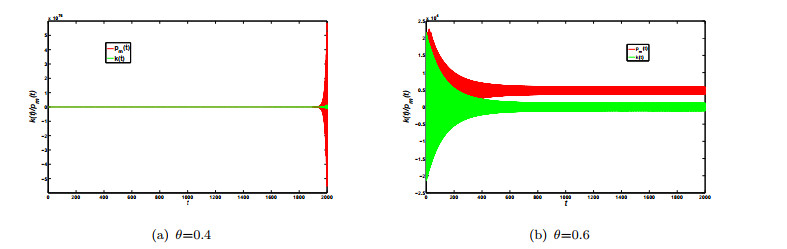

Figure 5.
Change of stability for
$ E_{1} $ $ \theta $ -

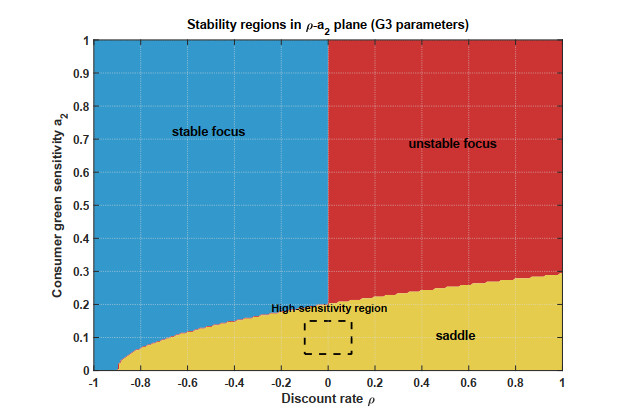

Figure 6.
Stability regions in the
$ \rho $ $ a_2 $ $ \theta=0.6 $ $ \tau=5 $ $ G_{3} $ -

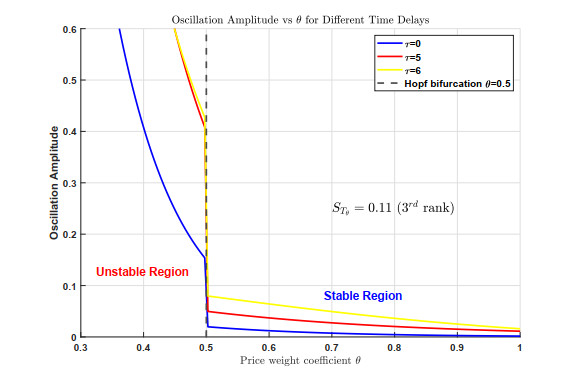

Figure 7.
Oscillation amplitude versus
$ \theta $ $ \tau $ $ G_{3} $
