STRUCTURAL BIFURCATION OF DIVERGENCE-FREE VECTOR FIELDS NEAR NON-SIMPLE DEGENERATE POINTS WITH SYMMETRY
-
Abstract
In this study, topological features of an incompressible two-dimensional flow far from any boundaries is considered. A rigorous theory has been developed for degenerate streamline patterns and their bifurcation. The homotopy invariance of the index is used to simplify the differential equations of fluid flows which are parameter families of divergence-free vector fields. When the degenerate flow pattern is perturbed slightly, a structural bifurcation for flows with symmetry is obtained. We give possible flow structures near a bifurcation point. A flow pattern is found where a degenerate cusp point appears on the x-axis. Moreover, we also show that bifurcation of the flow structure near a non-simple degenerate critical point with double symmetry is generic away from boundaries. Finally, we give an application of the degenerate flow patterns emerging when index 0 and -2 in a double lid driven cavity and in two dimensional peristaltic flow. -
-
References
[1] Z. Asgard and N. Ali, Streamline topologies and their bifurcations for mixed convective peristaltic flow, AIP Advances, 2015, 5, 097142. doi: 10.1063/1.4931088 [2] A. Balcı, M. Andersen, M. C. Thompson, and M. Brøns, Codimension three bifurcation of streamline patterns close to a no-slip wall: A topological description of boundary layer eruption, Phys. Fluids, 2015, 27, 053603. doi: 10.1063/1.4921527 [3] A. Balcı, M. Brøns, M. A. Herrada and V. N. Shtern, Patterns of a slow air-water flow in a semispherical container, European Journal of Mechanics, B/Fluids, 2016, 58, 053603. [4] A. Beltrán, E. Ramos, S. Cuevas, M. Brøns, Bifurcation analysis in a vortex flow generated by an oscillatory magnetic obstacle, Physical Review E, 2010, 81(3), 036309. doi: 10.1103/PhysRevE.81.036309 [5] H. Bilgil and F. Gürcan, Effect of the Reynolds number on flow bifurcations and eddy genesis in a lid-driven sectorial cavity, Japan J. Indust. Appl. Math., 2016, 33(2), 343-360. doi: 10.1007/s13160-016-0212-1 [6] A. V. Bisgaard, M. Brøns and J. N. Sørensen, Vortex breakdown generated by off-axis bifurcation in a circular cylinder with rotating covers, Acta Mech., 2006, 187(1), 75-83. [7] D. Bozkurt, A. Deliceoğlu, and T. Şengül, Interior structural bifurcation of 2D symmetric incompressible flows, arXiv: 1712.01784, 2017. [8] M. Brøns and J. N. Hartnack, Streamline topologies near simple degenerate critical points in two-dimensional flow away from boundaries, Phys. Fluids, 1999, 11(2), 314-324. [9] M. Brøns, L. K. Voigt and J. N. Sørensen, Topology of vortex breakdown bubbles in a cylinder with a rotating bottom and a free surface, J. Fluid Mech., 2001, 428, 133-148. doi: 10.1017/S0022112000002512 [10] M. Brøns and A. V. Bisgaard, Bifurcation of vortex breakdown patterns in a circular cylinder with two rotating covers, J. Fluid Mech., 2006, 568, 329-349. doi: 10.1017/S0022112006002424 [11] M. Brøns, M. Jakobsen, K. Niss, A. V. Bisgaard and L. K. Voigt, Streamline topology in the near wake of a circular cylinder at moderate Reynolds numbers, J. Fluid Mech., 2007, 584, 23-43. doi: 10.1017/S0022112007006234 [12] C. H. Chan, M. Czubak and T. Yoneda, An ODE for boundary layer separation on a sphere and a hyperbolic space, Physica D: Non-linear Phenomena, 2014, 282, 34-38. doi: 10.1016/j.physd.2014.05.004 [13] M. Dam, J. J. Rasmussen, V. Naulin and M. Brøns, Topological bifurcations in the evolution of coherent structures in a convection model, Physics of Plasmas, 2017, 24(8), 082301. doi: 10.1063/1.4993613 [14] A. Deliceoğlu and F. Gürcan, Streamline topology near non-simple degenerate critical points in two dimensional flow with symmetry about an axis, J. Fluid Mech., 2008, 606, 417-432. doi: 10.1017/S0022112008001997 [15] F. Gürcan and A. Deliceoğlu, Streamline topologies near non-simple degenerate points in two dimensional flows with double symmetry away from boundaries and an application, Physics of Fluids, 2005, 17, 093116. [16] F. Gürcan, and A. Deliceoğlu, Saddle connections near degenerate critical points in Stokes flow within cavities, Appl. Math. Comput., 2006, 172(2), 1133-1144. [17] F. Gürcan, Flow bifurcations in rectangular, lid-driven, cavity flows, Ph.D Thesis, University of Leeds, 1997. [18] F. Gürcan, H. Bilgil and A. ahin, Bifurcations and eddy genesis of Stokes flow within a sectorial cavity PART II: Co-moving lids, European Journal of Mechanics, B/Fluids, 2016, 56, 200-210. doi: 10.1016/j.euromechflu.2015.02.008 [19] M. Ghil, T. Ma and S. Wang, Structural bifurcation of 2-D incompressible flows, Indiana University Mathematics Journal, 2001, 50(1), 159-180. doi: 10.1512/iumj.2001.50.2183 [20] M. Ghil, T. Ma and S. Wang, Structural bifurcation of 2-D nondivergent flows with dirichlet boundary conditions: Applications to boundary-layer separation, SIAM Journal on Applied Mathematics, 2005, 65(5), 1576-1596. doi: 10.1137/S0036139903438818 [21] M. Ghil, J.-G. Liu, C. Wang and S. Wang, Boundary-layer separation and adverse pressure gradient for 2-D viscous incompressible flow, Physica D: Nonlinear Phenomena, 2004, 197, 149-173. doi: 10.1016/j.physd.2004.06.012 [22] J. N. Hartnack, Streamlines topologies near a fixed wall using normal form, Acta Mech., 1999, 136(1), 55-75. [23] M. Heil, J. Rosso, A. L. Hazel and M. Brøns, Topological fluid mechanics of the formation of the Kármán-vortex street, J. Fluid Mech., 2017, 812, 199-221. doi: 10.1017/jfm.2016.792 [24] C. H. Hsia, J.-G. Liu, C. Wang, Structural stability and bifurcation for 2-D incompressible flows with symmetry, Methods and applications of analysis, 2008, 15(4), 495-512. doi: 10.4310/MAA.2008.v15.n4.a6 [25] J. Jiménez-Lozano and M. Sen, Streamline topologies of two-dimensional peristaltic flow and their bifurcations, Chemical Engineering and Processing: Process Intensification, 2010, 49(7), 704-715. doi: 10.1016/j.cep.2009.10.005 [26] J.-G. Liu, C. Wang and H. Johnston, A fourth order scheme for incompressible boussinesq equations, J. Sci. Comp., 2003, 18(2), 253-285. doi: 10.1023/A:1021168924020 [27] H. Luo, Q. Wang and T. Ma, A predicable condition for boundary layer separation of 2-D incompressible fluid flows, Non-linear Analysis: Real World Applications, 2015, 22(1), 336-341. [28] T. Ma and S. Wang, Interior structural bifurcation and separation of 2D incompressible flows, J. Math. Phys., 2004, 45(5), 1762-1776. doi: 10.1063/1.1689005 [29] T. Ma and S. Wang, Geometric theory of incompressible flows with applications to fluid dynamics, Mathematical Surveys and Monographs, American Mathematical Society, 2005. [30] T. Ma and S. Wang, Structural classification and stability of divergence-free vector fields, Physica D, 2002, 171, 107-126. doi: 10.1016/S0167-2789(02)00587-0 [31] T. Ma and S. Wang, Structure of 2d incompressible flows with the dirichlet boundary conditions, Discrete and Continuous Dynamical Systems-Series B, 2001, 1(1), 29-41. doi: 10.3934/dcdsb [32] T. Ma and S. Wang, Topological Phase Transitions IV: Dynamic Theory Of Boundary-layer Separations, hal-01672759, 2017. [33] Q. Wang, H. Luo and T. Ma, Boundary layer separation of 2-D incompressible dirichlet flows, Discrete and Continuous Dynamical Systems-Series B, 2015, 20(2), 675-682. doi: 10.3934/dcdsb [34] C. Wang, J.-G. Liu and H. Johnston, Analysis of a fourth order finite difference method for incompressible boussinesq equations, Numer. Math., 2004, 97(3), 255-294. -
-
Figures(12)
Export File
Citation
Ali Deliceoğlu, Deniz Bozkurt. STRUCTURAL BIFURCATION OF DIVERGENCE-FREE VECTOR FIELDS NEAR NON-SIMPLE DEGENERATE POINTS WITH SYMMETRY[J]. Journal of Applied Analysis & Computation, 2019, 9(2): 718-738. doi: 10.11948/2156-907X.20180151
Format
Content
DownLoad:
-

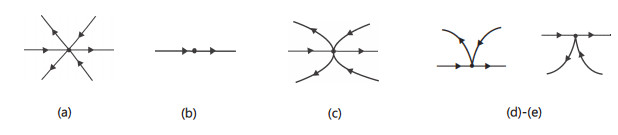

Figure 1. Index of

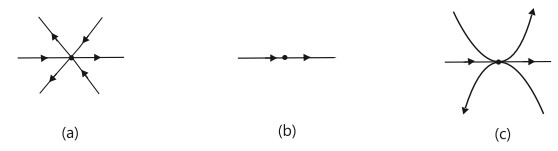

$\bf u^0$ given by (3.5) about a point$x_{0}$ with symmetry about an axis. (a) A degenerate saddle point with$ind(u^0, x_0)=-2$ for the case where$n=2$ and$\alpha \beta < 0$ ; (b) A degenerate point on the x-axis with$ind(u^0, x_0)=0$ for the case where$n$ is even and$n\geq 2$ ,$\alpha \beta >0$ ; (c) A degenerate saddle point with$ind(u^0, x_0)=-2$ for the case where$n$ is even and$n\geq 4$ ,$\alpha \beta < 0$ ; (d-e) A degenerate cusp point on the x-axis with$ind(u^0, x_0)=-1$ for the case where$n$ is odd and$n\geq 3$ . -

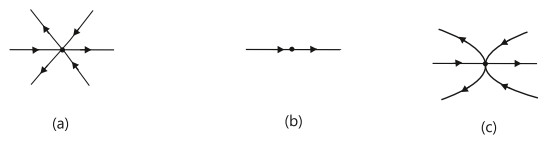

Figure 2. Index of non-simple degenerate singular points of
$\bf u^0$ given by (3.15) with double symmetry. (a) A degenerate saddle point with$ind(u^0, x_0)=-2$ for the case$k=1$ and$\alpha \beta < 0$ ; (b) A degenerate point on the x-axis with$ind(u^0, x_0)=0$ for the case$\alpha \beta >0$ ; (c) A degenerate saddle point with$ind(u^0, x_0)=-2$ for the case$k>1$ and$\alpha \beta < 0$ . -

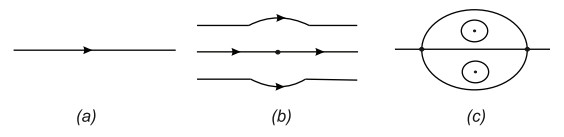

Figure 3. Index of non-simple degenerate singular points of

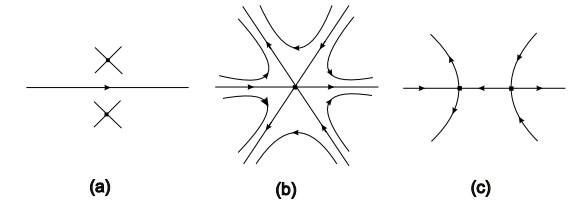

$\bf u^0$ given by (3.22) with double symmetry. (a) A degenerate saddle point with$ind(u^0, x_0)=-2$ for the case$n=1$ and$\alpha \beta < 0$ ; (b) A degenerate point on the x-axis with$ind(u^0, x_0)=0$ for the case$\alpha \beta >0$ ; (c) A degenerate saddle point with$ind(u^0, x_0)=-2$ for the case$n>1$ and$\alpha \beta < 0$ . - Figure 4. A description of the unfolding of codimension-one singularities for the case index 0 with symmetry about an axis. A similar diagram was also found by Gürcan and Deliceoğlu [15].
- Figure 5. A description of the unfolding of codimension-one singularities for the case index -2 with symmetry about an axis. A similar diagram was also found by Gürcan and Deliceoğlu [15].

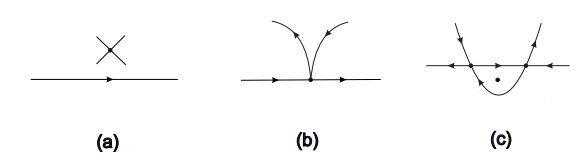

- Figure 6. Schematic illustration of the unfolding of codimension-one singularities for Theorem 4.3.

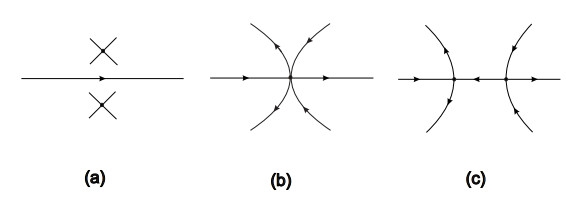

- Figure 7. Schematic illustration of the unfolding of codimension-one singularities for the case index -1 with symmetry about an axis.

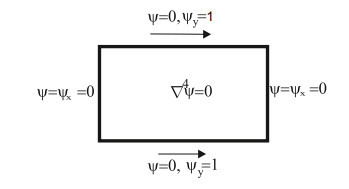

- Figure 8. The boundary value problem for the double lid-driven cavity with two solid walls.
-
Figure 9. Flow structure development found by Gürcan and Deliceoğlu ([15]) in the double lid driven cavity as
$A$ increases from$A=2.95$ to$3.45$ for$S=1$ ; (a)$A=2.95$ , (b)$A=3.225$ , (c)$A=3.45$ . -

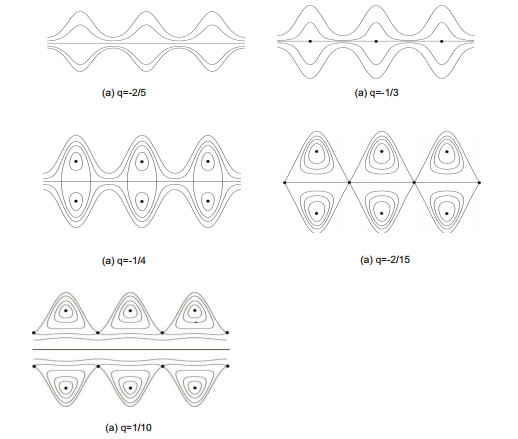

Figure 10. Streamline patters of peristaltic flow in moving frame for different values of the flow rate
$q$ with fixed amplitude ratio$\phi=0.6$ , reproduced from Ref. [25]. -

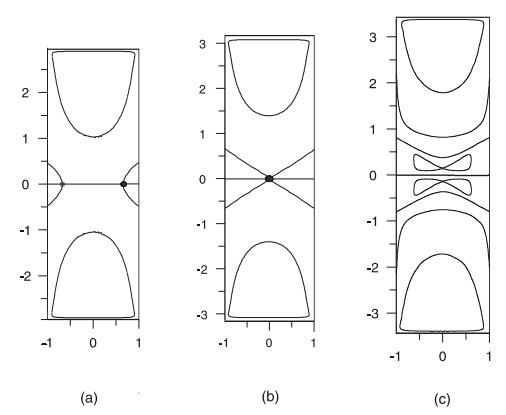

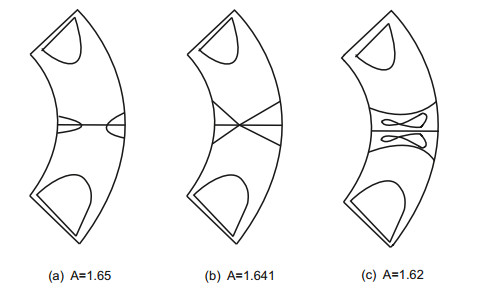

Figure 11. Illustration of flow structure in a sectorial cavity with lids moving in the same direction. (a)
$(A, S)=(1.65, 1)$ , (b)$(A, S)=(1.641, 1)$ , (c)$(A, S)=(1.62, 1)$ . -

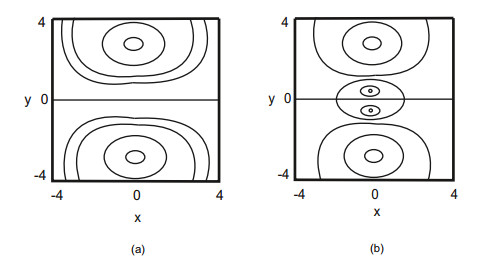

Figure 12. Instantaneous streamlines for
$D=0.01$ ,$Ha=100$ and$Re_\omega=1$ : (a)$\phi = -927 \pi /1000 $ and (b)$\phi = -752\ pi/1000 $ , reproduced from Ref. [4]
