| Citation: |
Musawenkhosi Patson Mkhatshwa, Sandile Sydney Motsa, Mekonnen Shiferaw Ayano, Precious Sibanda. OVERLAPPING MULTI-DOMAIN SPECTRAL METHOD FOR NON-DARCIAN MIXED CONVECTION CHEMICALLY REACTING FLOW OF MICROPOLAR FLUID OVER A FLAT PLATE IN A POROUS MEDIA[J]. Journal of Applied Analysis & Computation, 2021, 11(1): 113-137. doi: 10.11948/20190200
|
OVERLAPPING MULTI-DOMAIN SPECTRAL METHOD FOR NON-DARCIAN MIXED CONVECTION CHEMICALLY REACTING FLOW OF MICROPOLAR FLUID OVER A FLAT PLATE IN A POROUS MEDIA
-
Abstract
An efficient overlapping multi-domain spectral method is presented and used in the analysis of a two-dimensional steady laminar MHD mixed convection flow, heat and mass transfer over a vertical flat plate embedded in a porous medium. The effect of chemical reaction, thermal radiation, heat source/sink and other parameters influencing the flow has been analyzed by imposing magnetic force transverse to the plate in a non-Darcy porous medium with constant wall temperature and concentration conditions. The flow equations are expressed in dimensionless form and solved using overlapping multidomain bivariate spectral local linearization method (OMD-BSLLM). An analysis of the convergence and accuracy of the OMD-BSLLM is given using error norms and residual errors. Comparisons with previously published work for special cases of the problem are performed and excellent concurrence is found; hence reliable results are being presented. The influence of certain parameters on the fluid properties and flow characteristics is analyzed. The skin friction, heat and mass transfer coefficients are presented for the concentrated flow and the turbulent boundary layer flow. The flow characteristics are found to be smaller for turbulent boundary layer flows than concentrated particle flows. This type of flow has an application in catalytic and chromatographic reactions, packed absorption and distillation towers. -
-
References
[1] M. S. Ayano, Mixed convection flow of micropolar fluid over a vertical plate subject to Hall and Ion-slip currents, Int. J. Eng. Appl. Sci., 2013, 5(3), 38–52. [2] M. S. Ayano and J. S. Mathunjwa, Chemical reaction and radiation effects on unsteady MHD micropolar flow over a vertical plate with variable temperature, Front. Heat Mass Transf., 2016, 7(9). [3] E. M. Aboeldahab and E. M. E. Elbarbary, Hall current effect on magnetohydrodynamic free-convection flow past a semi-infinite vertical plate with mass transfer, Int. J. Engng. Sci., 2001, 39(14), 1641–1652. doi: 10.1016/S0020-7225(01)00020-9 [4] F. Ahmad, Effects of heat source/sink on MHD flow of micropolar fluids over a shrinking sheet with mass suction, J. Basic. Appl. Sci. Res., 2014, 4(3), 2017– 215. [5] T. Ariman, M. A. Turk and N. D. Sylvester, Micro-continuum fluid mechanics A review, Int. J. Engng. Sci., 1973, 11(8), 905. doi: 10.1016/0020-7225(73)90038-4 [6] T. Ariman, M. A. Turk and N. D. Sylvester, Applications of micro-continuum fluid mechanics, Int. J. Eng. Sci., 1974, 12(4), 273. doi: 10.1016/0020-7225(74)90059-7 [7] C. Canuto, M. Y. Hussaini, A. Quarteroni and T. Zang, Spectral Methods in Fluid Dynamics, Springer-Verlag, Berlin, 1988. [8] C. H. Chien and K. Chao, Non-Darcian mixed convection along a vertical plate embedded in a porous medium, Appl. Math. Model., 1990, 14, 482–488. doi: 10.1016/0307-904X(90)90173-3 [9] A. J. Chamkha, S. M. M. El-Kabeir and A. M. Rashid, Coupled heat and mass transfer by MHD natural convection of micropolar fluid about a truncated cone in the presence of radiation and chemical reaction, J. Nav. Archit. Mar. Eng., 2013, 10(2), 157–168. doi: 10.3329/jname.v10i2.15898 [10] A. J. Chamkha, Coupled heat and mass transfer by natural convection about a truncated cone in the presence of magnetic field and radiation effects, Numer. Heat Tr. A-Appl., 2001, 39(5), 511–530 doi: 10.1080/10407780120202 [11] A. J. Chamkha, S. M. M. EL-Kabeir and A. M. Rashad, Heat and mass transfer by non-Darcian free convection from a vertical cylinder embedded in porous media with a temperature-dependent viscosity, Int. J. Numer. Meth. Heat Fluid Flow, 2011, 21, 847–863. doi: 10.1108/09615531111162828 [12] A. J. Chamkha, S. M. M. EL-Kabeir and A. M. Rashad, Unsteady coupled heat and mass transfer by mixed convection flow of a micropolar fluid near the stagnation point on a vertical surface in the presence of radiation and chemical reaction, Prog. Comput. Fluid Dy., 2015, 15(3), 186–196. doi: 10.1504/PCFD.2015.069576 [13] A. C. Eringen, Simple microfluids, Int. J. Engng. Sci., 1964, 2, 205. doi: 10.1016/0020-7225(64)90005-9 [14] A. C. Eringen, Microcontinuum Field Theories I: Foundations and Solids, Springer-Verlag, New York, 1999. [15] A. C. Eringen, Microcontinuum Field Theories-Ⅱ: Fluent Media, Springer, New York, 2001. [16] A. C. Eringen, Theory of micropolar fluids, J. Math. Mech., 1966, 16. [17] E. M. A. Elbashbeshy, T. G. Emam and E. A. Sayed, Effect of thermal radiation on free convection flow and heat transfer over a truncated cone in presence of pressure work and heat source/sink, Therm. Sci., 2016, 20(2), 555–565. doi: 10.2298/TSCI130409006E [18] M. A. Hossain and K. Mohammad, Effect of Hall current on hydromagnetic free convection flow near an accelerated porous plate, Jpn. J. Appl. Phys., 1988, 27, 1531–1535. doi: 10.1143/JJAP.27.1531 [19] M. A. Hossain and R. I. M. A. Rashid, Hall effect on hydromagnetic free convection flow along a porous at plate with mass transfer. J. Phys. Soc. Japan, 1987, 56, 97–104. doi: 10.1143/JPSJ.56.97 [20] M. A. Hossain and H. S. Takhar, Radiation effect on mixed convection along a vertical plate with uniform surface temperature, Heat Mass Transf., 1996, 31, 243–248. doi: 10.1007/BF02328616 [21] M. Kinyanjui, J. K. Kwanza and S. M. Uppal, Magnetohydrodynamic free convection heat and mass transfer of a heat generating fluid past an impulsively started infinite vertical porous plate with Hall current and radiation absorption, Energy Convers. Manag., 2001, 42, 917–931. doi: 10.1016/S0196-8904(00)00115-1 [22] G. Lukaszewicz, Micropolar fluids-Theory and Applications, Birkhauser, Basel, 1999. [23] M. Modather, A. M. Rashad and A. J. Chamkha, An analytical study of MHD heat and mass transfer oscillatory flow of a micropolar fluid over a vertical permeable plate in a porous medium, Turkish J. Eng. Env. Sei., 2009, 33, 245–257. [24] S. R. Mishra, J. Mohanty and J. Das, Free convective flow, heat and mass transfer in a micropolar fluid over a shrinking sheet in the presence of a heat source, J. Eng. Phys. Thermophys., 2018, 91(4), 1043–1049. [25] V. M. Magagula, On the multi-domain bivariate spectral local linearisation method for solving systems of nonsimilar boundary layer partial differential equations, Int. J. Math. Math. Sci., 2019(2019), 1–18. [26] R. Muthucumaraswamy and G. S. Kumar, Heat and mass transfer effects on moving vertical plate in the presence of thermal radiation, Theoret. Appl. Mech., 2004, 31, 35–46. doi: 10.2298/TAM0401035M [27] I. Pop, The effect of Hall current on hydromagnetic flow near accelerated plate, J. Math. Phys. Sci., 1971, 5, 375–379. [28] P. Ranganathan and R. Viskanta, Mixed convection boundary layer flow along a vertical porous medium, Numer. Heat Transf., 1984, 7, 305–317. [29] A. Raptis and P. C. Ram, Effects of Hall current and rotation, Astrophys. Space Sci., 1984, 106(2), 257–264. doi: 10.1007/BF00650353 [30] A. M. Rashad, Ali J. Chamkha and S. M. M. EL-Kabeir, Effects of radiation and chemical reaction on heat and mass transfer by natural convection in a micropolar fluid-saturated porous medium with streamwise temperature and species concentration variations, Heat Transf. Res., 2014, 45(8), 795–815. doi: 10.1615/HeatTransRes.2014006568 [31] A. M. Rashad, S. Abbasbandy and A. J. Chamkha, Mixed convection flow of a micropolar fluid over a continuously moving vertical surface immersed in a thermally and solutally stratified medium with chemical reaction, J. Taiwan Inst. Chem. Eng., 2014, 45(5), 2163–2169. doi: 10.1016/j.jtice.2014.07.002 [32] A. M. Rashad and S. M. M. EL-Kabeir, Heat and mass transfer in transient flow by mixed convection boundary layer over a stretching sheet embedded in a porous medium with chemically reactive species, J. Porous Media, 2010, 13(1), 75–85. doi: 10.1615/JPorMedia.v13.i1.70 [33] D. U. Srinivasacharya and U. Mendu, Free convection in MHD micropolar fluid with radiation and chemical reaction effect, Chem. Ind. Chem. Eng. Q., 2014, 20(2), 183–195. doi: 10.2298/CICEQ120516121S [34] L. N. Trefethen, Spectral Methods in Matlab, SIAM Philadelphia, 2000. [35] K. Vafai and C. L. Tien, Boundary and inertia effects on flow and heat transfer in porous media, Int. J. Heat Mass Transf., 1981, 24, 195–203. doi: 10.1016/0017-9310(81)90027-2 [36] K. A. Yih, Effect of radiation on natural convection about a truncated cone, Int. J. Heat Mass Transf., 1999, 42(23), 4299–4305. doi: 10.1016/S0017-9310(99)00092-7 -
-
Figures(15) / Tables(4)
Export File
Citation
Musawenkhosi Patson Mkhatshwa, Sandile Sydney Motsa, Mekonnen Shiferaw Ayano, Precious Sibanda. OVERLAPPING MULTI-DOMAIN SPECTRAL METHOD FOR NON-DARCIAN MIXED CONVECTION CHEMICALLY REACTING FLOW OF MICROPOLAR FLUID OVER A FLAT PLATE IN A POROUS MEDIA[J]. Journal of Applied Analysis & Computation, 2021, 11(1): 113-137. doi: 10.11948/20190200
Format
Content
DownLoad:

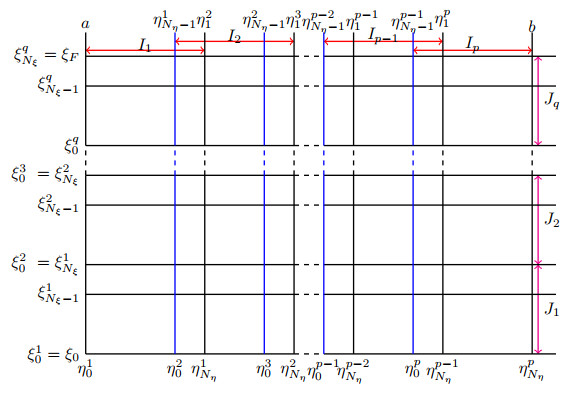

- Figure 1. Overlapping and non-overlapping grid

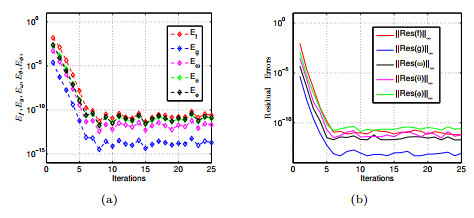

- Figure 2. Error norms and residual errors against the number of iterations
-

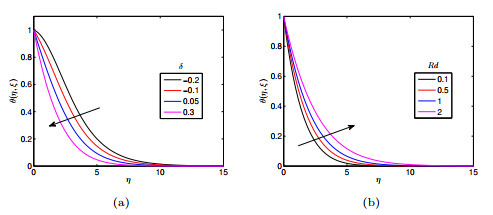

Figure 3. Effect of
$ \delta $ and$ Rd $ on temperature -

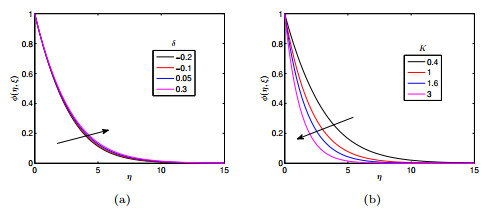

Figure 4. Effect of
$ \delta $ and$ K $ on concentration -

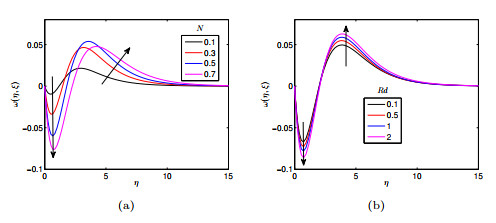

Figure 5. Effect of
$ N $ and$ Rd $ on microrotation -

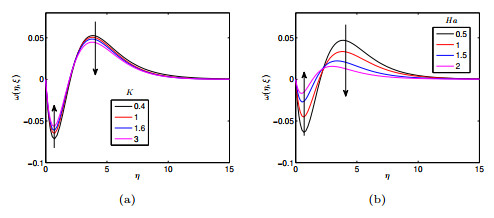

Figure 6. Effect of
$ K $ and$ Ha $ on microrotation -

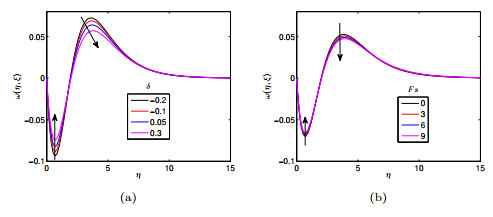

Figure 7. Effect of
$ \delta $ and$ Fs $ on microrotation -

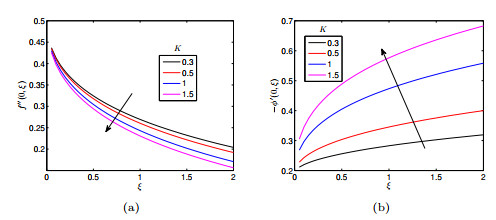

Figure 8. Effect of
$ K $ on skin friction and Sherwood number -

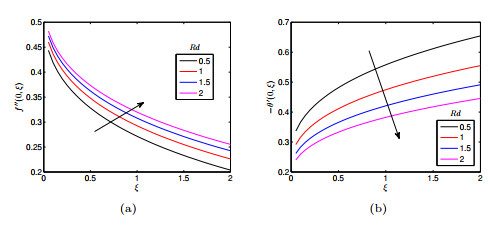

Figure 9. Effetc of
$ Rd $ on skin friction and Nusselt number -

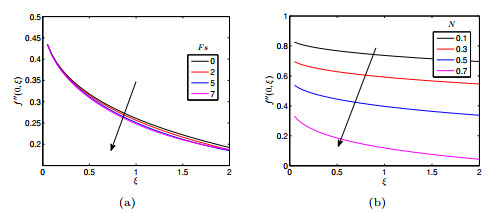

Figure 10. Effect of
$ Fs $ and$ N $ on skin friction -

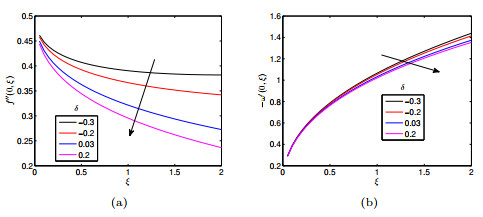

Figure 11. Effect of
$ \delta $ on skin friction and wall couple stress -

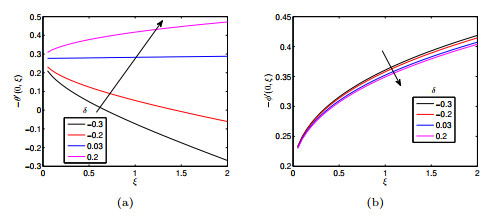

Figure 12. Effect of
$ \delta $ on Nusselt number and Sherwood number -
Figure 13. Effect of
$ Rd $ and$ N $ on wall couple stress -

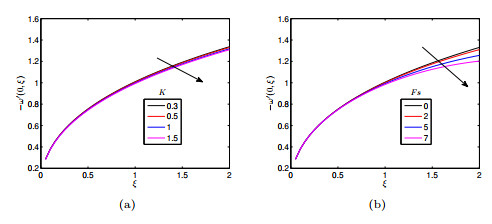

Figure 14. Effetc of
$ K $ and$ Fs $ on wall couple stress -

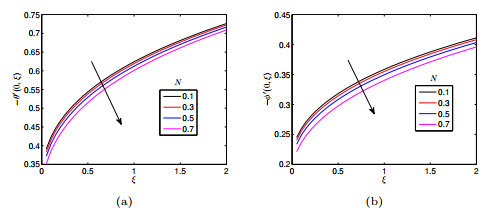

Figure 15. Effect of
$ N $ on Nusselt Number and Sherwood number
